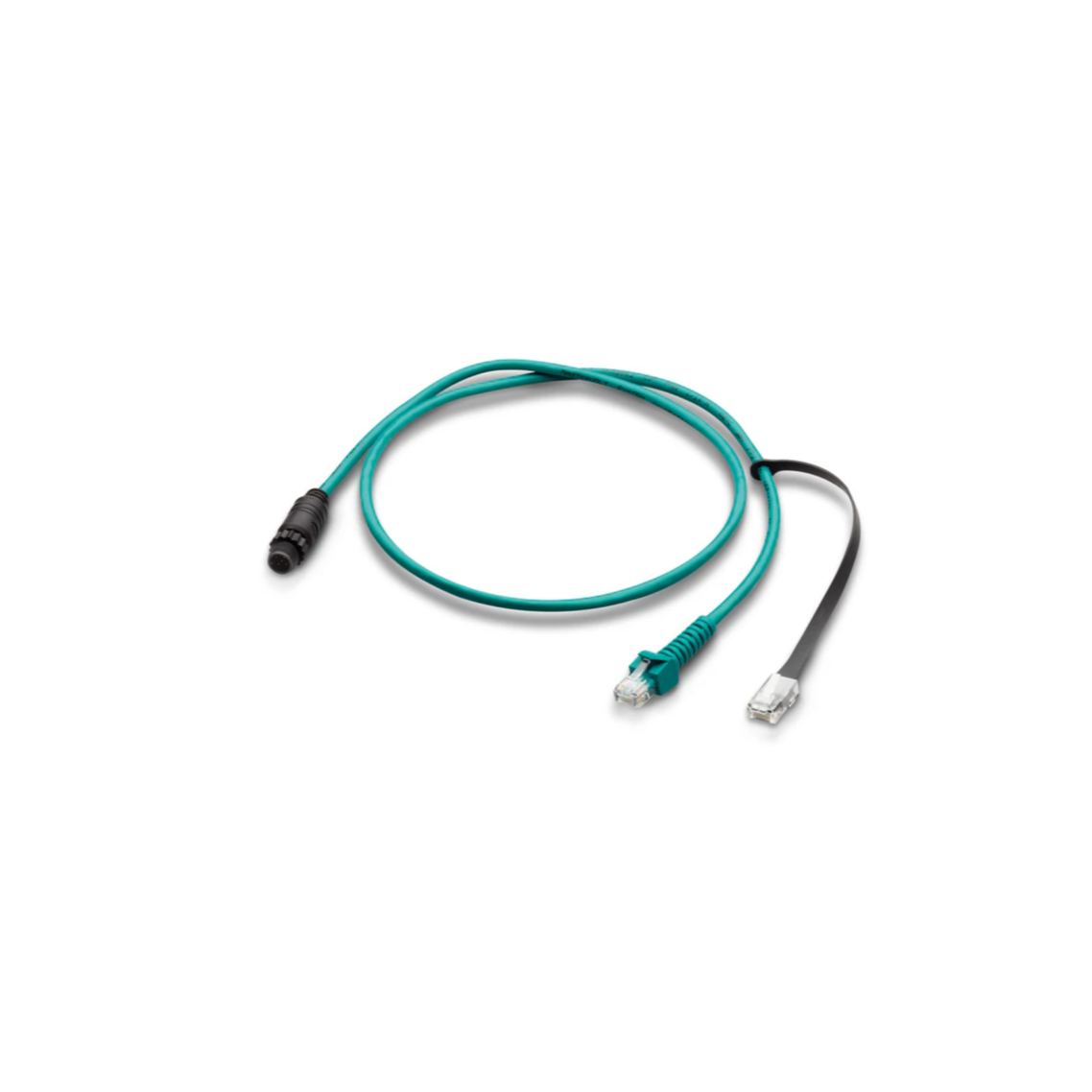

Mastervolt to CZone Drop Cables
Mastervolt to CZone Drop Cables
SKU:MVT77060100
Many Mastervolt products can be configured as a CZone device or a Masterbus device. Since CZone communicates on a NMEA 2000 backbone you will need to connect Mastervolt's RJ45 port to a NMEA 2000 connection. These cables are an adapter that does just that.
These drop cables are also required for connecting a USB interface PN 77030100 to program a CZone network.
Specifications
Specifications
Mastervolt RJ45 to CZone NMEA 2000 Female connector
Installation Details
Installation Details
Designed to go into a NMEA 2000 Tee as a drop cable
NMEA 2000 network must be powered and properly terminated for connected device to function.
Pelagic Power Tip
Pelagic Power Tip

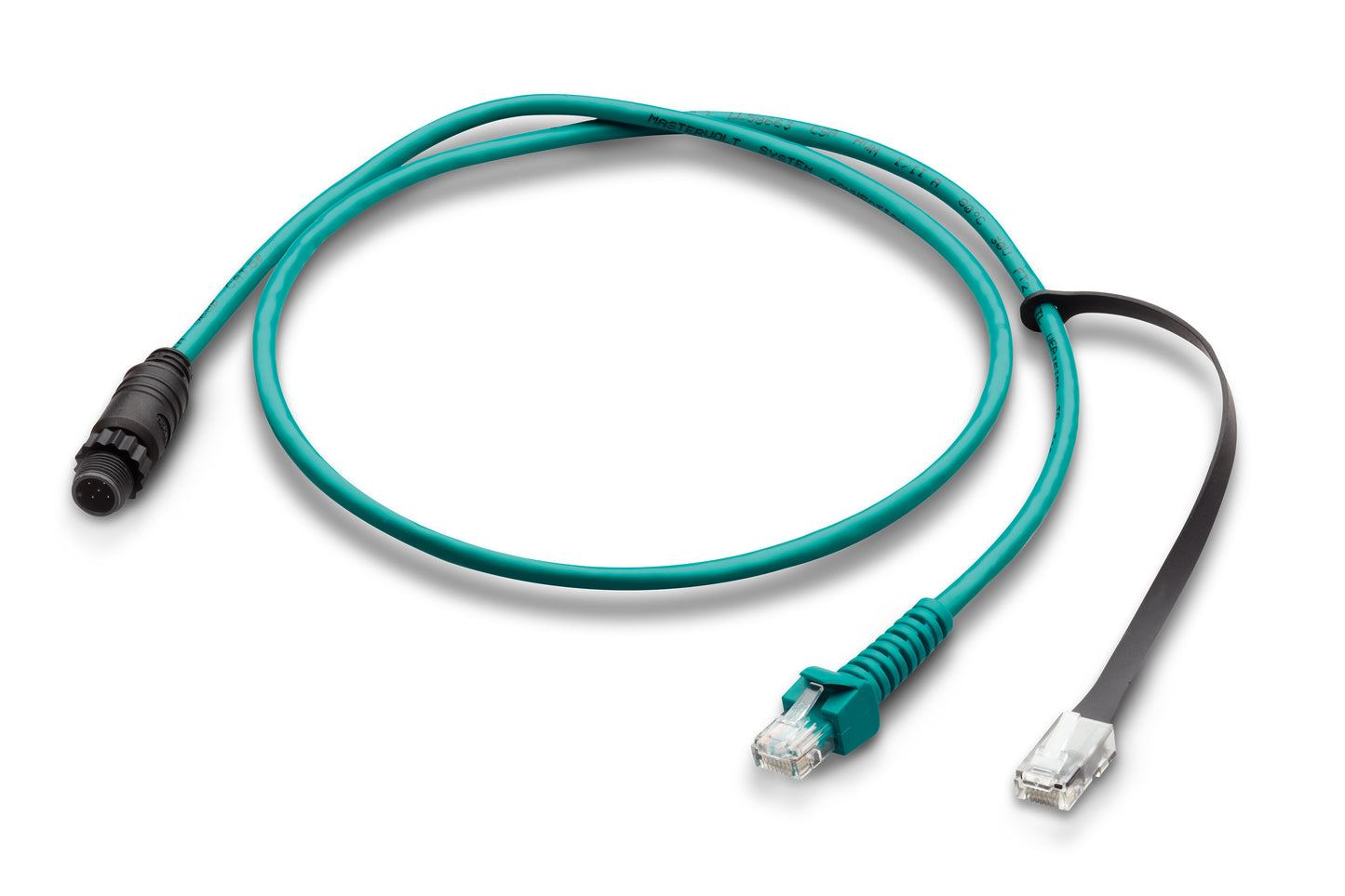

Since all Mastervolt products that communicate have RJ45 ports there needed to be an adapter to NMEA 2000. To use simply connect the teal RJ45 end into either RJ45 port on the Mastervolt product. The dangling, black RJ45 should be placed into the second RJ45 port of the same Mastervolt product. Then connect the NMEA 2000 connector into a properly powered and terminated NMEA 2000 network.
These cables are required for programming CZone networks with the USB interface tool PN 77030100.
