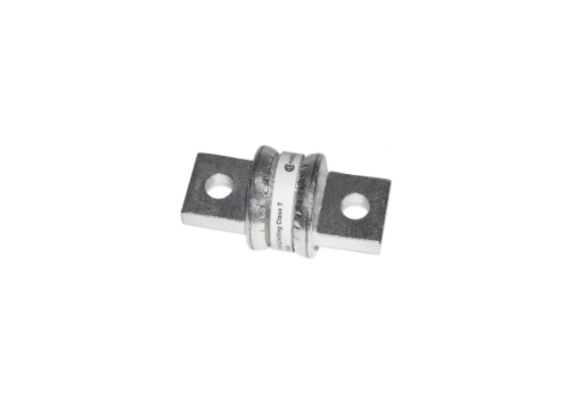

Class T Fuse - 250A to 400A
Class T Fuse - 250A to 400A
SKU:BSS5118
- One of the fastest acting fuses in the industry
- Recommended for inverter and lithium battery installs
- Also used as main battery circuit protection fuse
- 1 Fuse per order. Select amperage size below
- 20,000A Interrupt Capacity (AIC)
Don't forget the fuse block: Shop Here
Specifications
Specifications
125V DC Max (No AC)
20,000A AIC

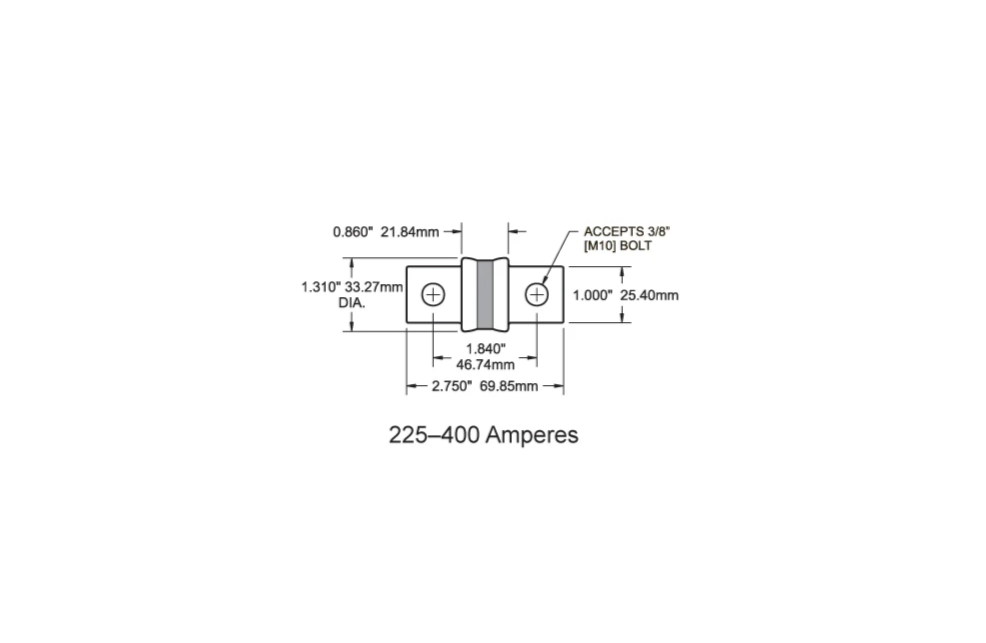

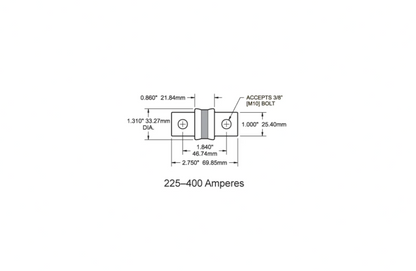

Installation Details
Installation Details
Stud Size: 3/8in (M10)
Hole Centers: 1.84in (46.74mm)
Fits Class T Fuse Block 225A-400A (SKU BSS5502) - not included
Pelagic Power Tip
Pelagic Power Tip
All fuses and circuit breakers have an additional rating beyond just their trip amp rating. This additional rating is know as Amperage Interrupt Capacity (AIC).
Amperage Interrupt Capacity (AIC) is the maximum amperage rating that a fuse will safely disconnect during a short circuit event. The higher the number the larger the battery bank the fuse can be used to protect. The Class T fuse is rated at 20,000A AIC which is the highest rating we sell. Which is why Class T is ideal for lithium battery systems and inverters where large battery banks are common.
