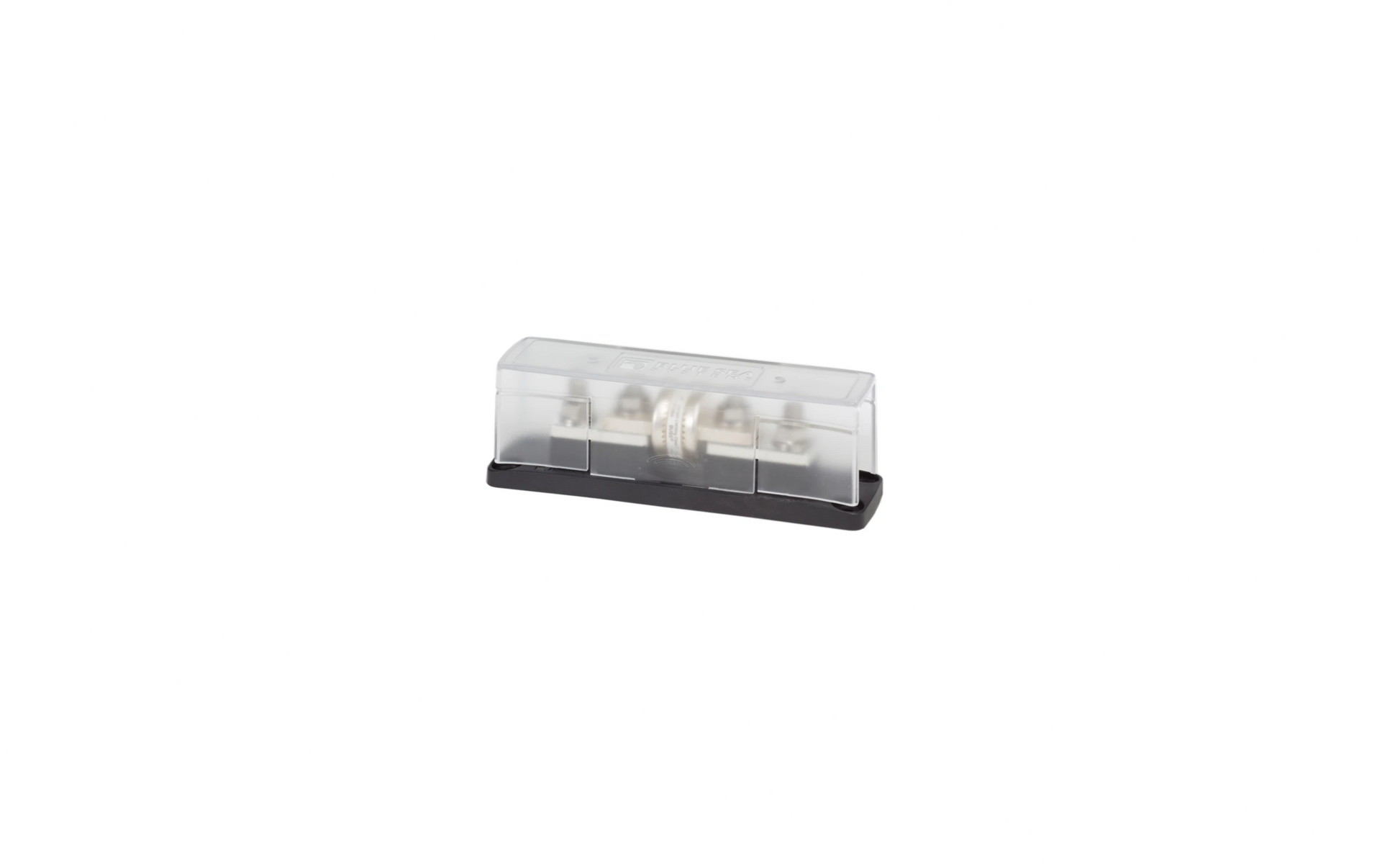

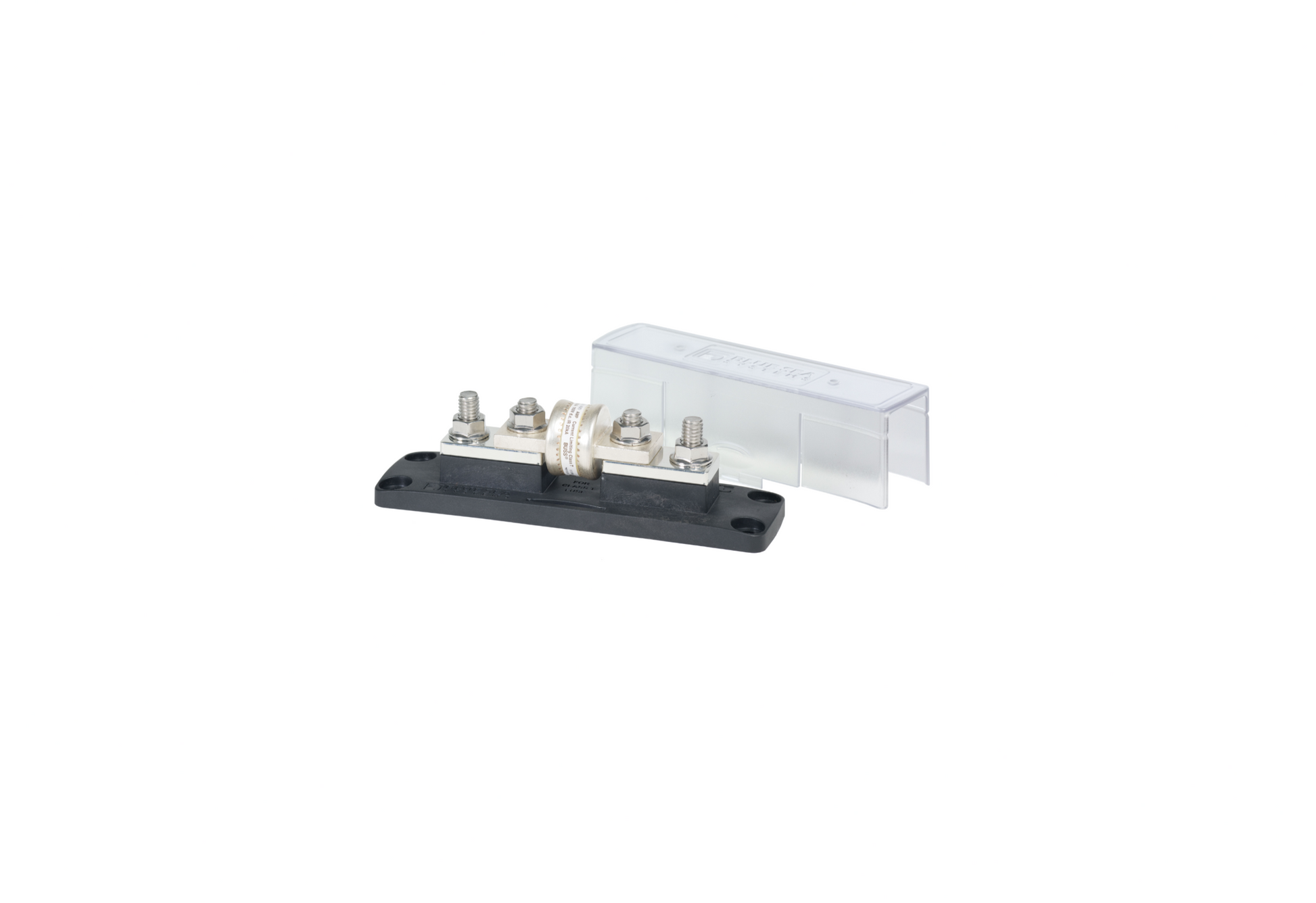

Blue Sea Systems 5502 Class T Fuse Block with Cover - 225A to 400A

Blue Sea Systems 5502 Class T Fuse Block with Cover - 225A to 400A

BSS5502

$45.99 USD
$45.99 USD
Sale Sold out
  • Class T fuse block PN 5502 from Blue Sea Systems
  • Accepts Class T fuse sizes 225A to 400A
  • Class T fuse is a critical fuse required by manufacturers as the circuit protection for Inverter and lithium battery installs. Also an ideal fuse for main house bank circuit protection
  • Fuse block made of tin plated copper
  • Stainless steel studs are swedged into the copper bus to ensure no loosening or resistance
  • Snap on cover included with label recess
  • Fuse block only. Fuses and labels sold separately

Don't Forget The Fuses: Shop Here

Specifications

Max Continuous Amperage: 400A
Max Voltage: 160V DC (No AC)
Ignition Protected: No

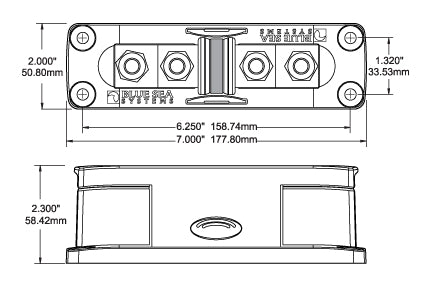

Installation Details

Ring Terminal Size: 3/8in (M10)
Max Wire Size: 4/0 AWG
Mounting Hole Count: 4
Mounting Hole Size: 1/4in (M6)
Max Stud Torque: 190in-lb (21Nm)

Pelagic Power Tip

Class T fuses do not have a visible indication of blown status. Test the status by using the continuity setting on a multi-meter. Place a probe on either size of the fuse or fuse block. If you see 0 ohm resistance, or hear the audible continuity noise, your fuse is good.
