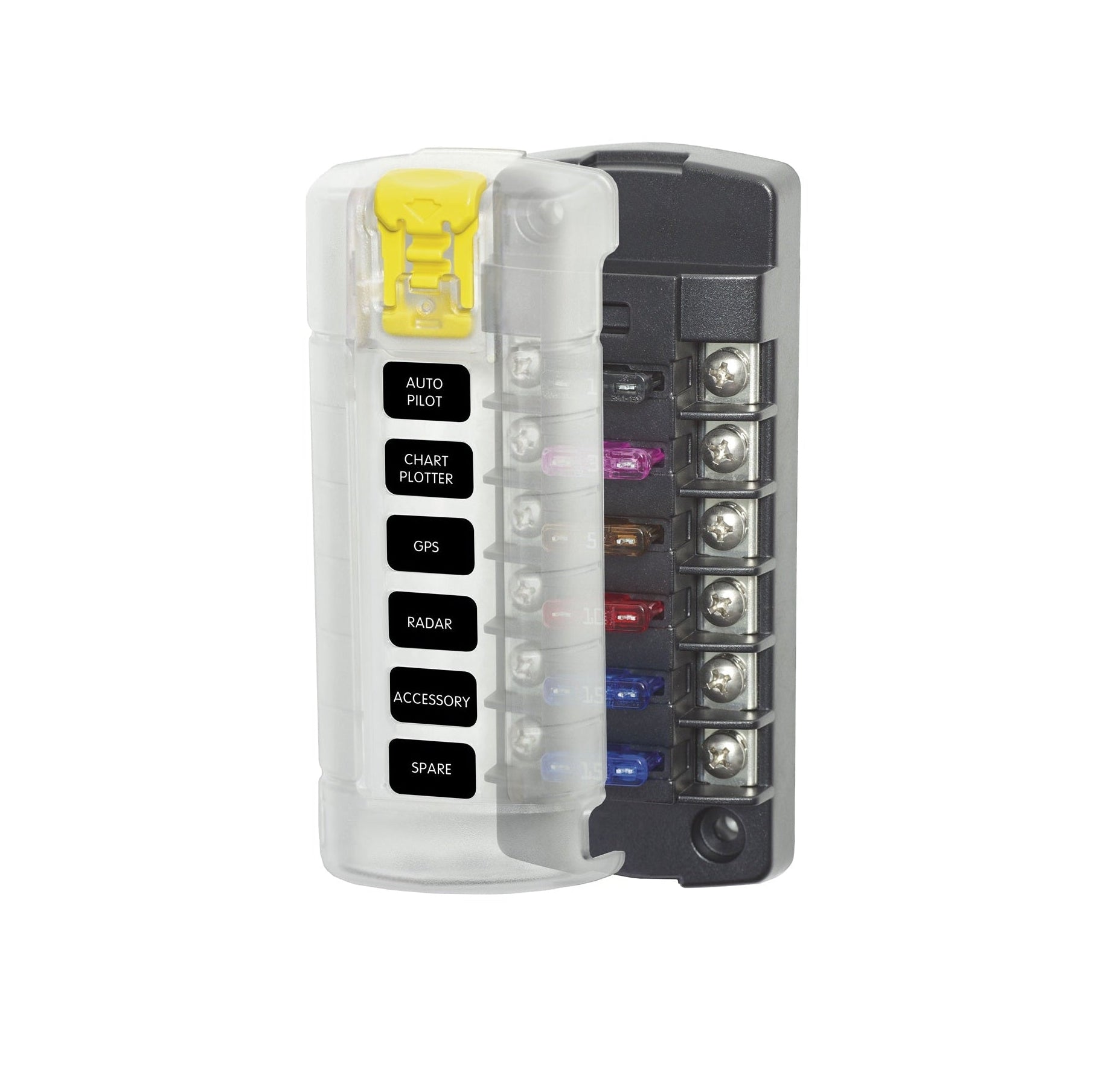

Blue Sea Systems 5035 ST Blade ATO/ATC Fuse Block 6 Circuit with Cover
Blue Sea Systems 5035 ST Blade ATO/ATC Fuse Block 6 Circuit with Cover
SKU:BSS5035
- 6 circuit fuse block accepts ATO/ATC fuses
- Positive connection stud feeds power through up to 6 fuse positions
- Includes 2 terminal jumpers, allowing merging of different individual blocks to one parallel

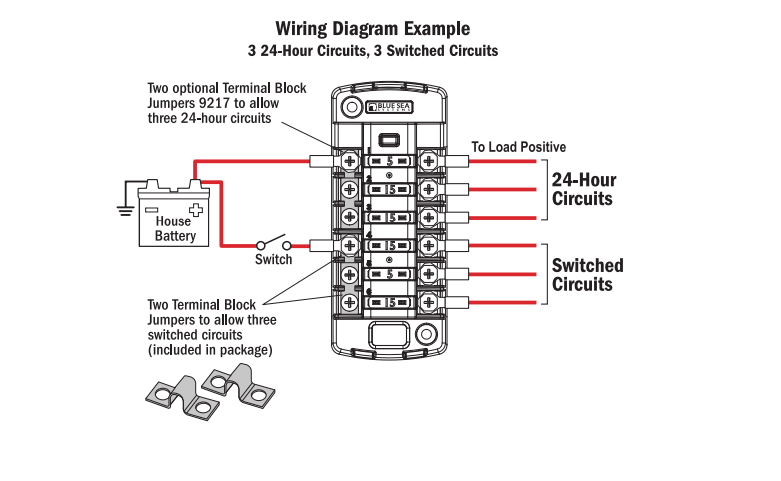

- Jumpers allow fuse block to accept separate switched and 24 hour circuits
- Screw terminal design with captive locking star washers
- Clear insulating cover with label recesses accepts Small Format Labels
- Tin plated copper bus bars and fuse clips
- Includes cover and 20 write on labels
- Cover holds spare fuse
- Fuses not included
Specifications
Specifications
Max Amps: 30A per circuit, 40A total per jumped circuit
Max Voltage: 32V DC

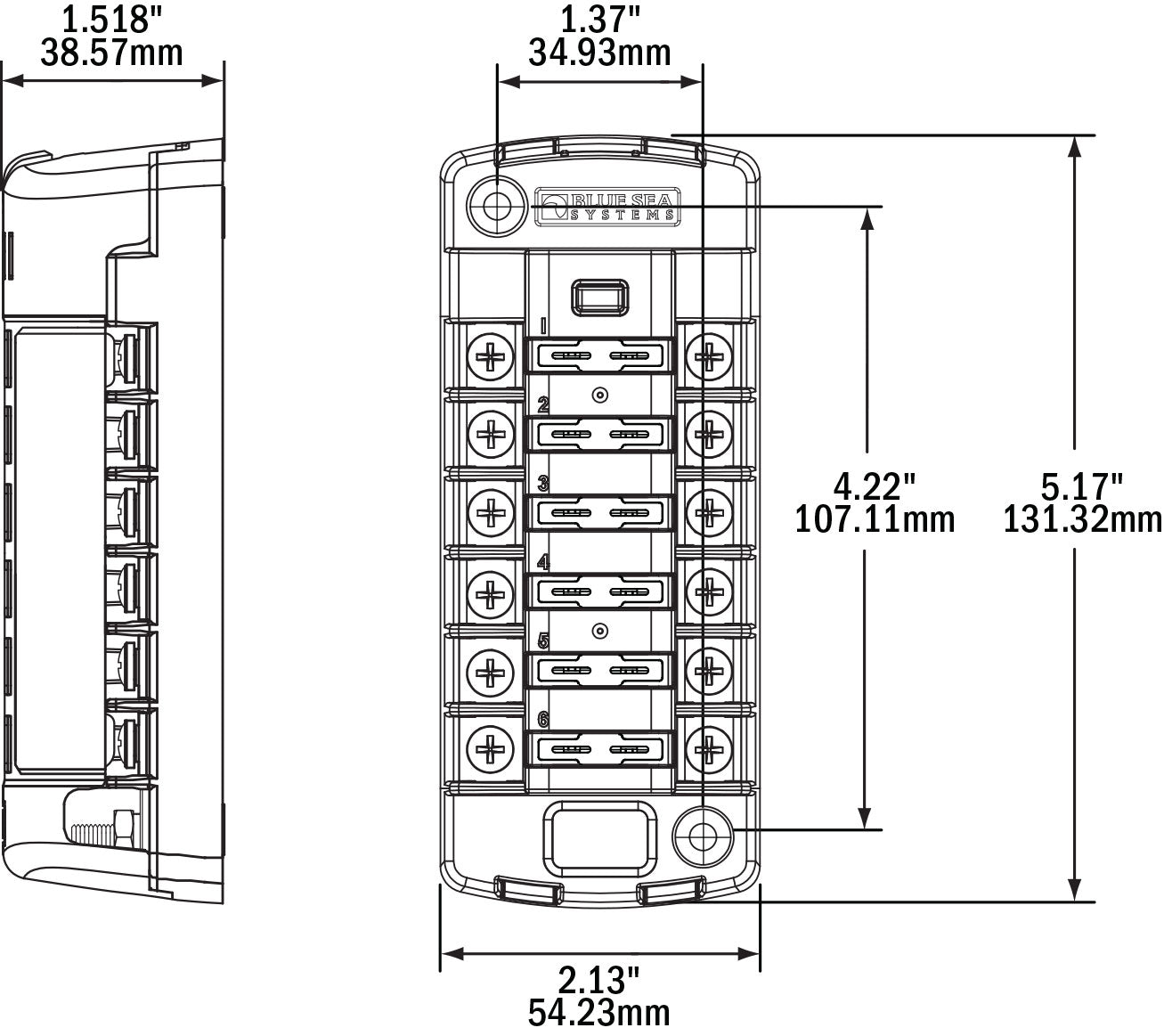

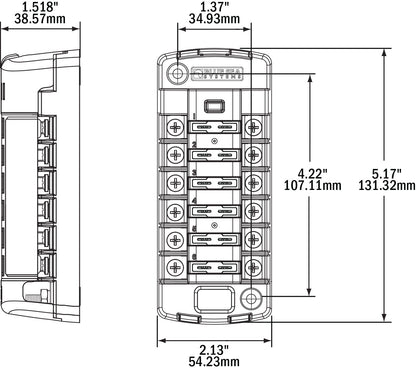

Installation Details
Installation Details
Positive Stud Ring Terminal: #10
Negative Stud Ring Terminal: #10
Screw Terminal Size: #8
Mounting Screw Holes: 4
Mounting Screw Size: #8
Pelagic Power Tip
Pelagic Power Tip
Did you know that ABYC requires that fuses require over 7 pounds of pressure to be removed from a fuse holder? This requirement is in place because as current runs through a fuse holder the fuse element creates heat. The fuse holder will warm up and the metal clips will relax. So by having a 7 pound requirement any warming will not allow the fuse to vibrate loose.
The ST Blade fuse block family is designed to this standard with proprietary fuse holder clips that are pre-heated. Kind of like a pre-shrunk cotton T shirt. This is a driving reason why the ST Blade family is one of the world's most trusted fuse blocks in the harshest environments.
