Blue Sea Systems 5032 ST Blade ATO/ATC Fuse Block 12 Circuit Split Bus with Cover
Blue Sea Systems 5032 ST Blade ATO/ATC Fuse Block 12 Circuit Split Bus with Cover
SKU:BSS5032
- Split bus 12 circuit fuse block accepts ATO/ATC fuses

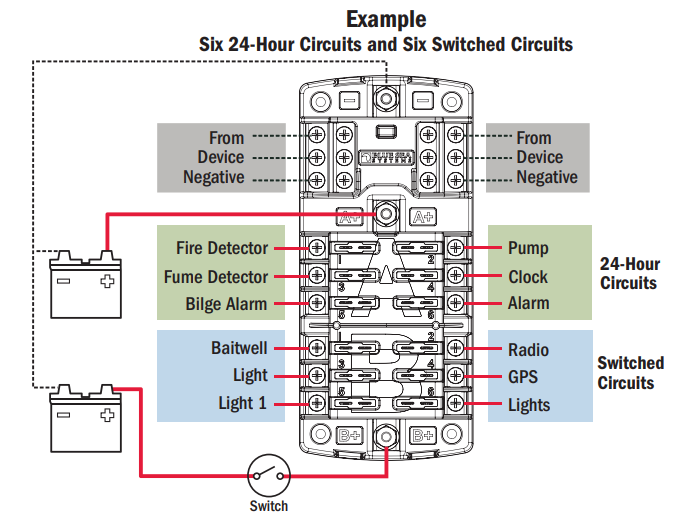

- 2 positive bus inputs, 6 circuits per bus
- Top "A" connection feeds power through upper 6 circuits
- Bottom "B" connection feeds power through bottom 6 circuits
- Integrated common ground bus for 12 negative wires
- Screw terminal design with captive locking star washers
- Tin plated copper bus bars and fuse clips
- Includes cover and 20 write on labels
- Cover holds 2 spare fuses
- Included fuse removal tool
- Fuses not included
Specifications
Specifications
Max Amps: 100A per block, 30A per circuit
Max Volts: 32V DC (No AC)

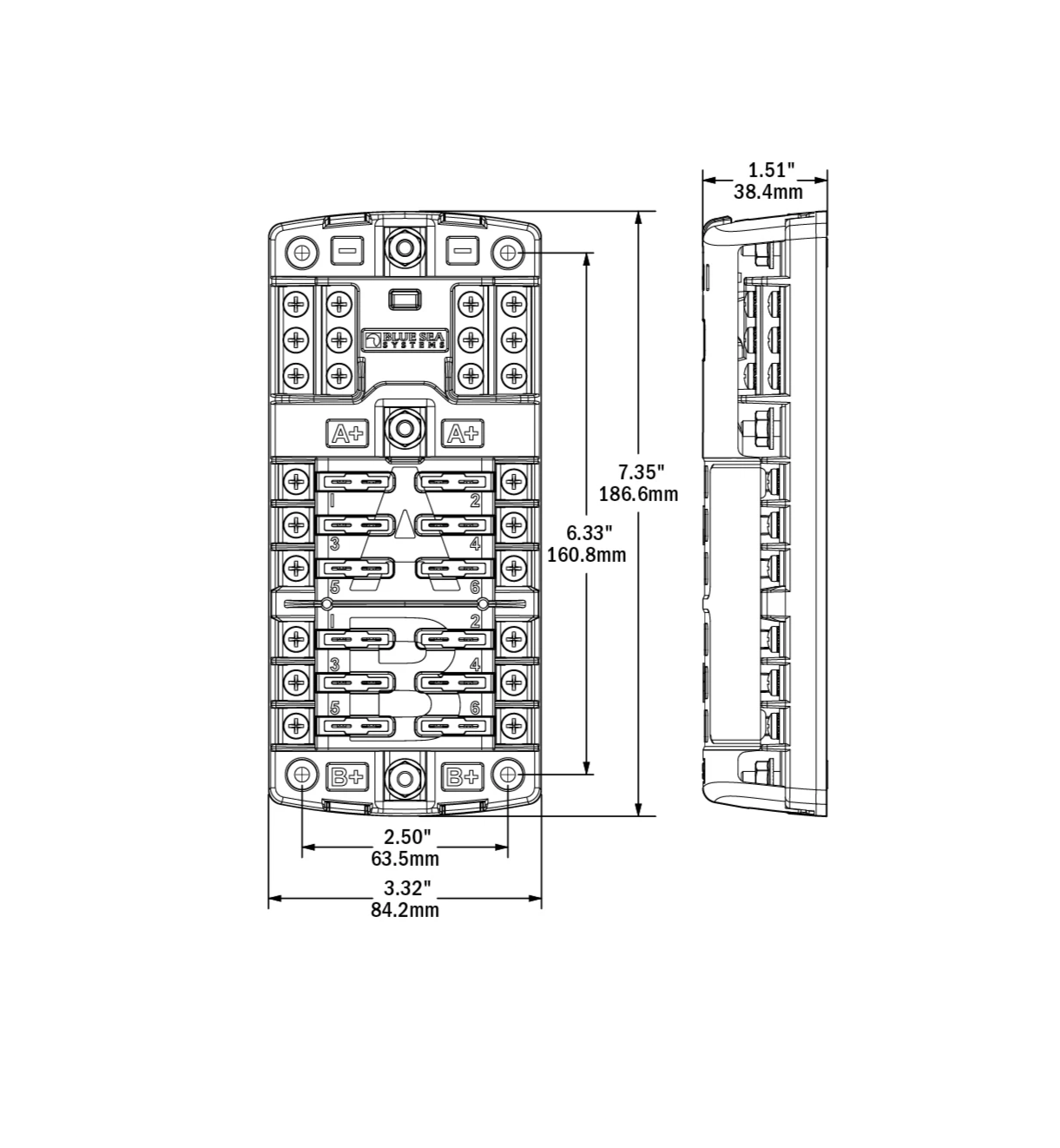

Installation Details
Installation Details
Positive Studs Ring Terminal: #10
Negative Stud Ring Terminal: #10
Screw Terminal Size: #8
Mounting Screw Holes: 4
Mounting Screw Size: #8
Pelagic Power Tip
Pelagic Power Tip
Did you know that ABYC requires that fuses require over 7 pounds of pressure to be removed from a fuse holder? This requirement is in place because as current runs through a fuse holder the fuse element creates heat. The fuse holder will warm up and the metal clips will relax. So by having a 7 pound requirement any warming will not allow the fuse to vibrate loose.
The ST Blade fuse block family is designed to this standard with proprietary fuse holder clips that are pre-heated. Kind of like a pre-shrunk cotton T shirt. This is a driving reason why the ST Blade family is one of the world's most trusted fuse blocks in the harshest environments.
