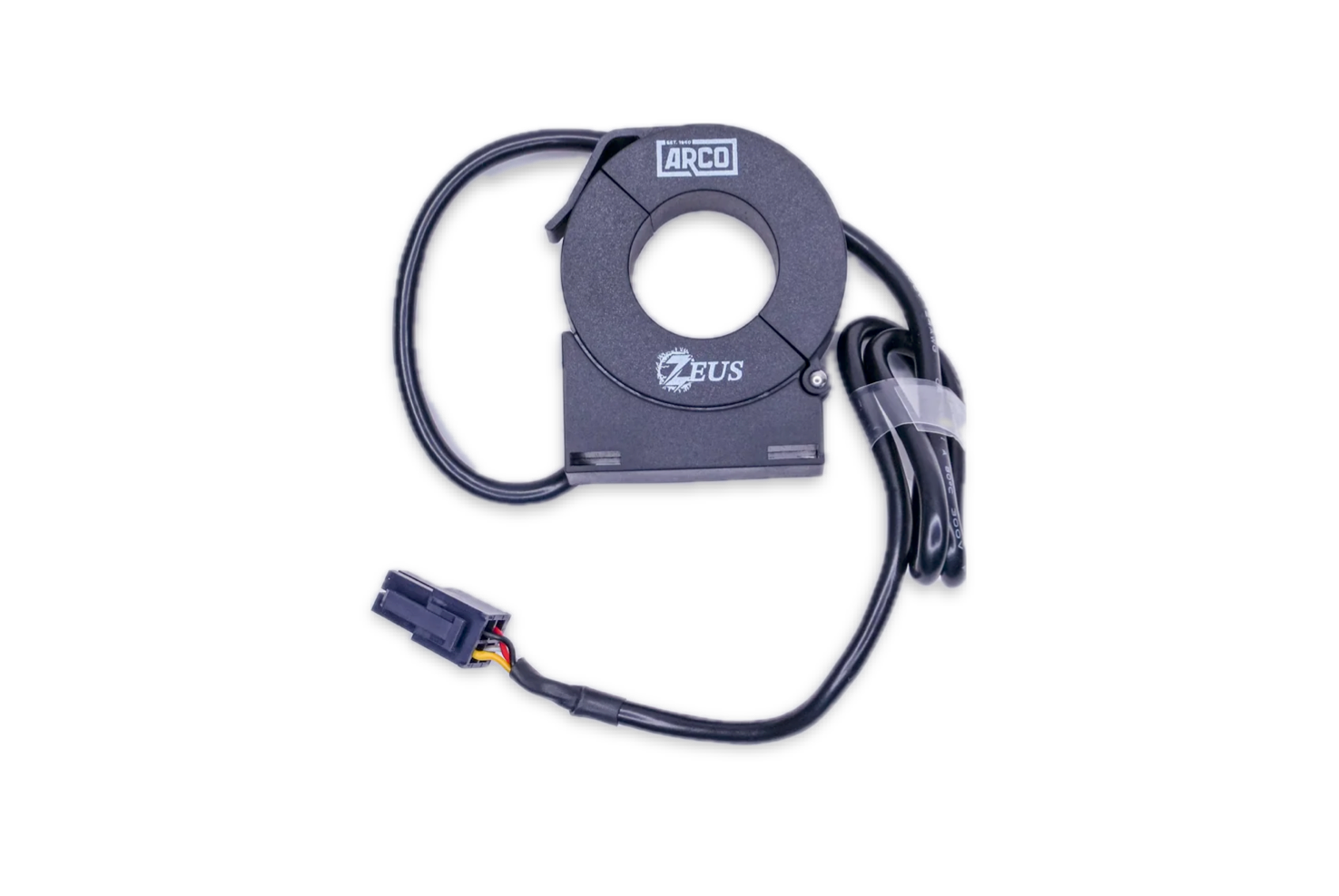

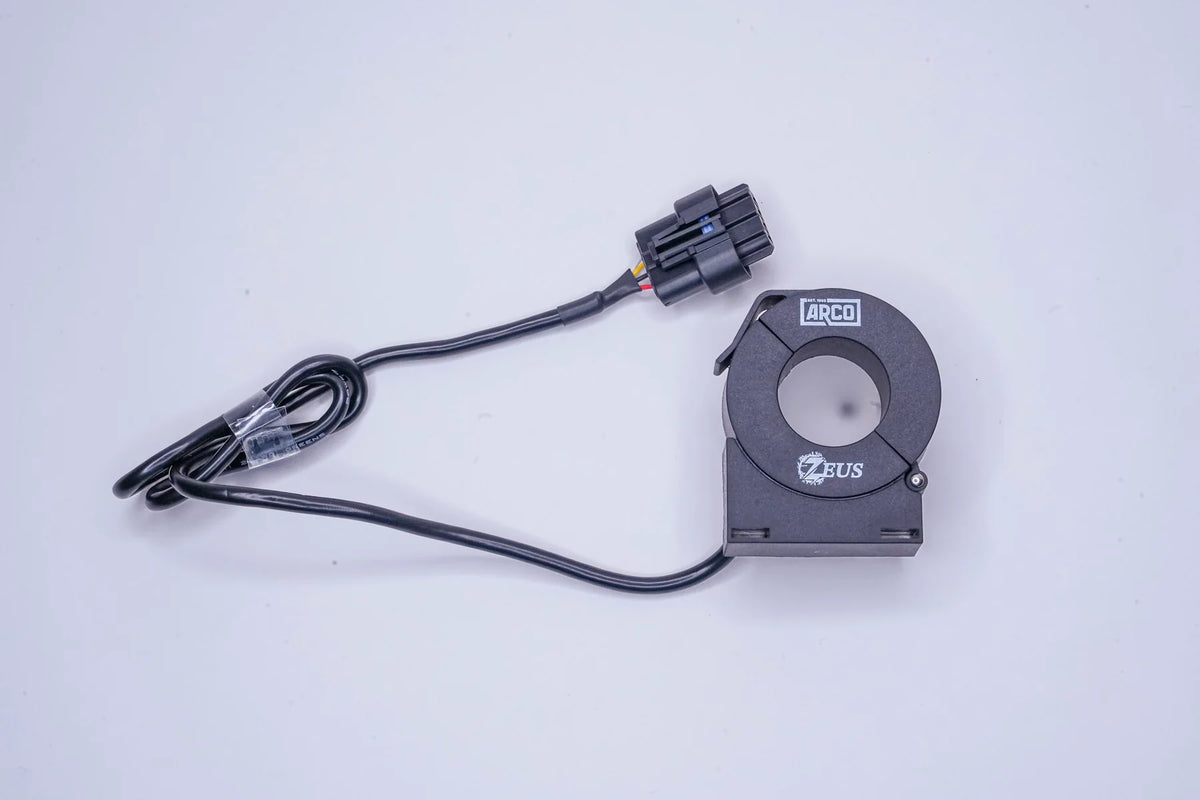

Zeus Omega Hall Effect Sensor — Control Module A2240

Electrical & Operational SpecificationsVoltage Compatibility: Supports 12V, 24V, 36V, and 48V native architectures.Measurement Type: Contactless, non-intrusive magnetic Hall Effect sensing.Target Metric: Total system net current (amperage going in and out of the main battery bank).Power Source: Bus-powered directly through the module's connection interface.Mechanical & Physical SpecificationsInstallation Style: Split-core loop / clip-on design (requires no wire-cutting or traditional shunt fracturing).Connection Interface: Dedicated plug-and-play connector designed exclusively for the Zeus Omega Control Module (AZCM).Environmental Resistance: Marine-grade construction built to withstand engine room or battery compartment moisture.Data & System MetricsSampling Type: Real-time data delivery.App Telemetry: Generates continuous State of Charge (SOC), net current draw, and power storage diagnostics.System Limits: Fully supports scaling into complex, multi-alternator systems when bridged alongside the companion alternator-side sensor (A2240).

Installation of the Zeus Omega Hall Effect Sensor — Control Module (AZHSCM) is a straightforward process because it requires no cutting, stripping, or heavy terminal modifications.1. Preparation & SafetyPower Down: Turn off the main battery switch or disconnect the negative terminals before handling your power wires.Locate the Cable: Identify the main battery bank cable that handles all the incoming and outgoing current.2. Physical PlacementOrient the Sensor: Look for the direction/orientation markings on the plastic sensor housing to align properly with the flow of current.Clip the Loop: Open the split-core sensor loop, place it cleanly over the main battery cable, and snap it securely shut.Secure the Unit: Confirm that the sensor sits flat and cannot slide down the cable or rattle against adjacent hardware.3. Wiring ConnectionsRoute the Harness: Guide the pre-terminated sensor wire back to your central Zeus Omega Control Module (AZCM).Avoid Heat: Keep the data wire clear of hot exhaust parts, sharp edges, and high-frequency interference lines.Plug Into Module: Push the dedicated quick-connect plug straight into the labeled sensor port on the AZCM casing.4. Software SetupTurn Power On: Reconnect the main battery switches to power up the module network.Open the App: Fire up the ARCO mobile app on your smartphone or tablet via Bluetooth.Calibrate Sensor: Navigate to the system hardware settings menu, enable the newly connected Control Module shunt/sensor, and confirm that live current values read accurately.
