Zeus Omega AZ CAN Cable — M12 5P DeviceNet WH2105

Zeus Omega AZ CAN Cable — M12 5P DeviceNet WH2105

WH2105

$41.00 USD
$41.00 USD
Sale Sold out
Shipping calculated at checkout.

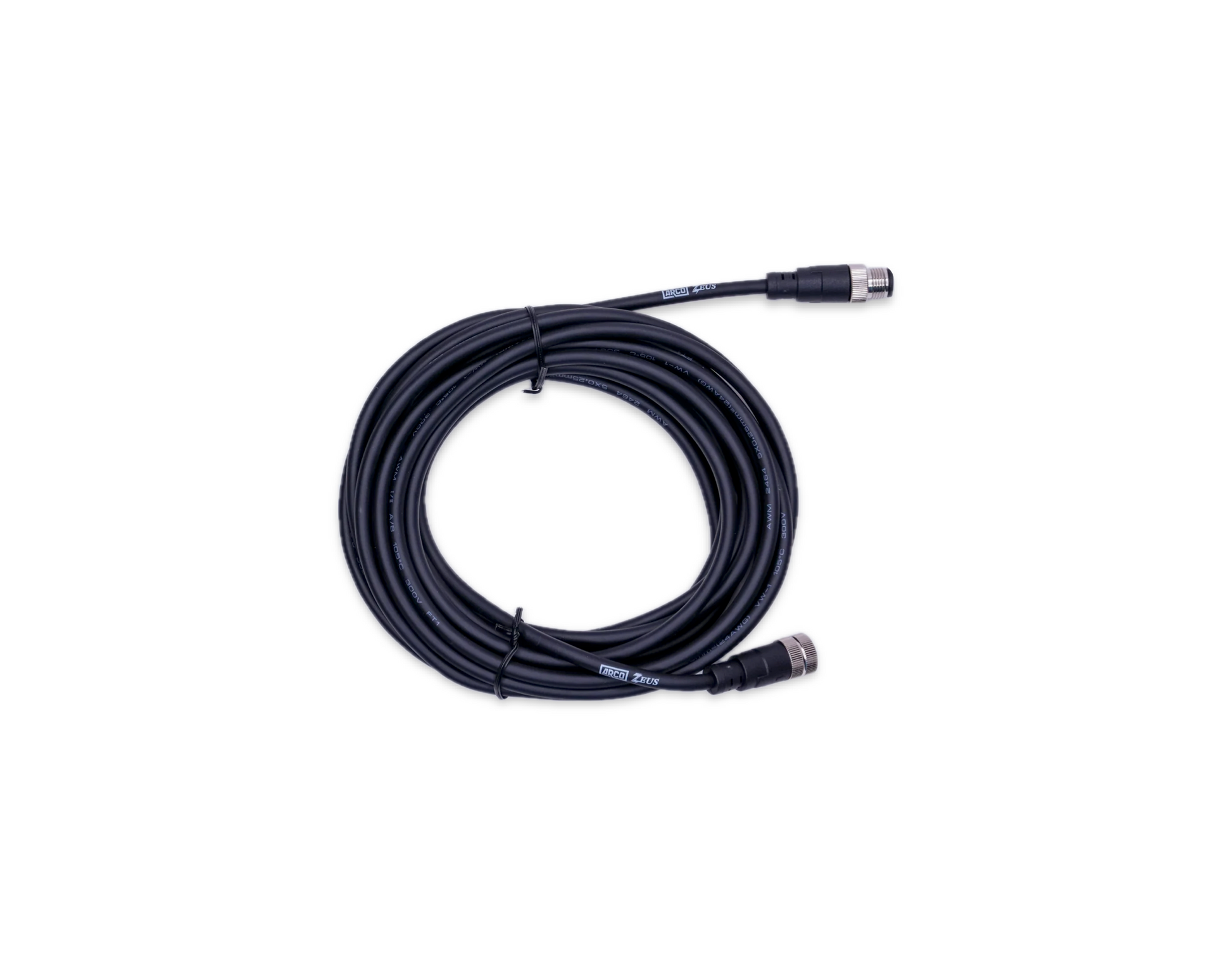

The Zeus Omega AZ CAN Cable (WH2105) is a heavy-duty, marine-grade data link designed exclusively for the Zeus Omega Alternator Control System. It provides the essential, high-speed communication backbone between the central Control Module and the Alternator Drive Module (ADM), allowing the system to monitor and regulate advanced multi-stage alternator charging in real time.

Design and Build Quality
  • Standardized Architecture: Built on the global DeviceNet and NMEA 2000 standard to ensure reliable data transmission in harsh environments.
  • M12 Connectors: Features rugged 5-pin M12 circular connectors with integrated locking collars that seal out moisture, salt air, and oil.
  • Marine-Grade Shielding: Formulated with internal shielding to isolate delicate digital CAN bus signals from heavy electromagnetic interference (EMI) typical in engine rooms.
  • Fixed Length: Delivered at a generous 5-meter (approx. 16-foot) length to easily span the distance between battery banks, bulkheads, and engine mounts.

System Compatibility
While optimized as a plug-and-play component for the Zeus Omega ecosystem, its universal architecture allows it to interface seamlessly with standard marine networks. If an installation requires a longer run, its non-proprietary engineering means it can be extended or replaced using any high-quality, off-the-shelf NMEA 2000 cabling.
Are you looking into this cable for a new electrical system layout, or are you trying to resolve an interference issue on your current boat network?

Specifications

SpecificationsTechnical DataPart Number: WH2105Manufacturer: ARCO MarineCable Length: 5 meters (16.4 feet)Connector Type: M12 5-Pin (A-coded)Protocol Standard: DeviceNet / NMEA 2000 (N2K) compliantApplication: Connects Zeus Omega Control Module to Alternator Drive Module (ADM)Wiring Pinout (Standard DeviceNet)Pin 1: Shield (Bare)Pin 2: V+ / Power (Red)Pin 3: V- / Ground (Black)Pin 4: CAN High (White)Pin 5: CAN Low (Blue)

Installation Details

Installation InstructionsStep 1: Route the CableRoute the cable between the Zeus Control Module and the Alternator Drive Module.Avoid running parallel to high-amp DC cables or AC wiring.Keep away from sharp edges, hot exhaust manifolds, and moving engine parts.Step 2: Establish the ConnectionAlign the keyway slot of the M12 connector with the module receptacle.Push the connector straight into the plug port.Hand-tighten the threaded locking collar until snug.Do not use pliers, wrenches, or tools to tighten the collar.Step 3: Secure and Strain ReliefSupport the cable using marine-grade zip ties or cable clamps.Fasten supports every 12 to 18 inches.Leave a small drip loop right before the cable enters each module.Step 4: Network Extension (Optional)Connect a standard NMEA 2000 drop cable if you need a longer run.Ensure the network does not exceed maximum NMEA 2000 length limitations.
