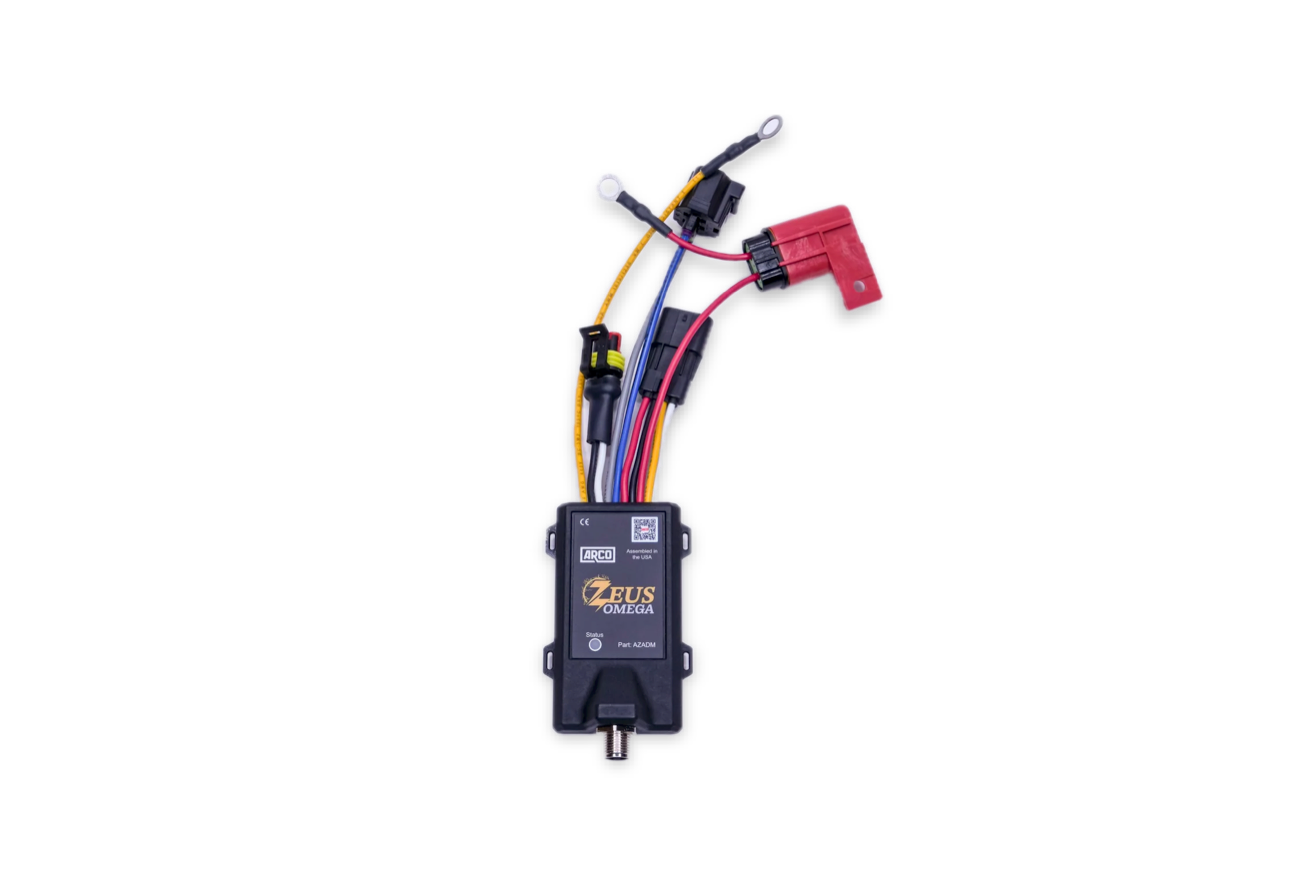

Zeus Omega Alternator Drive Module AZADM

System Voltage Compatibility
12V, 24V, and 48V systems
Alternator Topology Support Fits any externally regulated P-type or N-type alternator
Environmental Protection Fully epoxy-potted with an IP68 waterproof rating
Operating Temperature LimitRated up to 105°C (221°F) for extreme engine bay heat
Primary Communication InterfacePre-terminated AZ CAN communication / NMEA2000 backbone
Current Sensing Integrates with non-contact Hall-effect shuntsSafety Fail-safeEmergency Charge Mode (operates even if the AZCM brain disconnects)

Step-by-Step Installation InstructionsBecause the Zeus Omega eliminates the traditional 12-wire regulator harness, the physical installation is incredibly fast and relies primarily on click-and-plug connections.Mount the AZADM Module: Bolt or securely zip-tie the AZADM module directly at or immediately adjacent to the alternator.Wire the Alternator Connections: Plug the pre-terminated local leads from the AZADM into your alternator's Field terminal, Stator/Tach terminal, and Ground.Mount the Non-Contact Shunt: Snap the Hall-effect current sensor over the main alternator output cable. There is no need to cut, strip, or splice the high-amperage battery wire.Connect the Temperature Sensor: Attach the local thermistor ring terminal to the alternator casing or ground stud to capture real-time temperature data.Route the Communication Cable: Plug the included 16ft (5M) pre-terminated CAN data cable into the AZADM, routing it out of the engine bay back to the AZCM Control Module located near your battery bank.Configure via the App: Turn the system on, open the ARCO Zeus App via Bluetooth, select your alternator orientation (P-type or N-type), and input your battery chemistry library values.

Leverage the App Warnings: The modern companion app features an automated safeguard architecture. Do not guess your configuration; use the app's built-in battery brand profile libraries to apply factory-recommended limits automatically.No Ignition Wire Needed: The Zeus Omega features automatic Engine Run Detection by interpreting voltage and stator activity. You do not need to hunt down or splice into a ignition circuit from the engine dashboard.Mind the Integrated Termination Resistor: If you are tying this platform into a Victron Energy system via a Cerbo GX, the Zeus Omega features internal, switchable CAN bus resistors. Toggle them in the app settings rather than wiring in clunky external inline resistors.Protect Your Alternator from Melt-downs: High-output alternators working at low engine RPMs generate extreme heat. Ensure the temperature sensor is tightly secured directly to the alternator core body so the AZADM can seamlessly back down the field current before thermal damage occurs
