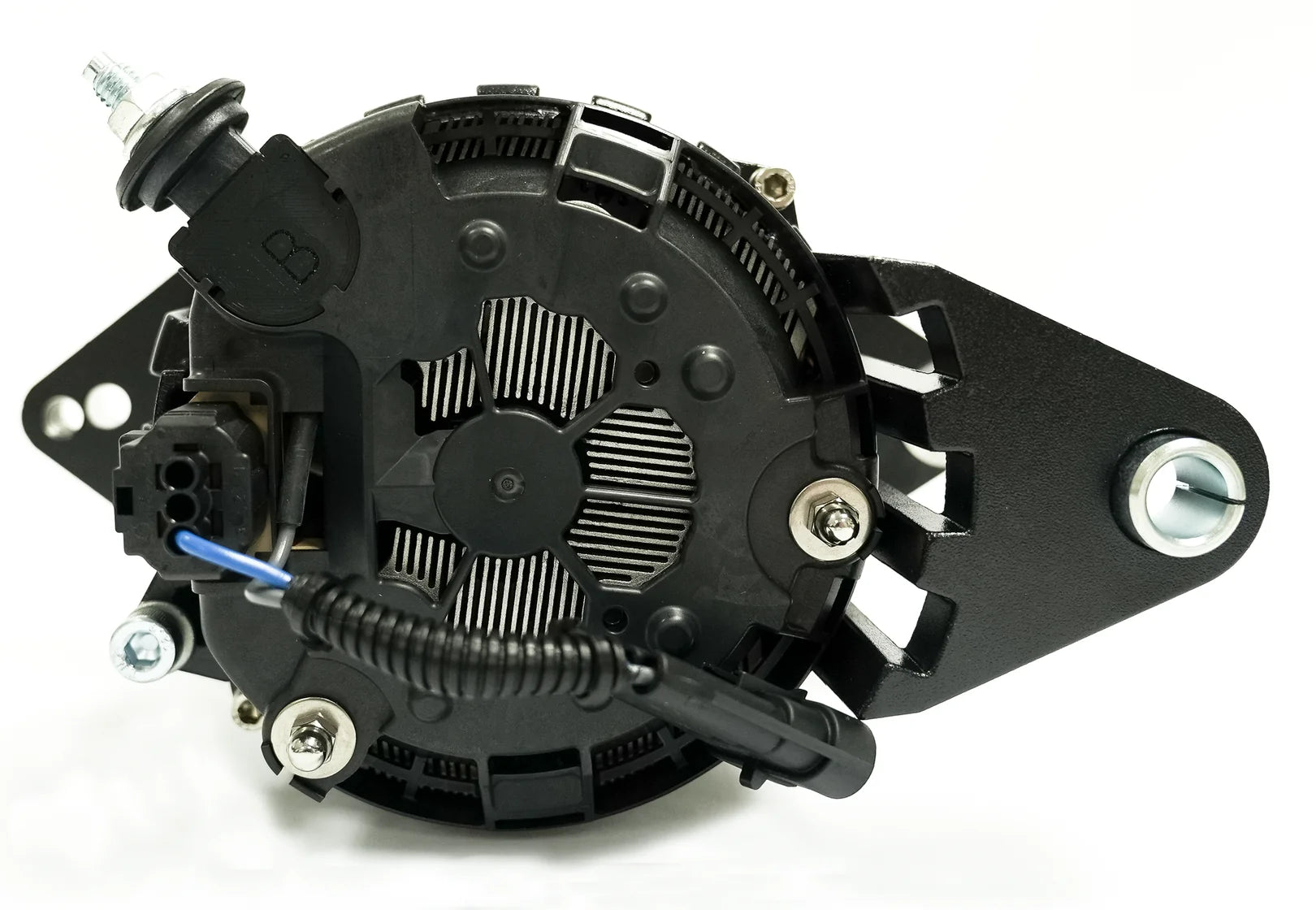

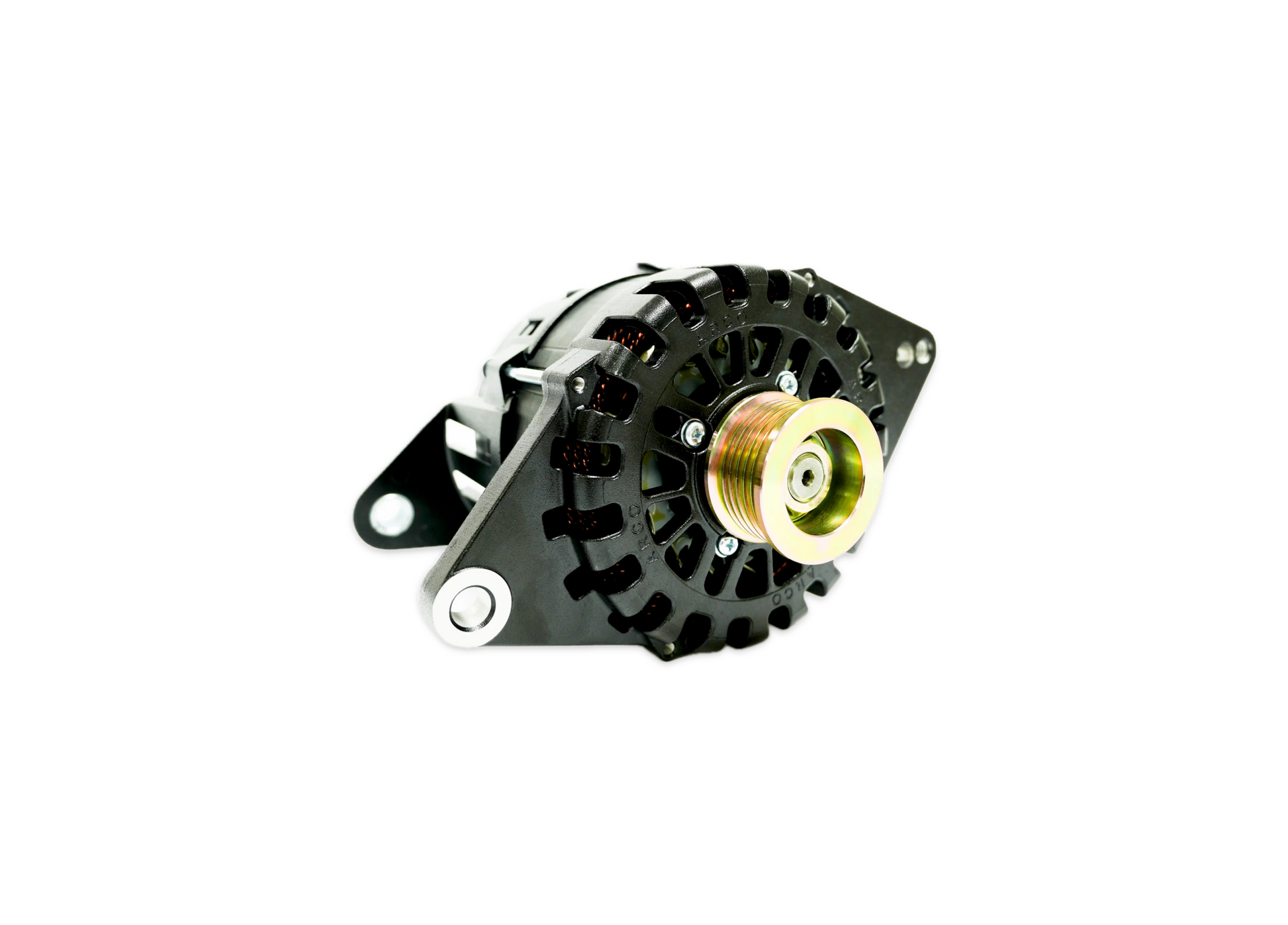

Volvo Penta 24V 7kW DF4 [PN#4503], Side Battery Post, Isolated Ground, 49mm K6 Pulley

If Optimal Charging at Fast Idle or at Higher RPMs Is Important to You, this is the Perfect Alternator for You

High Output / High Amperage Alternator: The Highest Power Output in Its Class

Note: If low speed charging is important to you, view our ARCO Zeus A4000-24V Low Turn On (LTO) Alternator

24V 7kW Advantage

The ARCO Zeus A7000-24V alternator generates extremely high amperage at cruising and higher RPMs. This alternator continuously generates over 3kW (109 Amps) at just under 3,000 alternator RPM, and almost 6kW (218 Amps) at under 6,000 RPM. To put in real world terms, a marine diesel engine at 1,500 RPM with a 2:1 pulley ratio is generating over 3kW, and a Mercedes Sprinter at 1,800 RPM with a 3.21:1 ratio is generating over 6kW!

Best-in-Class Performance

The ARCO Zeus A7000-24V alternator turns on for cruising or at mid to higher RPMs, runs cooler and provides more power than older designs that are larger and heavier. The newest generation of 24V performance has arrived.

True 24V Alternators

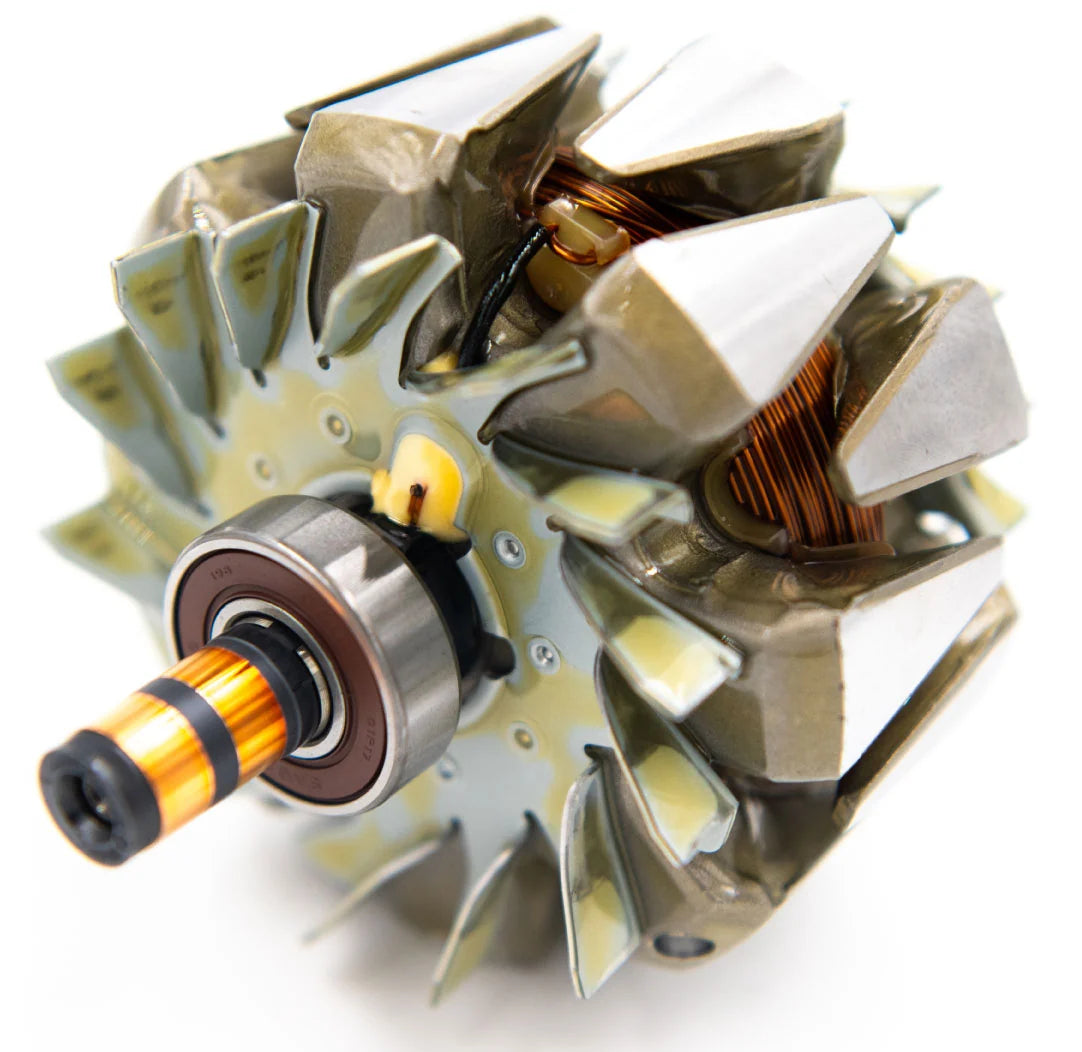

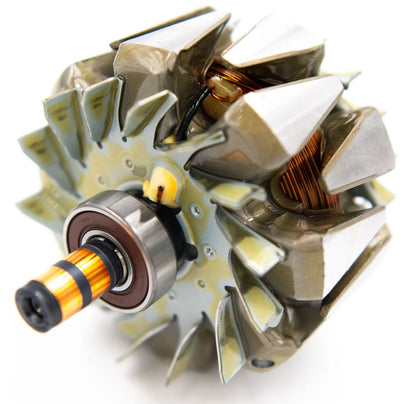

Competitor’s 24V alternators utilize a 12V rotor and field current which is less efficient and limits output at all RPMs. ARCO utilizes a native 24V rotor and field current. This results in our 24V alternator running cooler than competitor’s 24V alternators, having a direct impact on alternator lifespan.

ARCO Zeus 24V High Amperage Alternators, A4000-24V LTO or A7000-24D: Which One's Right for You?

Choose A7000-24V if:

• You primarily charge at cruising rpm or on the road
• You only charge every other day when moving to a new
  location
• You are willing to trade low RPM output for class-leading output at
  mid to high RPMs

*On the power curve graph, select A4000-24V LTO for use cases left of the Decision Point; otherwise, select A7000-24D.

• Replace your noisy generator!
• Engineered for high energy production.
• Suitable for marine, RV, military, and commercial applications.
• Rapidly charges large battery banks.
• Coolest operating temperatures for increased performance:
  • Heat shedding coatings
  • Rectifier located on housing exterior
  • Dual cooling fans
  • OEM components
• Optimized for performance at idle speeds.
• Reduces the need for a generator by creating additional power with your engine.
• Unleash peak performance with E-Coat, keeping the high amp alternator cooler for sustained amperage output.
