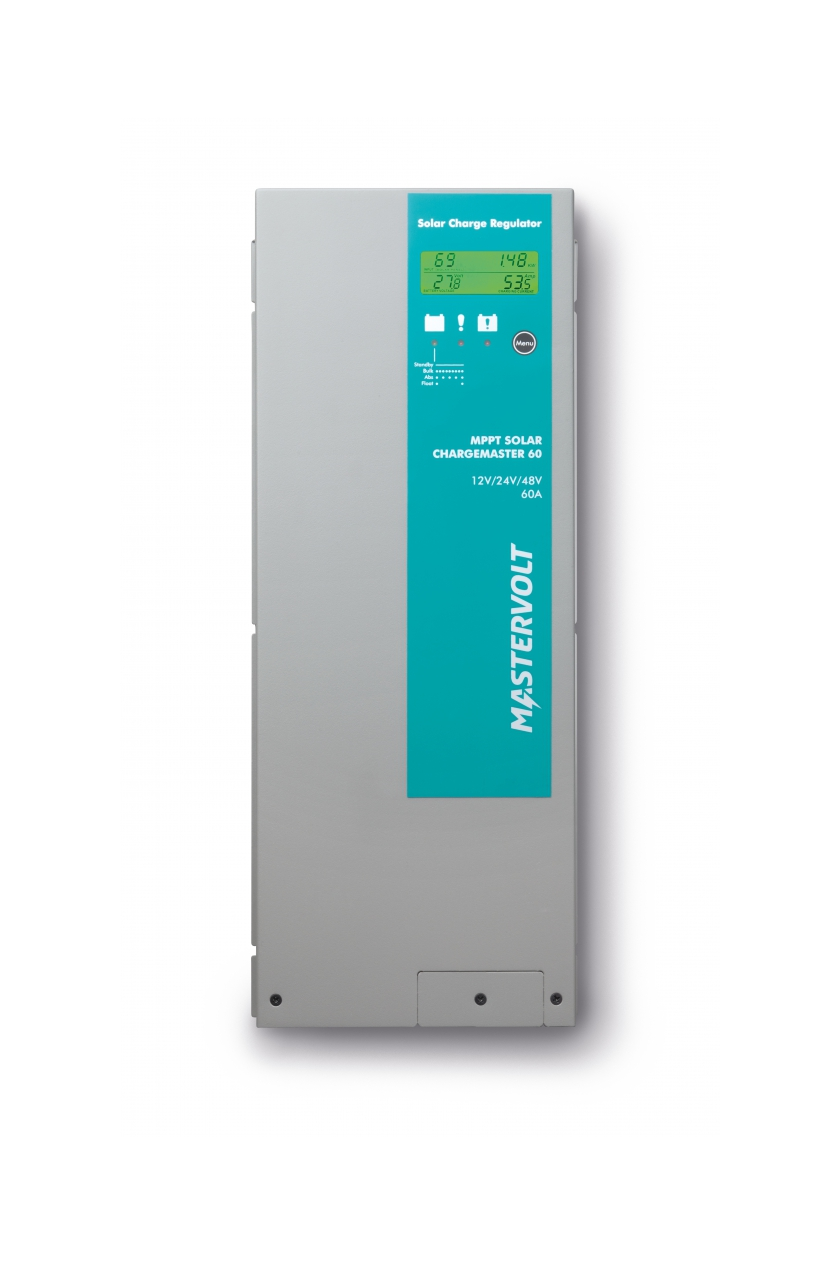

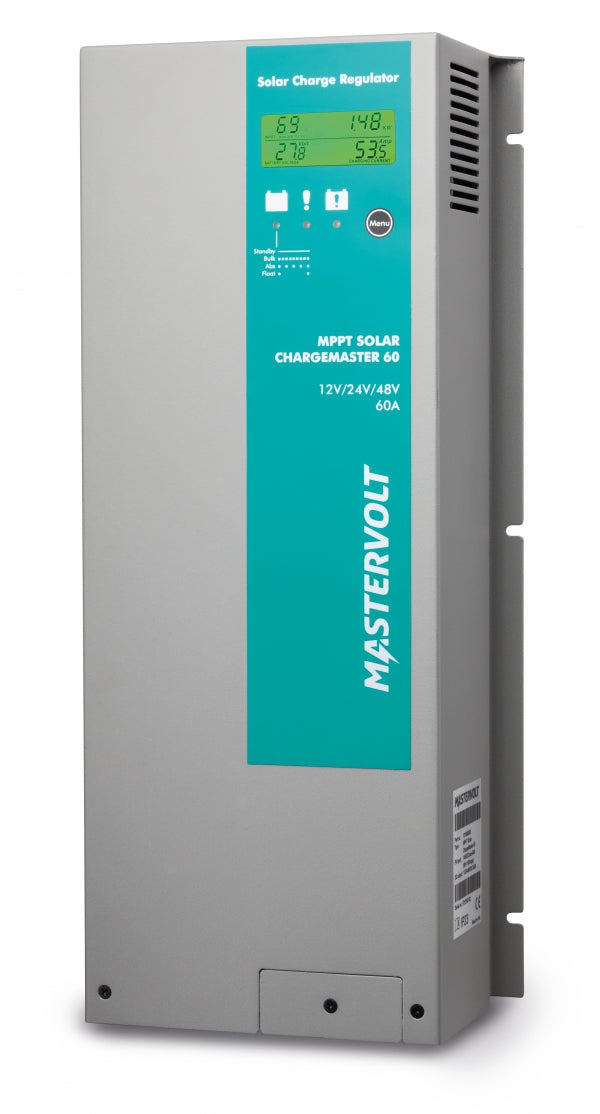

Mastervolt 131906000 Solar Charge Regulator MPPT SCM60

Battery Charger
Max. charge current at 40 °C / 104 °F: 60 A
System voltage (battery): 12/24/48 V auto select
Battery types: AGM, gel, wet, Lithium Ion
Battery temperature sensor: yes
Lithium Ion protection: Yes, via MasterBus connection
Switchable output (max. current): Via MasterBus
Energy consumption (night): < 1 mA

Specifications solar input (DC)
Nominal PV current at 40 °C / 104 °F: 50 A
PV start voltage (12/24/48 V): 15 V/27 V/51 V
Nominal PV voltage (12 V): 13.2-115 V
Nominal PV voltage (24 V): 26.4-115 V
Nominal PV voltage (48 V): 52.8-115 V
Max. PV voltage (Tmin): 145 V
Max. PV power (12 V): 900 Wp
Max. PV power (24 V): 1800 Wp
Max. PV power (48 V): 3600 Wp
Max. efficiency: > 98 %
Static MPP efficiency: 99.9 %

Communication & Monitoring
Communication: MasterBus

General Specifications
Cooling: Passive
Display/read-out: Backlit LCD with PV power, load power, battery voltage, charge current, warnings, battery state of charge, battery setting
Grounding: (-) terminal
Alarms: Via MasterBus
Protection degree: IP23
Dimensions

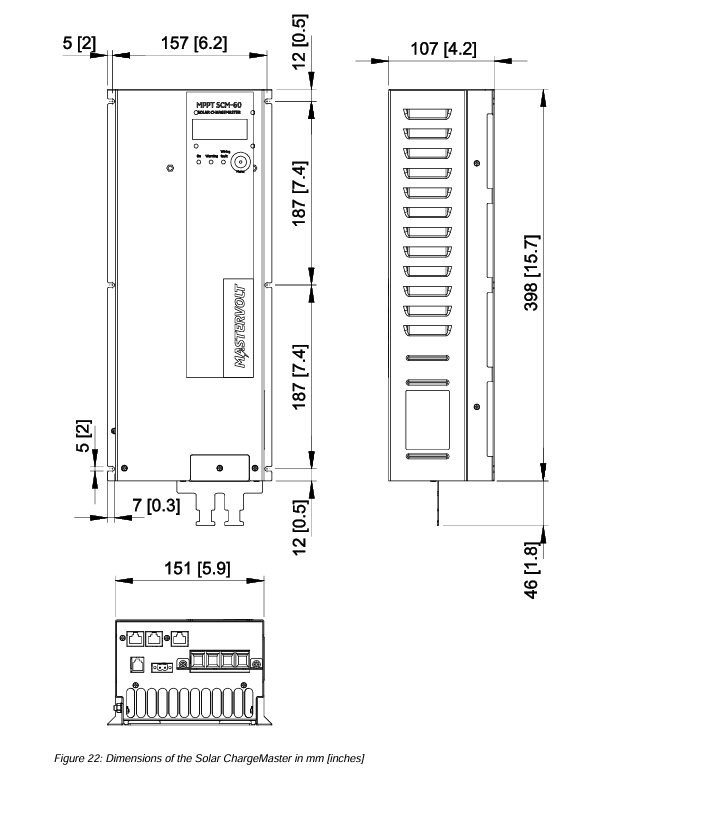

hxwxd: 398 x 168 x 104 mm / 15.7 x 6.6 x 4.1 inch
Weight: 5.5 kg / 12.1 lb

Technical specifications
Technology: MPPT (Max. Power Point Tracker)
Temperature range (ambient temp.): -20 °C to 55
Cable size: max. 35 mm² Litz wire / 2 AWG
Protections: Over temperature, over load, high/low battery voltage, high/low PV voltage, short circuit, reverse polarity & HV transients
Relative humidity: 95% non-condensing
MasterBus compatible: Yes

Mounting Fastener Size: M4 or #8 stainless screws
Mounting Fastener Count: 4

PV Wire Max Size: 16 mm² (~6 AWG)
PV Wire Recommended: 6–10 mm² (10–8 AWG)

Battery Wire Max Size: 35 mm² (~2 AWG)
Battery Wire Recommended: 16–35 mm² (6–2 AWG)

Battery Fuse Size: 80A DC (recommended)

Max Charge Current: 60A
Nominal System Voltage: 12V / 24V auto-detect

Max PV Open Circuit Voltage (Voc): 150V DC

Grounding: Chassis ground connection required

Cooling: Passive (fanless) – maintain ventilation clearance

Solar charging is becoming a core component of modern marine electrical systems. The SCM60 MPPT from Mastervolt is a premium solar charge controller designed to maximize energy harvest while delivering clean, precise charging to your battery bank.

The SCM60 utilizes advanced Maximum Power Point Tracking (MPPT) technology to continuously optimize the voltage and current coming from your solar array. Unlike PWM controllers, MPPT actively adjusts to changing sunlight conditions, allowing you to extract significantly more power from your panels—especially in low light or partial shading scenarios.

Proper battery charging is just as important as power generation. The SCM60 uses a 3-stage charging profile (Bulk, Absorption, Float) to ensure batteries are charged quickly and safely while maximizing lifespan. With support for Flooded, AGM, Gel, and Lithium batteries, it can be tailored to nearly any system. When paired with a temperature sensor, it can further refine charging voltage to protect batteries in varying conditions.

The SCM60 integrates seamlessly into Mastervolt systems via MasterBus and can be monitored and controlled through CZone and NMEA 2000 networks. This allows you to view solar production, battery status, and charging behavior directly from your onboard displays or remote monitoring systems.

In larger systems, solar charging can significantly offset generator runtime and shore power dependence. When combined with lithium battery banks and inverter systems, the SCM60 helps create a more efficient, quieter, and more autonomous vessel power system.

Looking to add solar or optimize an existing setup? Give us a call to design a system that fits your vessel and energy demands.
