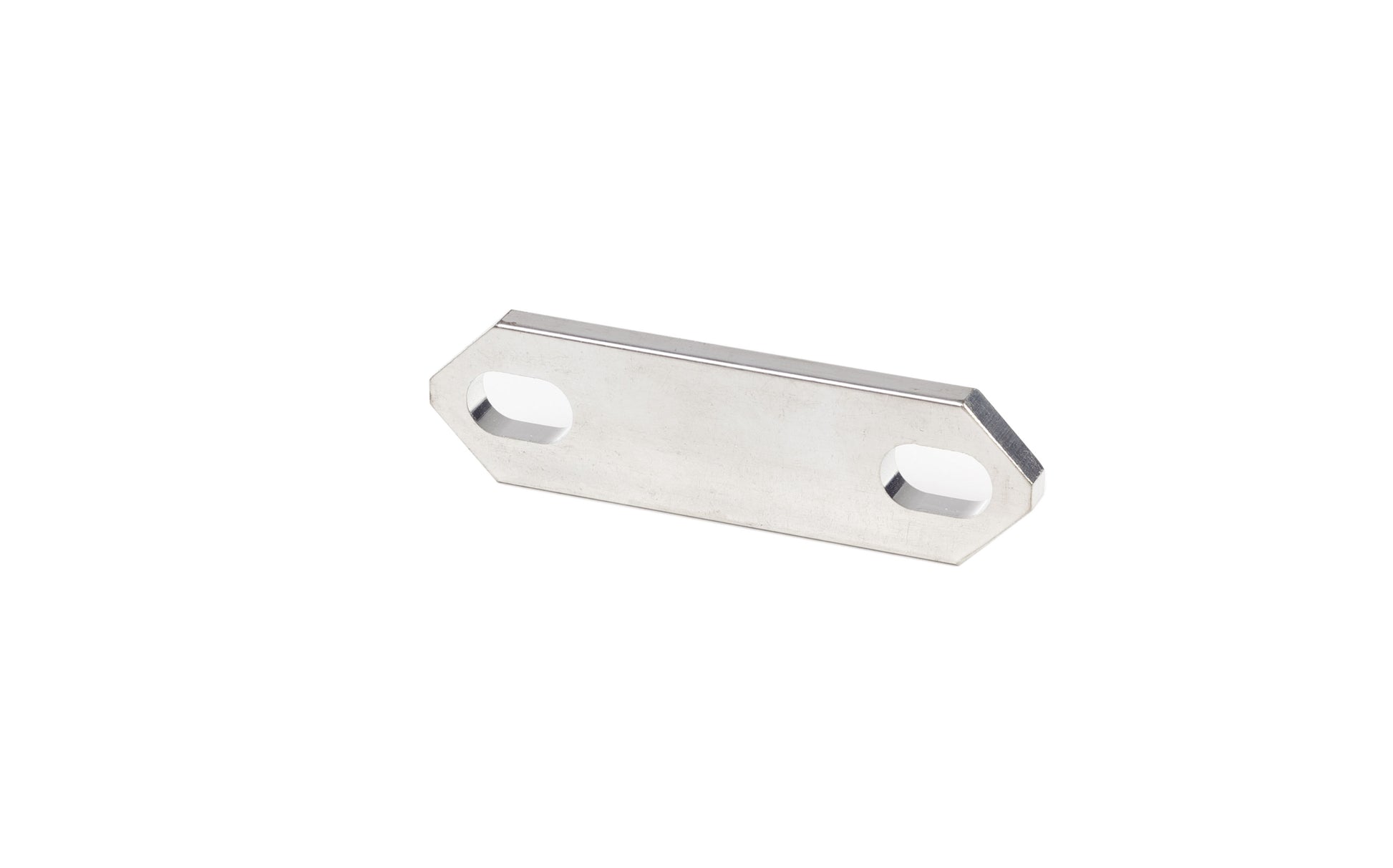

ML 9160 Series Link Bus 500A
ML 9160 Series Link Bus 500A
SKU:BSS9160
If you want have an automatic paralleling charging solenoid or relay for your batteries, a great way to parallel the RBS of your batteries to the ACR is the ML Series Link Bus. Compatible with:
- All ML-Automatic Charging Relays(ACRS)
- All ML-Solenoids
- All ML-Remote Battery Switches(RBS)
- All Powerbar 1000s(BSS1990-BSS1993)
Specifications
Specifications
Tin-plated copper for maximum conductivity and corrosion resistance
500A Continuous Rating
Includes: 1 Series Link Bus

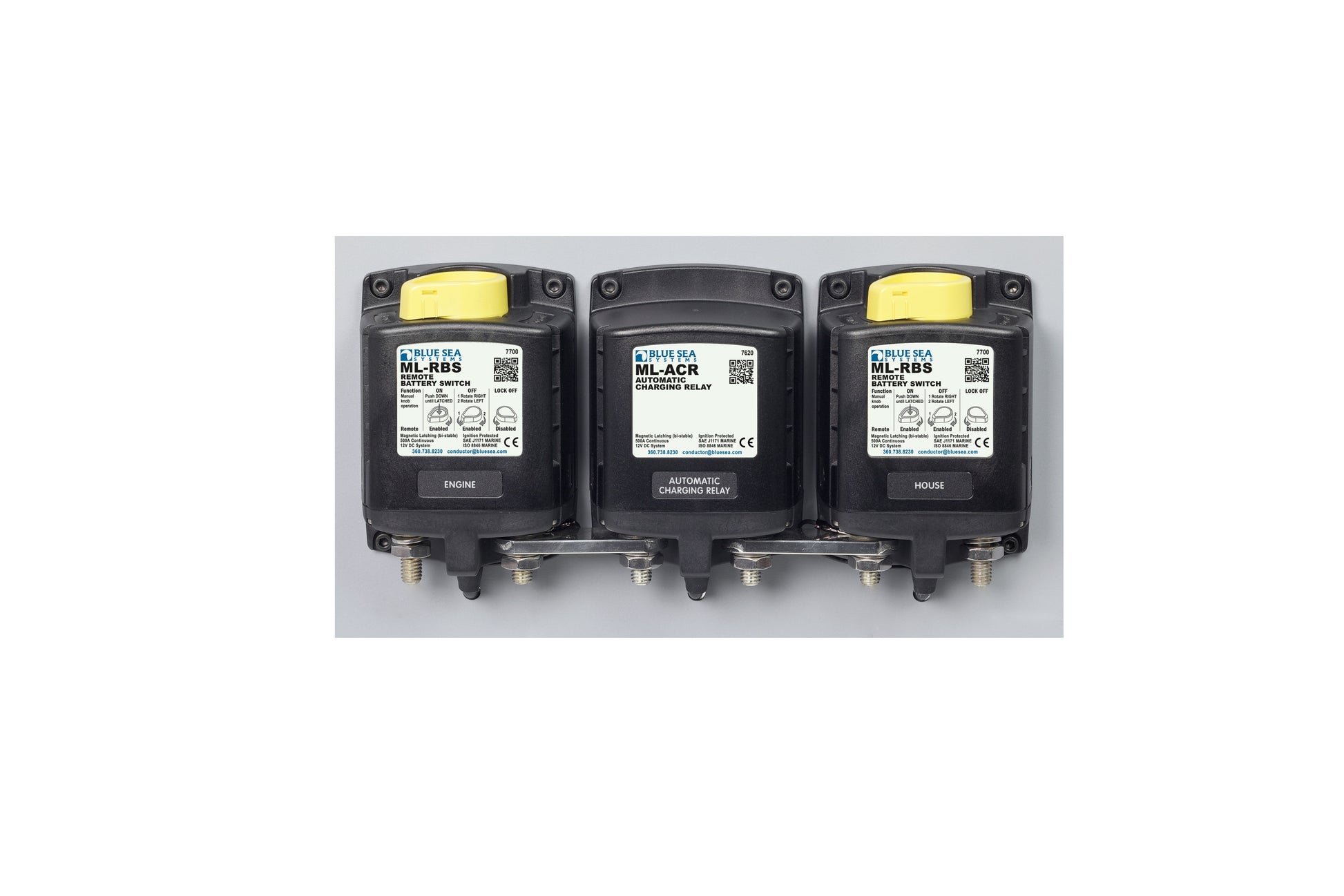

Installation Details
Installation Details
Washer and nuts not included, and come with your BSS Solenoid/ACR/RBS
Pelagic Power Tip
Pelagic Power Tip
If you want to set up an ACR or solenoid to parallel batteries, but don't want to mess with a new 4 ought wire run, the Series Link Bus is perfect for you!
An important installation rule of thumb is that the conductor that carries more current should be under the other objects. So you should always be placing your ML Series Link bus first, then any other cables, in order of current draw, then your flange nut.
