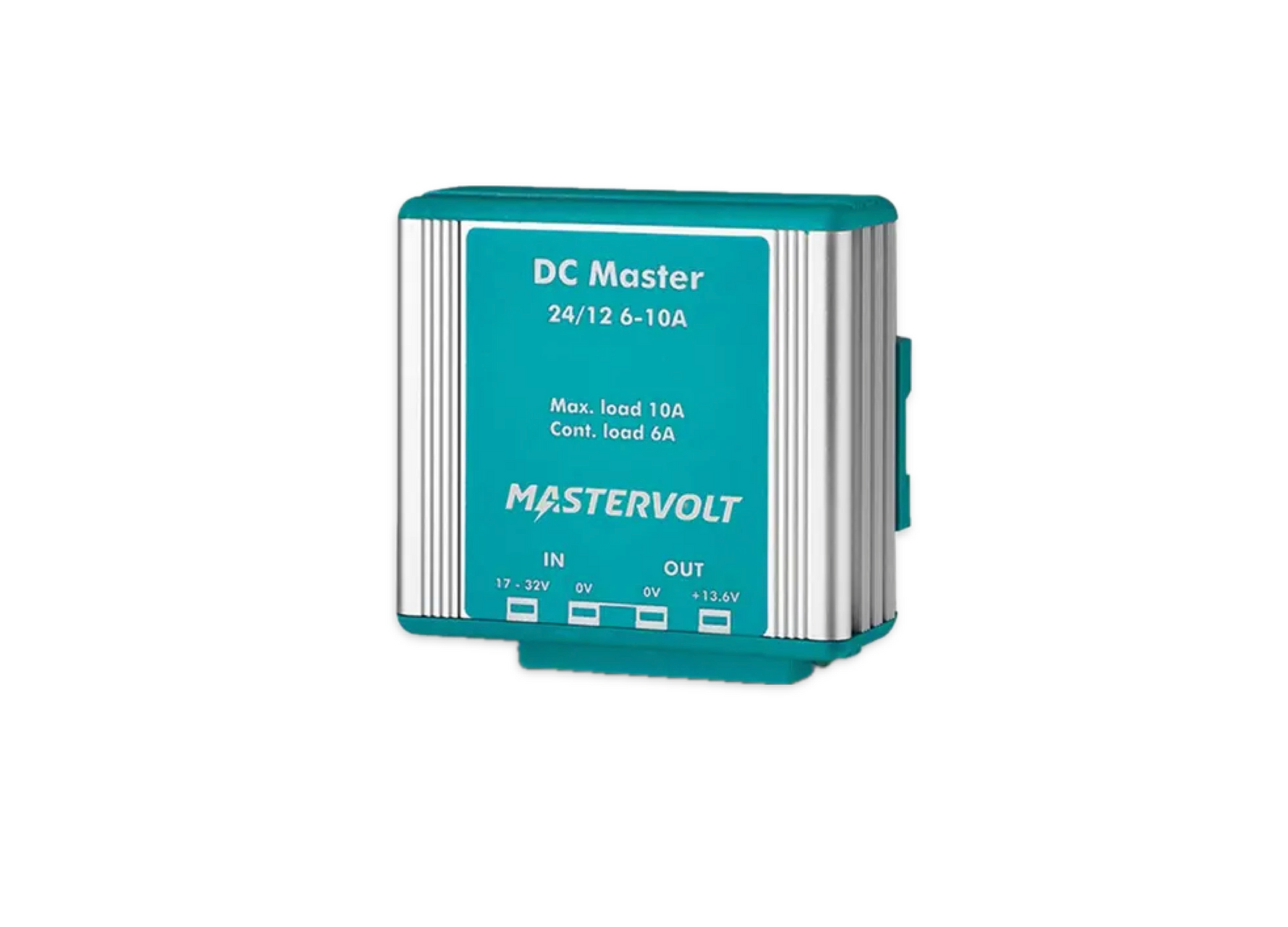

MASTERVOLT 81400200 DC Master DC-DC Converter, 24/12V, 6A-10A

Input Voltage: 24V nominal (range of 20–32V DC).Output Voltage: 13.6V DC (stabilized).Current Output: 6A continuous; up to 10A surge capacity for 2-minute intervals.Efficiency: High efficiency with natural cooling, resulting in minimal heat generation and silent operation.Protection: IP53 rated for durability in semi-professional environments.Installation: Includes a mounting bracket, screws, and fasteners for easy setup

Installing the Mastervolt 81400200 (DC Master 24/12-6A) involves a straightforward "click-on" process using the included mounting bracket. Because this is a non-isolated model, it is designed for systems with a common negative earth.1. Preparation and SafetyPower Off: Ensure the supply source (24V battery) is switched off and no loads are connected to the 12V output during installation.Voltage Check: Verify your battery is a 24V system and your 12V devices do not exceed a continuous 6A draw.Polarity Warning: Double-check polarity. If the positive and negative connections are swapped, the unit will be irreparably damaged.2. Physical MountingLocation: Select a cool, dry, and well-ventilated area. The unit uses natural cooling (no fans), so airflow is critical for performance.Bracket Installation:Use the included mounting bracket to mark three hole positions.Drill 3.5mm pilot holes.Secure the bracket to the surface using the provided screws.Securing the Unit: Simply click the converter onto the fixed bracket clip.3. Electrical ConnectionsConnection Order: Always connect the input wires first (24V) before connecting the output wires (12V).Terminals: Use "Fast-on" (spade) connectors for all wiring.Fusing: You must integrate a fuse in the positive (+) wiring close to the battery to protect the circuit.Grounding: This model is suited for applications with negative earthing

Pro-Tip on "Stacking":If you find that 6A isn't enough power for your needs later on, do not connect two of these units in parallel to get 12A. These non-isolated models aren't designed to share a load equally, and one unit will likely overheat and shut down. If you need more power, it's better to upgrade to the 12A or 24A version (81400300 or 81400400).
