Mastervolt 77010600 Smart Remote

Mastervolt 77010600 Smart Remote

MVT77010600

$175.46 USD
$175.46 USD
Sale Sold out

Checking your Mastervolt product has never been easier

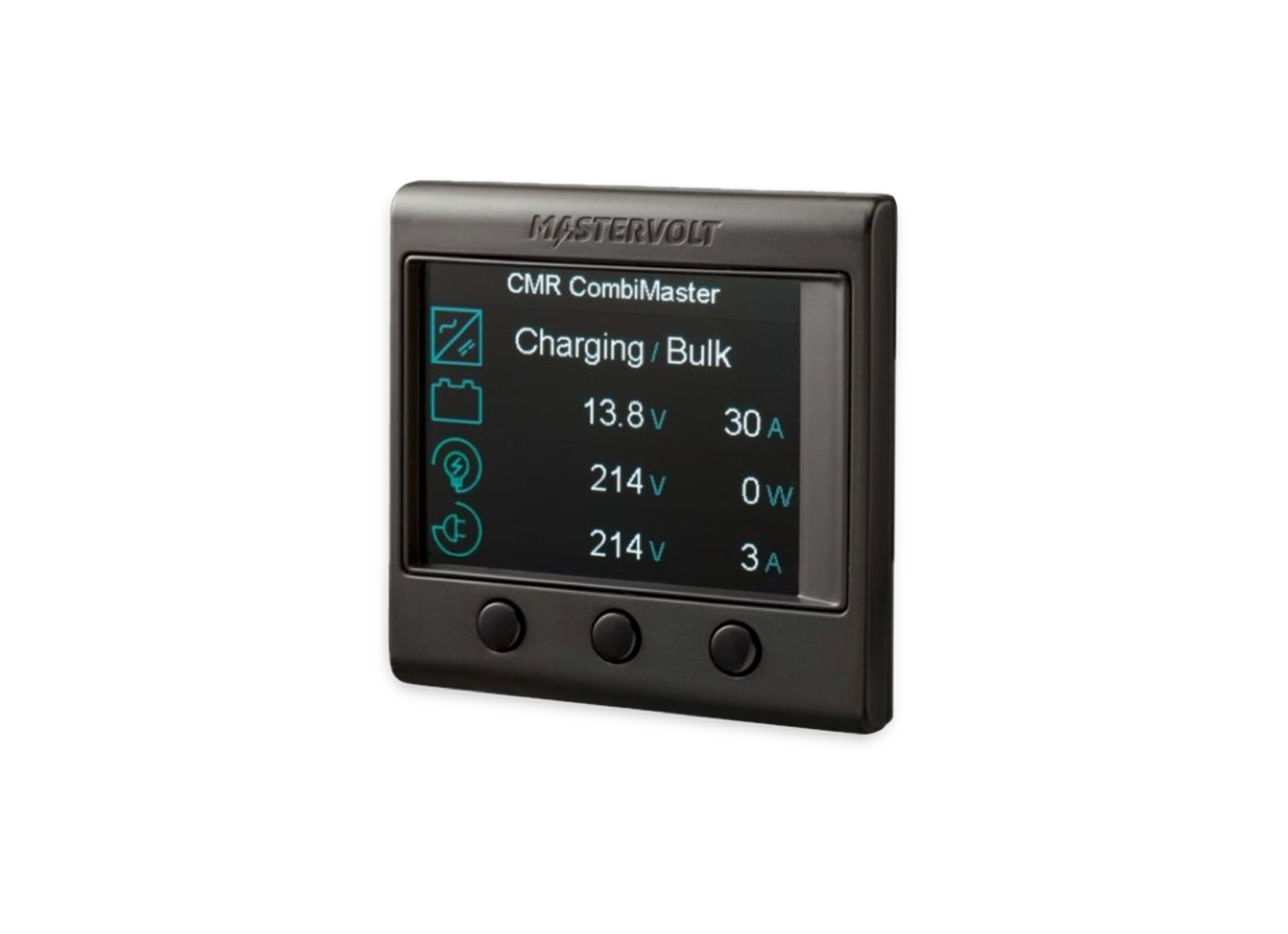

The SmartRemote completes any MasterBus system. With its good looks and compact size, the SmartRemote is ideal as a remote panel in entry level power systems or as a local device readout in larger systems. Applications include boats, vehicles and stationary systems.

Mastervolt products enable intelligent power systems with advanced multi-device monitoring and control. However, in situations where the local device readout is hard to reach or too limited, an entry-level color display for local device monitoring would be ideal. This is where the SmartRemote comes in.

The new SmartRemote single-device display is unique in many ways. It communicates with Mastervolt devices, shows key parameters, allows simple device settings and is fun to use. Checking your batteries, adjusting your shore fuse or controlling your Mastervolt charger/inverter has never been easier.

  • Full color display for local device monitoring.
  • Displays key parameters.
  • Control key device functions.
  • User adjustable power saving mode.
  • MasterBus network compatible.
  • Universal, easy mounting.
  • Plug & Play - no configuration, no power supply needed.
  • Blue Sea Systems Custom 360 integration.
  • Support for English, Dutch, German, French, Spanish, Italian, Danish, Swedish, Norwegian, Finnish.

Supported Products

Specifications

MasterBus
Display/read-out Mounting 2.8 inch, 320 x 240 pixels, high colour
panel mount (cutout: Ø 52 mm / 2 inch, 4 screws included); Blue Sea
360 panel mount (locking ring included)
Protection degree IP20
Dimensions, hxwxd Weight 0.075 kg
72 x 72 x 29.4 mm
2.8 x 2.8 x 1.2 inch
0.2 lb
Delivered with MasterBus cable (6 mtr), Mastervolt-CZone drop cable (1 mtr), manual

Installation Details

The SmartRemote display can be panel mounted or may be integrated into a Blue Sea Systems Custom 360 bezel. Connection is easy as 1-2-3: simply click the network cable into a Mastervolt device and off you go.

Pelagic Power Tip

Firmware Updates (v1.1.0+): Ensure you are running the latest firmware for improved graphics and stability. Notable shortcuts in recent versions include:
Access Menu: Briefly press the left and right buttons simultaneously.
Manual Standby: Press and hold both left and right buttons for 3 seconds.
Auto Standby: You can now configure hibernation intervals (Never, 2, 5, or 10 minutes) via the menu to save power.
Plug & Play Installation: The retail version is bus-powered, meaning it requires no external power supply or complex configuration. Simply connect it to a Mastervolt device using the included MasterBus cable (6m) or CZone drop cable (1m).
Universal Mounting: The device fits a standard 52mm (2-inch) cutout and can be panel-mounted or integrated into a Blue Sea Systems Custom 360 bezel.
Device Compatibility: While designed for MasterBus, it supports communication with CombiMaster units. Support for other chargers, inverters, and MLI batteries has been a rolling release through firmware updates.
System Diagnostics: Use the color display to adjust shore fuse settings or monitor real-time battery status without needing to access the main device readout, which may be in a hard-to-reach location.
