Mastervolt 6502200800 CombiMaster Cable Kit Two CombiMasters Split Phase 240V AC
Mastervolt 6502200800 CombiMaster Cable Kit Two CombiMasters Split Phase 240V AC
SKU:MVT6502200800
Communication cable kit for connecting two CombiMasters in split phase for 240V AC.
Only compatible with the 3500W, 4500W, and 5000W CombiMasters. Can only be used with two identical CombiMasters.
This kit will allow two CombiMasters to create 240V AC split phase power. Not for paralleling.
Split phase setup can only be done in Masteradjust software on a PC. To program the system you will require a USB Interface Programming Tool.
If you want to parallel in addition to split phase you will also need 2 of part number 6502200600 (1 per paralleled phase).
See manual for wiring diagram.
Communication cable kit only, all other wires and cables required for CombiMaster install not included.
CombiMaster not included.
Specifications
Specifications
Includes:

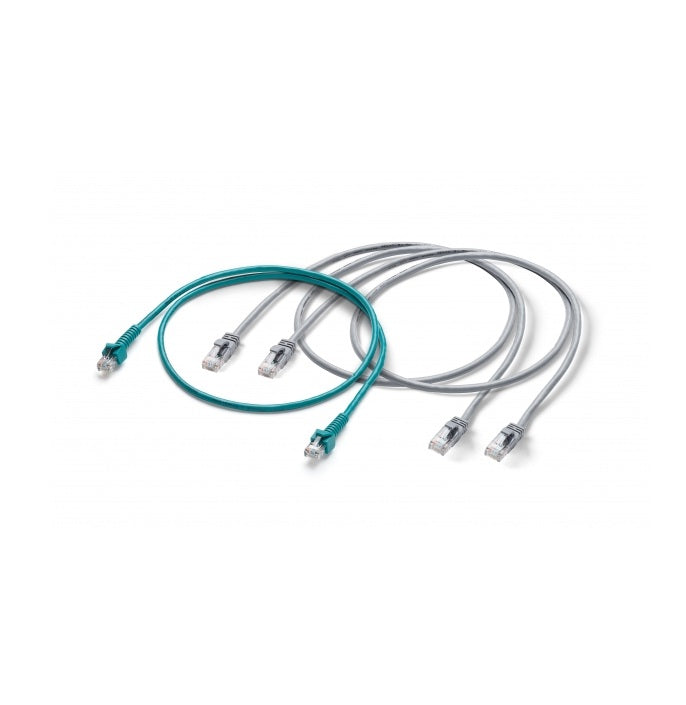

2 Communication Cables (3ft)
Masterbus cables not included
Installation Details
Installation Details
Can only be used between two identical CombiMasters.
CombiMasters should be mounted so the 3ft cables in this kit can be easily connected.

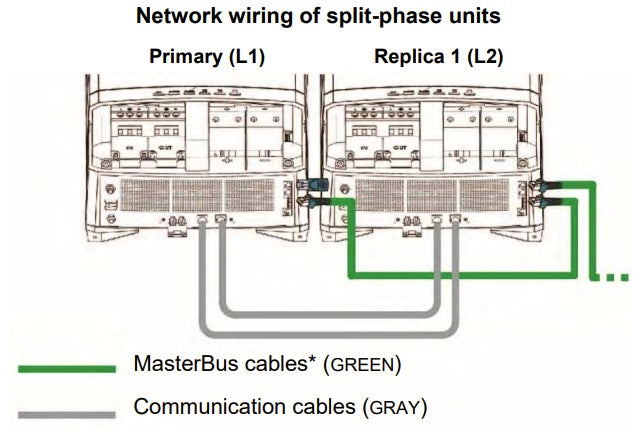

Cables should be installed exactly as show in manual. Inside ports connected to inside port, outside port connected to outside port. Swapping of of connections can create issues.
Pelagic Power Tip
Pelagic Power Tip
This kit is only for connecting two identical CombiMasters in split phase for 240V AC systems. If you want to parallel in addition to split phase you will also need 2 of part number 6502200600
