Mastervolt 6502200700 CombiMaster Cable Kit 3rd CombiMaster Parallel (Add-On)
Mastervolt 6502200700 CombiMaster Cable Kit 3rd CombiMaster Parallel (Add-On)
SKU:MVT6502200700
Communication cable kit for adding a 3rd CombiMaster in parallel with two other identical CombiMasters. Only compatible with the 3500W, 4500W, and 5000W CombiMasters.
Can only be used with three identical CombiMasters.
This kit will allow proper communication between three units to triple the AC inverter power on a single phase 120V AC system. Not for split phase operation.
If you are adding in a CombiMaster to an existing parallel setup then this is the only cable kit you need. If you are doing a three unit setup all at once. you will need this kit plus the parallel kit part number 6502200600
See manual for wiring diagram.
Communication cable kit only, all other wires and cables required for CombiMaster install not included.
CombiMaster not included.
Specifications
Specifications

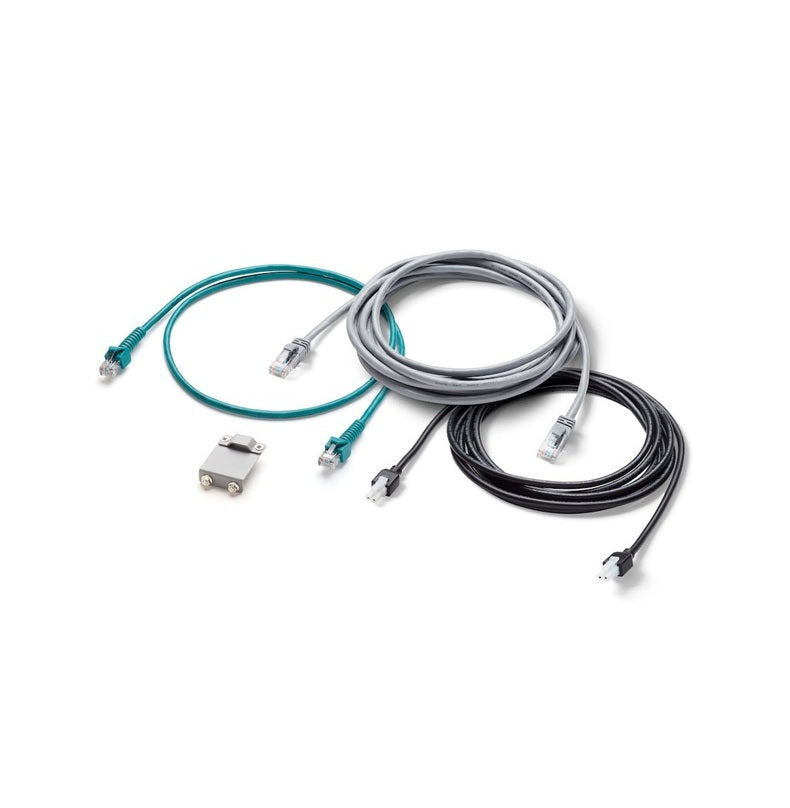

Includes:
1 Communication Cable (10ft)
1 Current Sharing Cable (10ft)
1 Strain Relief Brackets
Masterbus cables not included
Installation Details
Installation Details
Can only be used to add a third identical CombiMasters in parallel.
CombiMasters should be mounted so the 10ft cable in this kit can be easily connected.

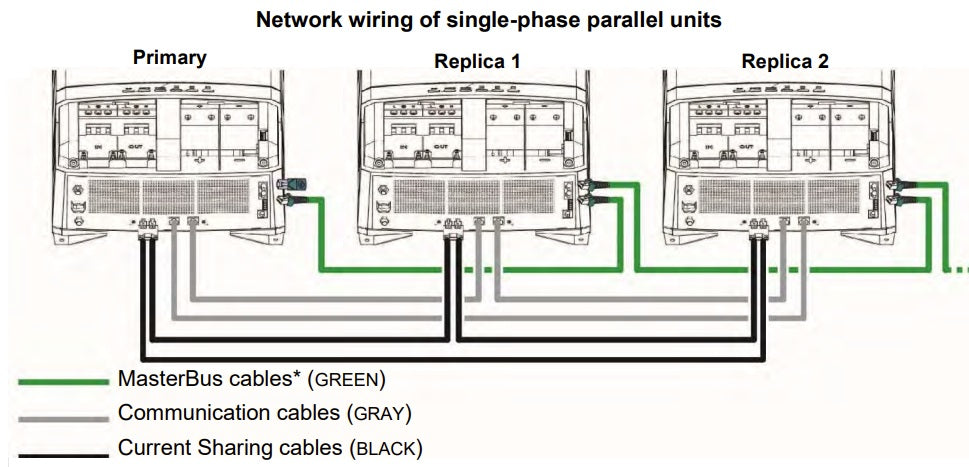

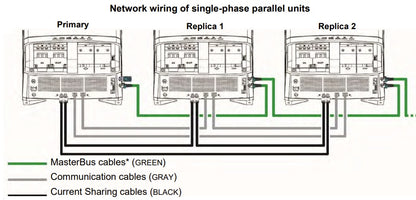

Cables should be installed exactly as show in manual. Inside ports connected to inside ports, outside ports connected to outside ports. Swapping of of connections can create issues.
Pelagic Power Tip
Pelagic Power Tip
This kit is only for connecting a third identical CombiMaster in parallel on a single phase for 120V AC systems. If are doing 3 units from scratch you will need this kit plus part number 6502200600.
