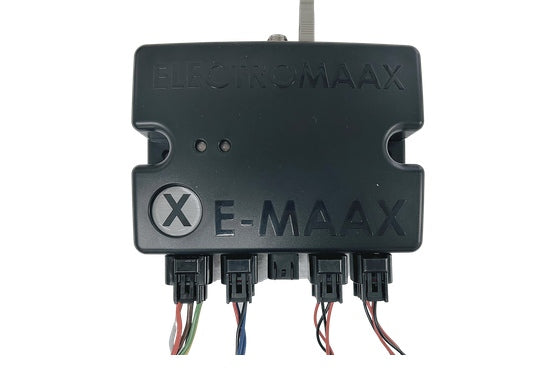

ElectroMaax E-Maax Pro X Regulator 12/24V External
ElectroMaax E-Maax Pro X Regulator 12/24V External
SKU:ELCSMR-E-MAAX-PRO-X-V7
A regulator takes unfiltered power from an alternator and converts that power into a proper charging profile for your batteries. An advanced external regulator allows for maximum control and configuration for your specific system's needs.
The E-Maax Pro X from ElectroMaax provides everything you could need to properly manage power to even the most advanced battery systems. The E-Maax Pro X was designed for ultimate configuration ability and works with essentially any alternator that can pair with an external regulator.
Utilizes six critical inputs to properly charge your battery system (voltage, alternator current, system current, engine RPM, alternator temperature, user configured field output level)
Unlike other regulators the E-Maax Pro X comes with all required harnesses, sensors, and shunts in one package.
Features:
- Pairs with 12V or 24V alternators
- Compatible with virtually any battery chemistry including: AGM, Gel, Lithium, & Carbon
- NMEA 2000 plug and play output for simple MFD monitoring
- P-Type or N-Type compatible

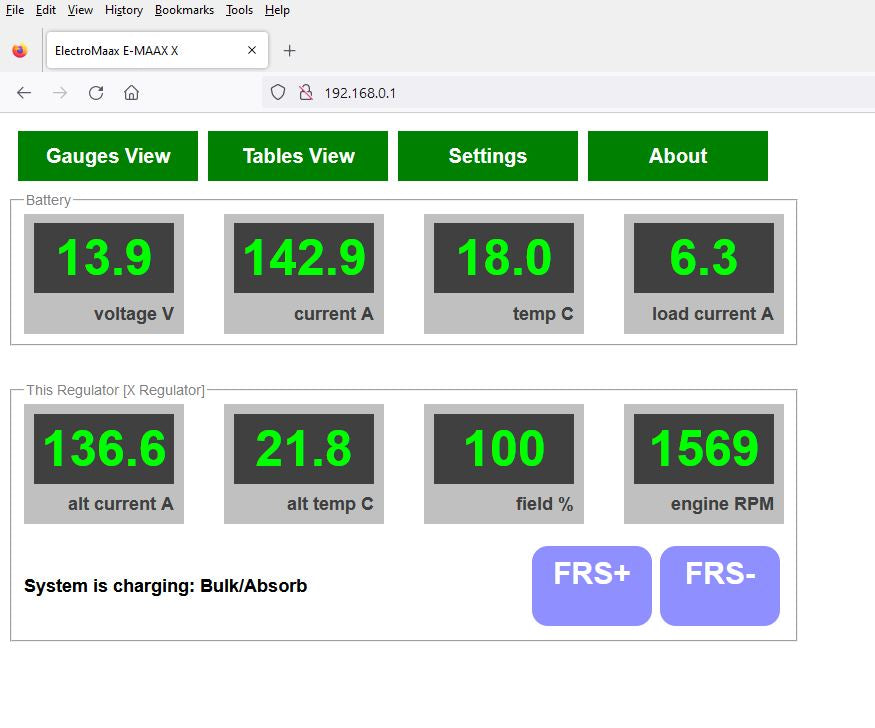

- Wi-Fi or USB PC configuration
- Fully customizable configuration
- Can regulate 2 alternators on the same engine
- Small engine configurable to prevent stalling
- Simple configuration software (download below)
- All harnesses, sensors, and shunts included
Specifications
Specifications
System Voltage: 12V or 24V
Max Operating Voltage: 40V
Current Draw: 150mA
Max Field Current: 20A
Max Voltage Scale of Shunt: 5V
Power Cable Size: 14 AWG
Signal Cable Size: 18 AWG
Weight: .44lbs (housing only)
Operating Temperature Range: -20C to 100C
Ingress Protection: IP56 water resistant
Max Shock: 3G
Max Humidity: 95%
Installation Details
Installation Details

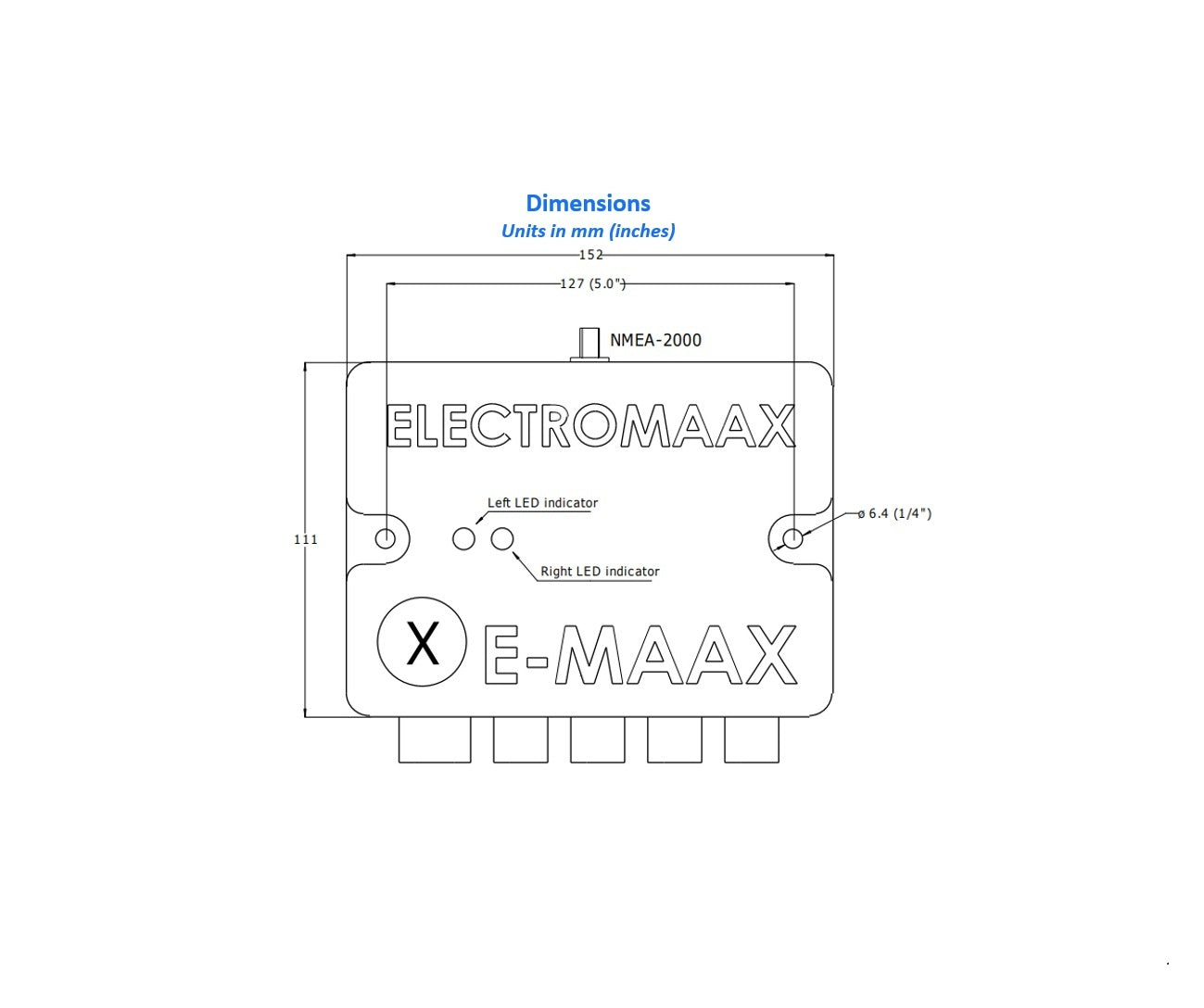

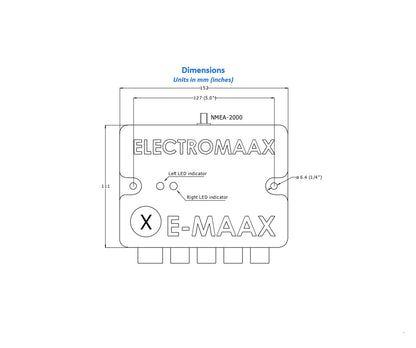

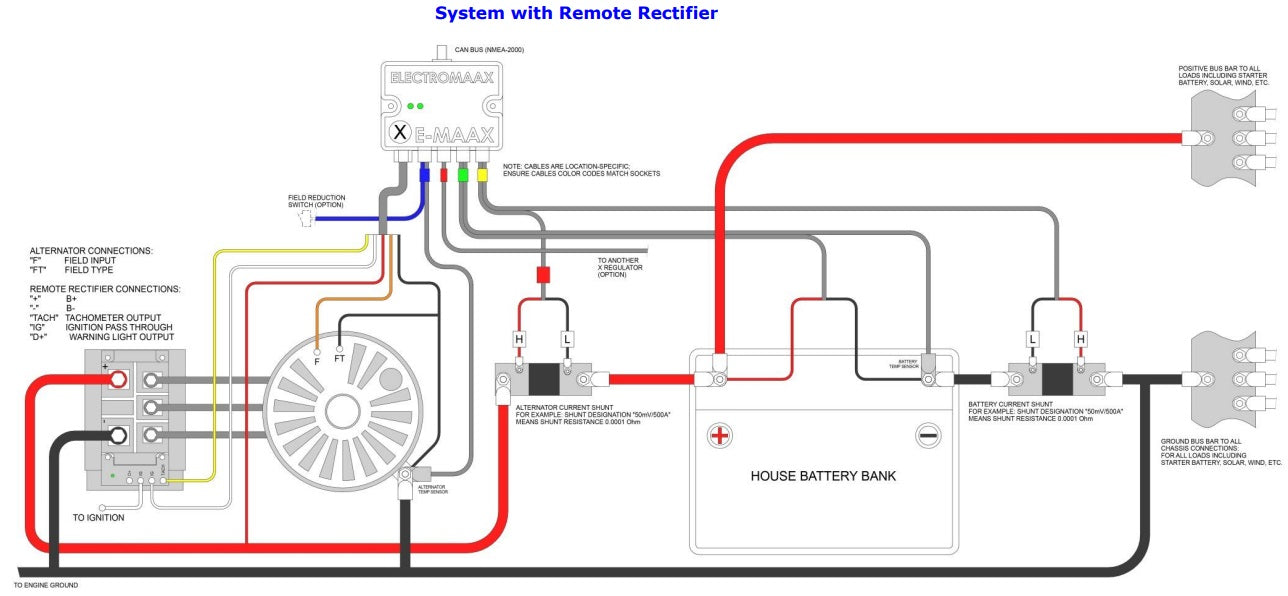

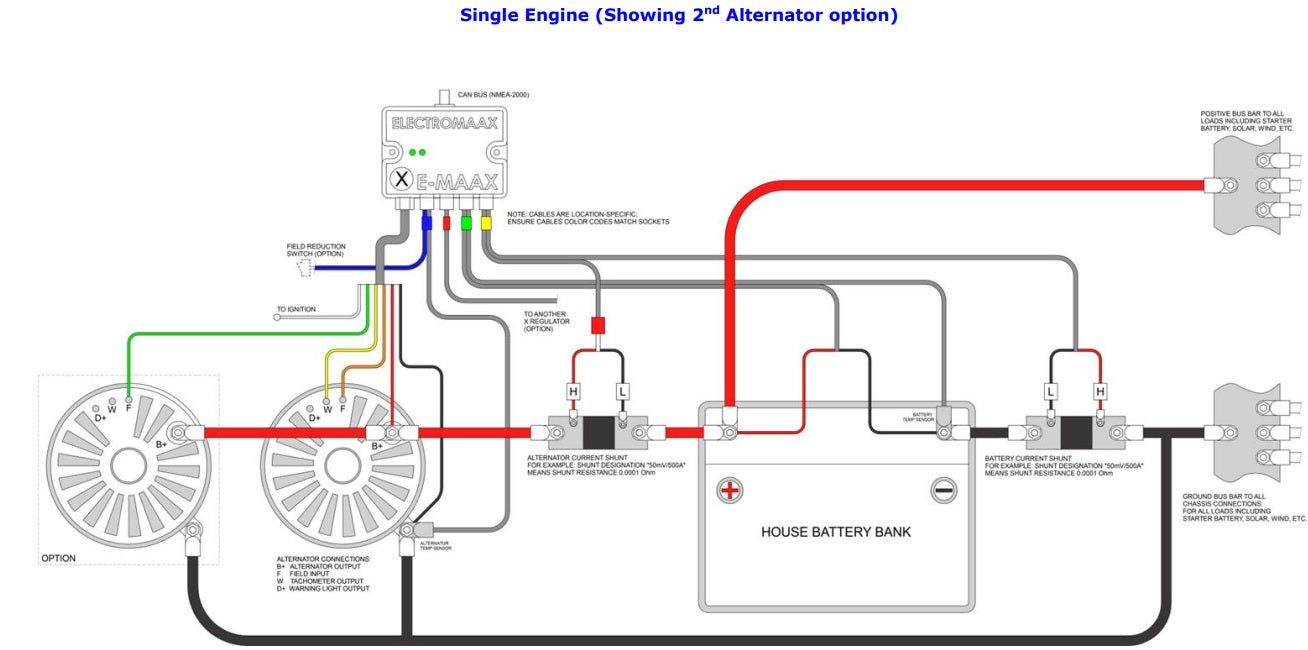

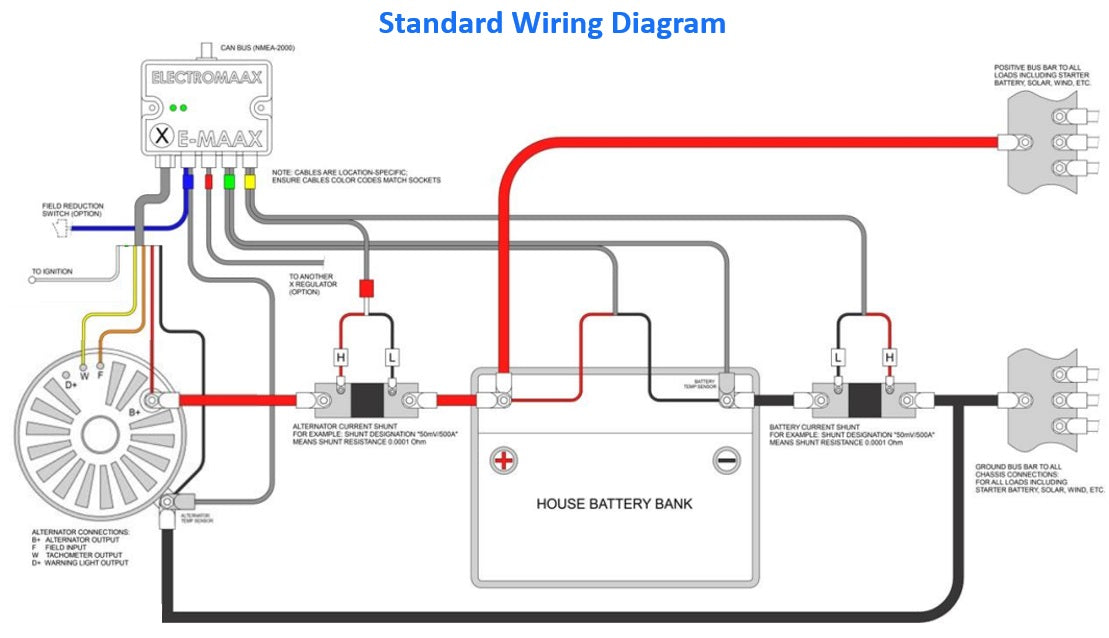

See wiring diagrams for different wiring configurations.
The regulator requires configuration to operate.

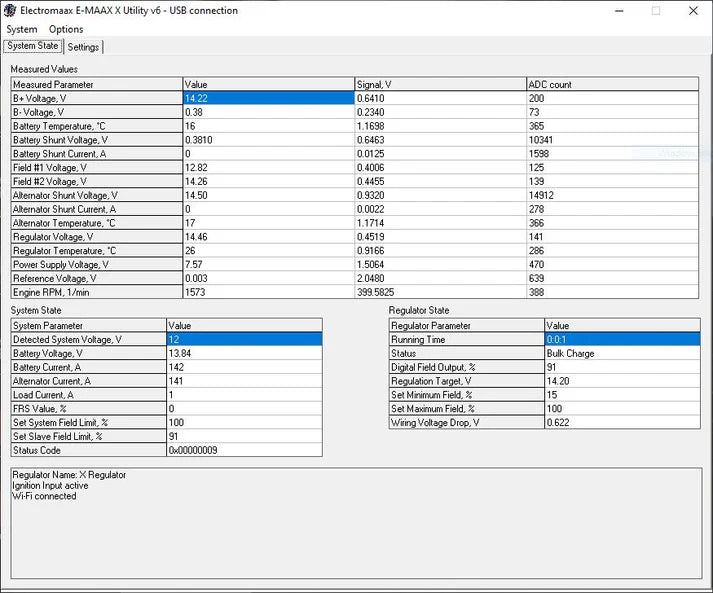

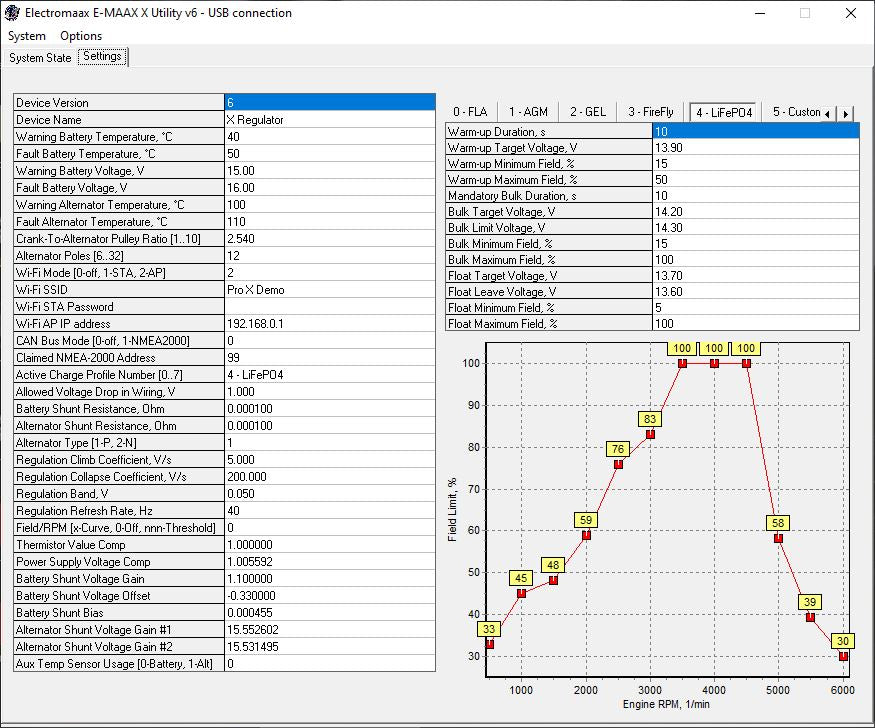

To configure download the configuration software below or install from included USB thumb drive. Software is for PC only.
Mandatory configuration parameters below
System Voltage: Auto detected
Battery Chemistry: Select default or customize
Maximum Field %: Equals the maximum output percentage for your alternator
Alternator temperature levels: Controls output to prevent alternator over heating
Crank to Alternator Pulley Ratio: Crankshaft pulley diameter divided by alternator pulley diameter
Alternator Poles: Per alternator manufacturer
Alternator Type: 1= P or 2= N
CAN Bus Mode: 1 = NMEA 2000
Pelagic Power Tip
Pelagic Power Tip
Like any good external regulator the E-Maax Pro X must be configured prior to operation. The included software makes this easy.
We recommend configuration at home on your computer prior to installation. To do this simply hook up a 12V or 24V power supply (or battery) to the red and black wires on the "X" harness. Leave all other wires disconnected.
Once powered you can connect the regulator to your computer and configure all parameters and program the device. Just make sure the voltage matches the system voltage you plan to install the regulator in and doesn't just sense your power supply voltage.
When complete click "System" in the top left corner and "Write Settings". Now your regulator is programmed and ready for install.
Now when you complete the wiring and installation on-board your regulator will be ready to test.
