CZone 80-911-0124-00 LCD Touch 5 Display
CZone 80-911-0124-00 LCD Touch 5 Display
SKU:CZN80-911-0124-00

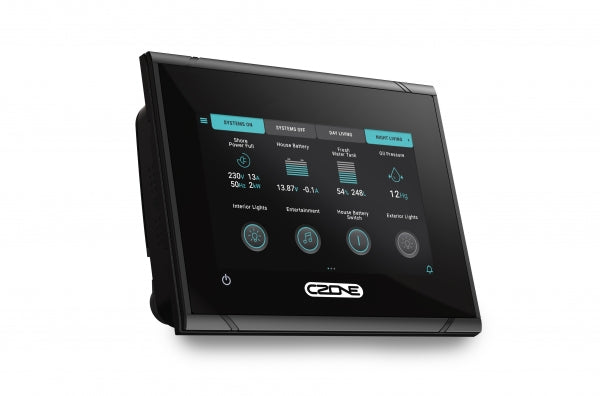

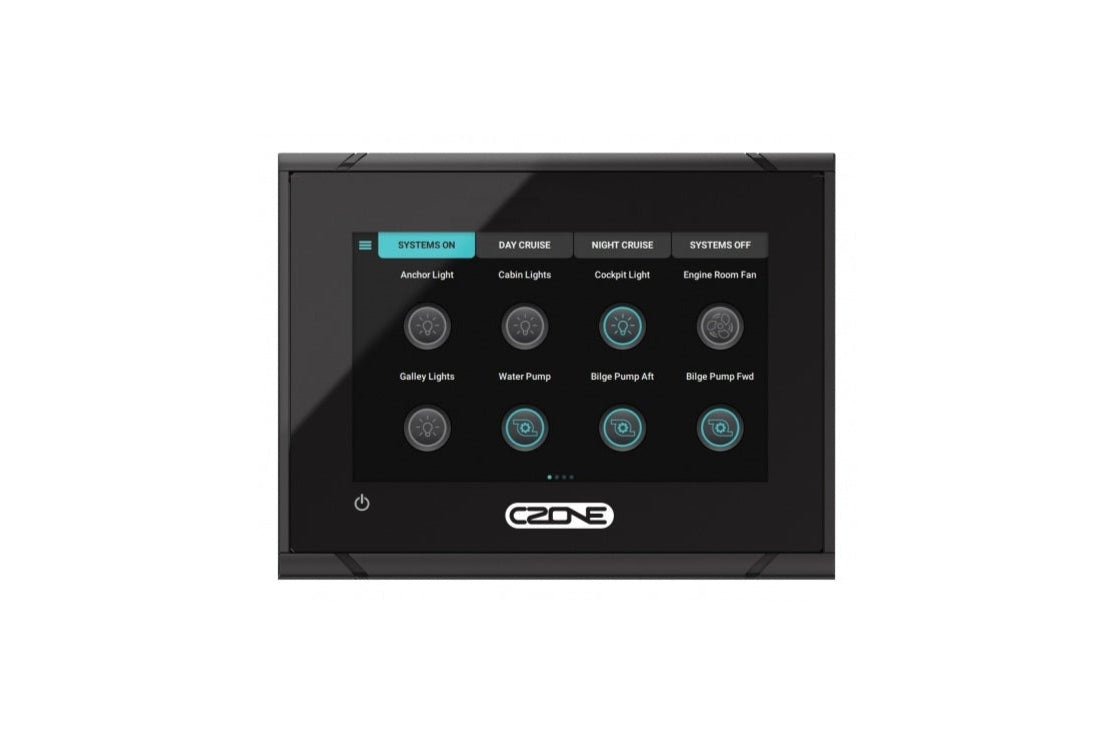

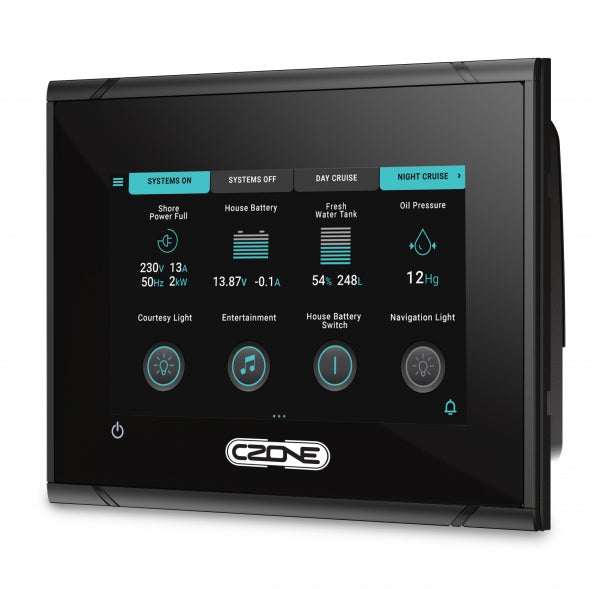

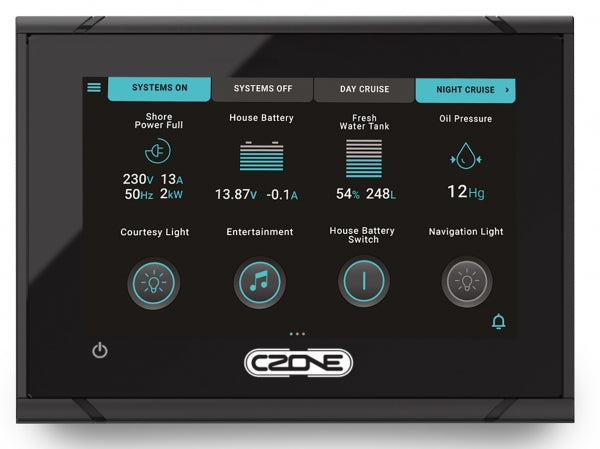

The CZone Touch interfaces are the pinnacle of digital switching, interfacing, and monitoring. The Touch 5 is the most compact of the family, while keeping all of the necessary information & functionality, perfect for limited space applications or when you need dedicated CZone switching at the helm, flybridge, or a cabin.
Seamlessly pairs with CZone modules and bridges to Mastervolt systems. This allows load switching, mode switching, power monitoring, tank indication, alarm monitoring & history, generator control, and so much more. See our video below for a demonstration of the amazing capabilities possible in an integrated CZone & Mastervolt system, all tied together for the user in the Touch Interfaces.
If you are interested in upgrading to a CZone digital switching system or screen into your board, or need help configuring your CZone system, please give us a call or email, we'd be happy to chat.
Features:
- 5 inch High Res 800 x 400 pixel display
- 1200 nit brightness with dimmable nighttime capabilities
- 5” LED-backlit projected capacitive widescreen touch
- Easy to swap out
- Perfect for helm/flybridge control or bedside access to CZone
Note:

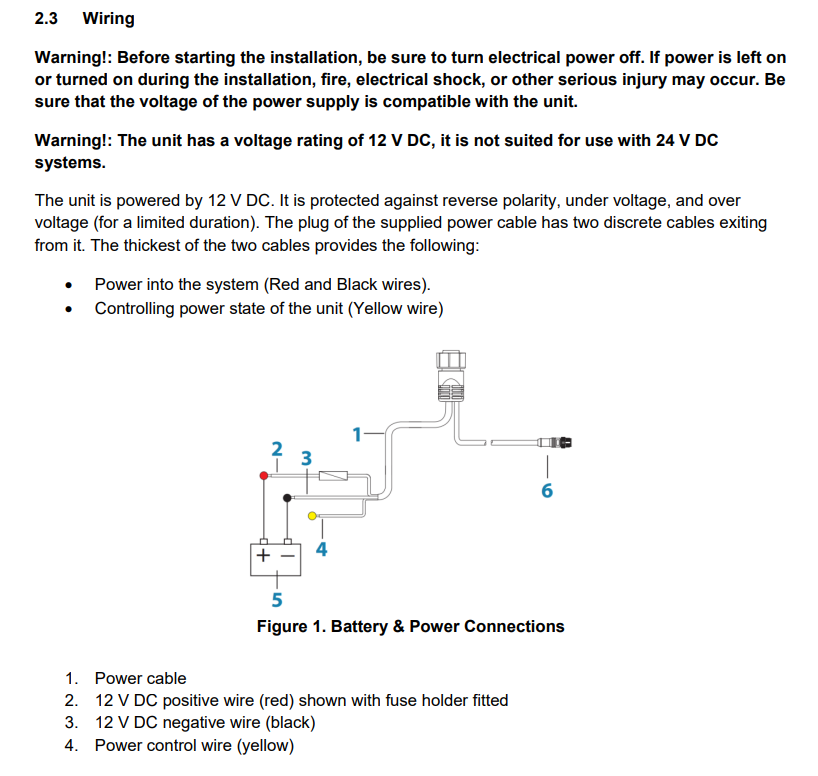

This unit is only 12V and can be damaged if connecting to 24V. For 24V applications please use a 24V to 12V DC to DC converter. View Converters Here
Specifications
Specifications
Operating Voltage: 10-17V DC (12V Nominal)
Current Consumption :
900 mA @ 12 V (operating - backlight 100 %)
Operating Temperature: -15 to 55C
Comes with: Touch 5, Sun cover, NMEA/Power cable, NMEA/Power cable, Panel Mount Gasket, and 4x Panel Mounting screws
Internal Wifi/Hotspot capability: Yes
Ethernet Port: No
Display: Backlit LED
Touch screen: Projected Capacitive
Brightness:500 nits(cd/m2)
Interfaces: MicroSD, NMEA 2000, WiFi
Ingress Protection: IPx7
Certifications: CE, RCM
Installation Details
Installation Details
Mounting Bracket screws: 4 self tapping included
Screwless rear access: yes
How to swap out a CZone Touch 5 Display:
1) find the dip switch address of your existing display, either through the configuration tool or in the screen itself
2)Power down the old screen
3)Remove flange from around screen and unscrew screws and disconnect plugs from old screen
3)Plug in all prior connections into new screen and screw in to place
4)Replace flange on new screen
5) Supply power to the screen

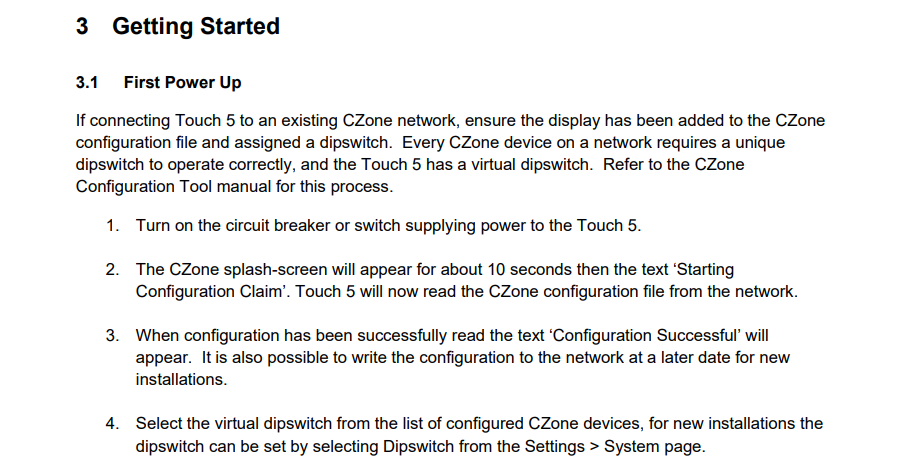

6) Upon start up, match the dip switches to the previous screen when prompted
7) Configuration will automatically load and you are ready to use your screen

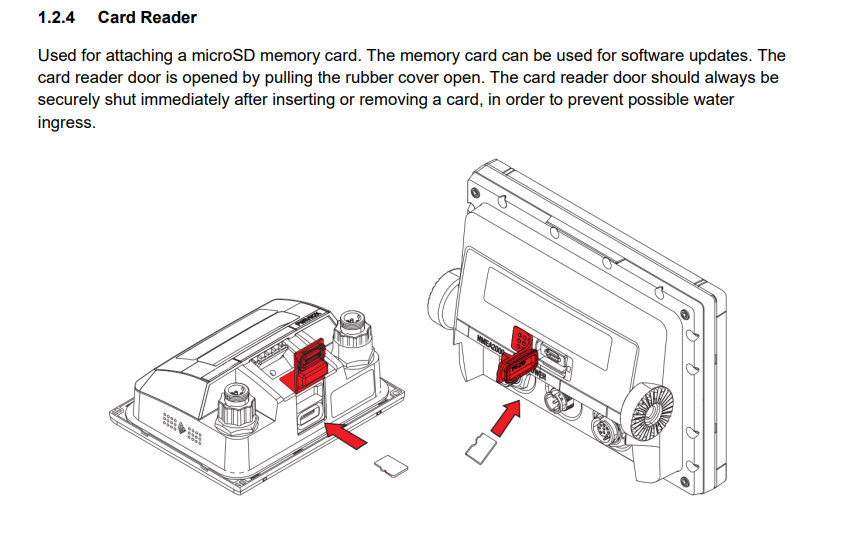

Firmware updates must be done with a microSD card in the back of unit, behind a waterproof door. The latest firmware can be found here: https://downloads.czone.net/
Pelagic Power Tip
Pelagic Power Tip
Imagine this: you hop onto your boat, hit one button, and have lights, outlets, generator, TVs, or anything you've configured to turn on, so that you can worry about loading gear and making sure your family is safe. You are ready to leave, you hit cruising mode, MFDs, nav lights, AIS, radar, or whatever you'd like to turn on or off: you are ready to go in the touch of a button. This is the dream that come true with the CZone Touch Interfaces, letting CZone do the thinking, so you can enjoy your time on the boat.
A great thing about all CZone modules is that whenever software is uploaded to the network, every CZone module will hold all of the information inside it. This means that if one of your modules needs to be replaced, you should be able to match the dip switch address of your new module to the same as the old one, plug it into the system, and the other modules in the network will take identify the new module and automatically program it. This makes changing a display or module easy, anywhere in the world without special software and internet.
The Touch 5 includes an internal wireless hotspot. When activated you can connect to an iPad to this hotspot and allow wireless control while onboard. This feature is free and only works when on the local hotspot.
