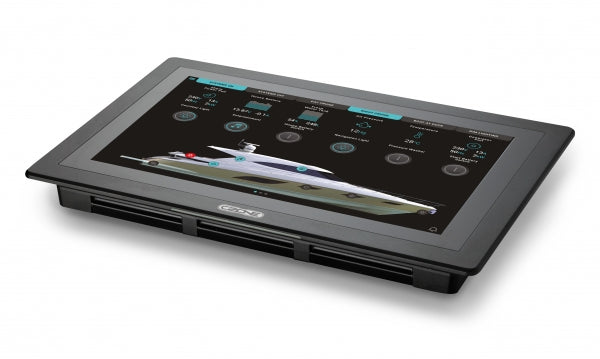

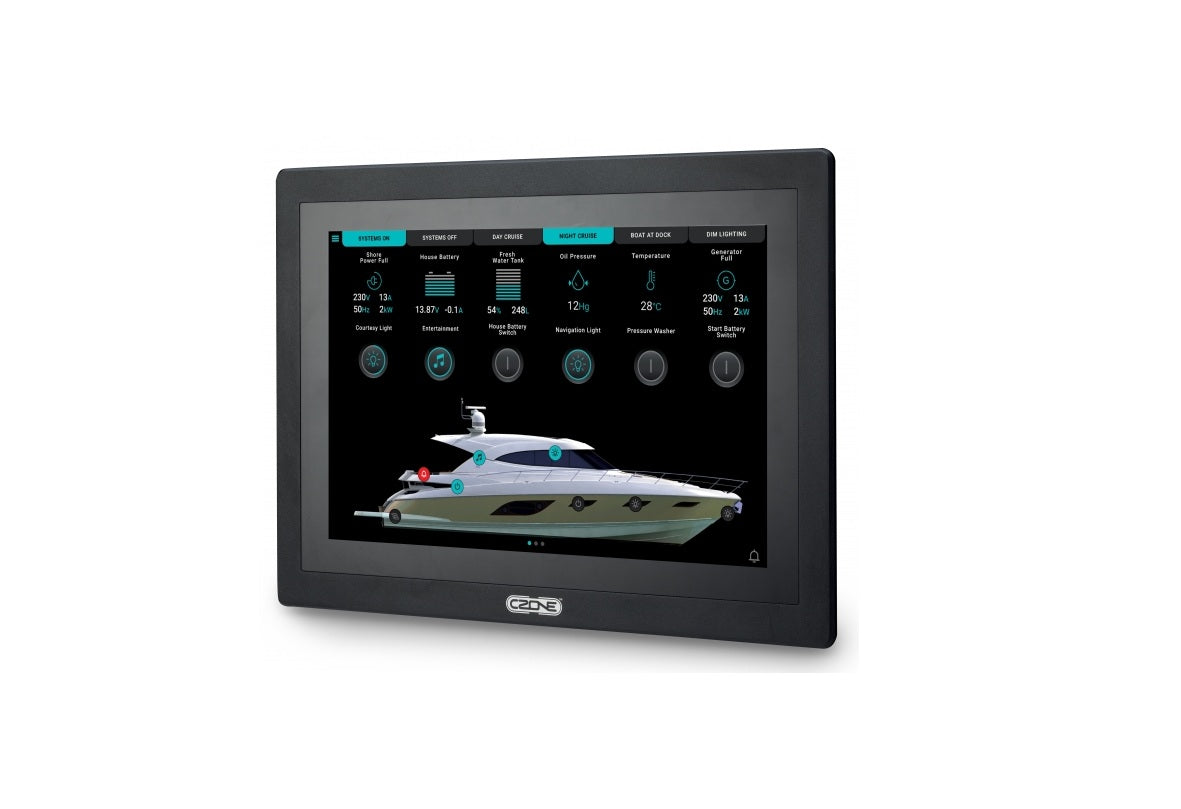

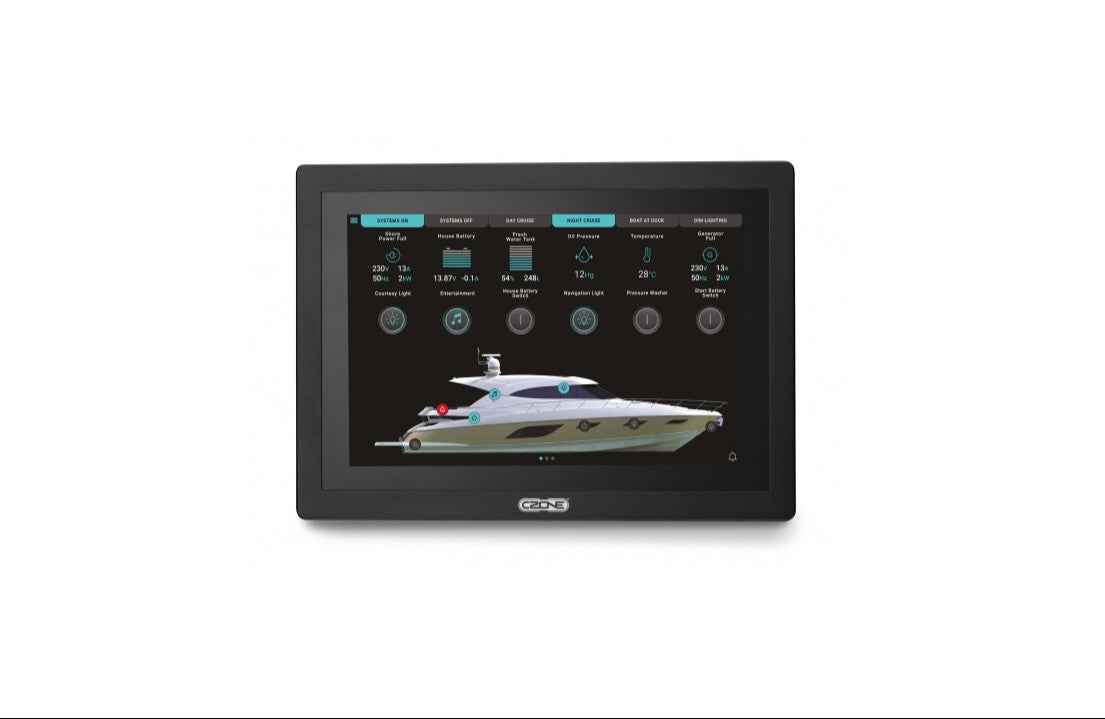

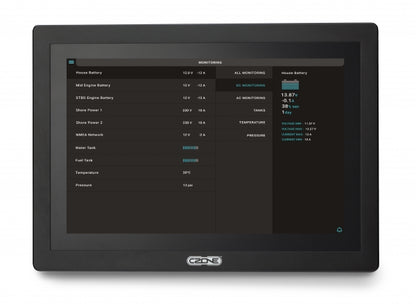

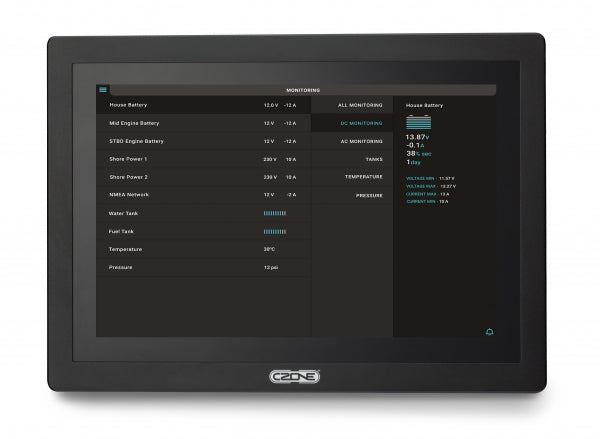

CZone 80-911-0102-01 LCD Touch 10 G2 Display & Retrofit Kit

Operating Voltage: 8-32V DC
Current Consumption:
1 A @ 12 V
500mA @ 24V
Operating Temperature: 0 to 50C
Nonoperational/Storage Temperature: -20 to 60C

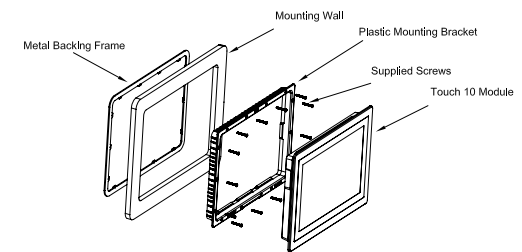

Comes with: Touch 10, manual, Metal Backing frame, Plastic Mounting Bracket, 12x Mounting Screws, power cable, CZone drop cable
Internal Wifi/Hotspot capability: No

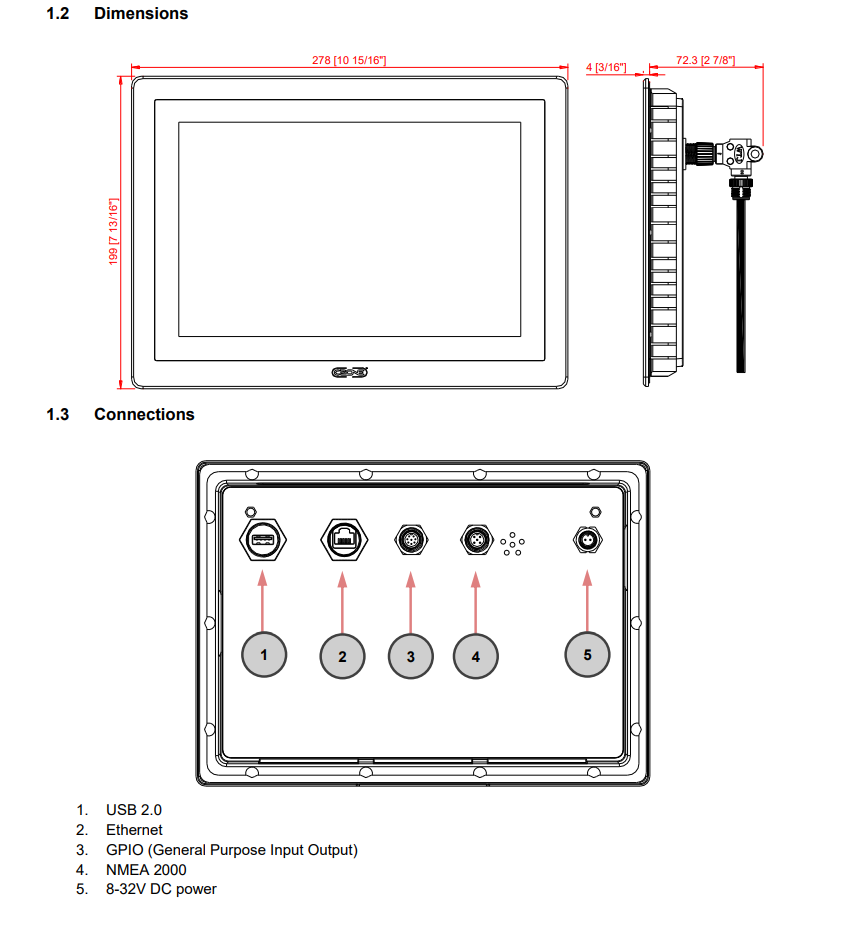

Ethernet Port: Yes, RJ45

Display: LCD with IPS
Aspect Ratio: widescreen 16:10
Touch screen: Projected Capacitive
Brightness:500 nits(cd/m2)
Color depth: 18 bit RGB
Interfaces: USB 2.0, Ethernet, NMEA 2000, WiFi
CPU: Freescale ARM Cortex-A8 1GHz
Certification: CE, FCC Class B, NMEA
Ingress Protection: IPx66

Mounting Bracket screws: 12x included
We recommend mounting to a hinging door/wall, or anywhere allowing easy access to the rear of the screen, for updates, servicing, and replacing.

This is part number is the 2nd generation Touch 10 display and includes the retrofit plate for the 1st generation Touch 10.

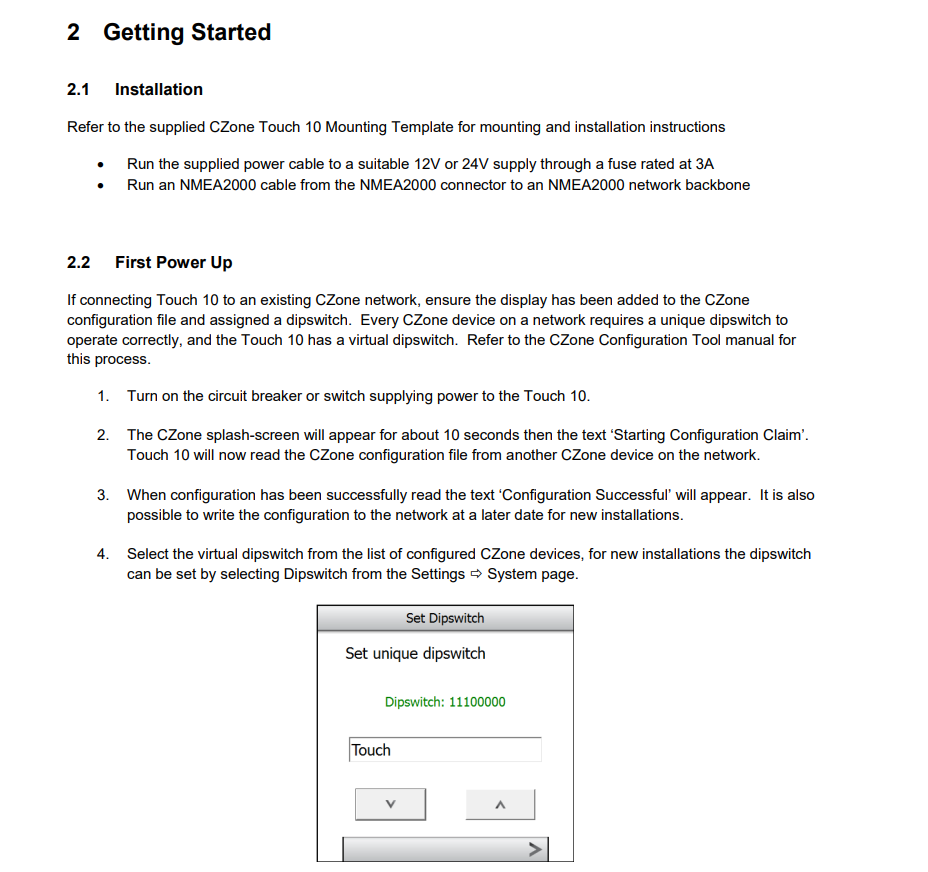

How to swap a CZone screen out:

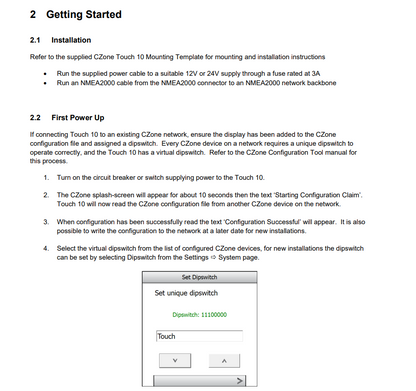

1) find the dip switch address of your existing display, either through the configuration tool or in the screen itself
2)Power down the old screen
3)Insert a small flathead screwdriver into the center bottom of the screen bezel and gently pry screen out of flange.
3)Plug in all prior connections into new screen and snap in to place
4) Supply power to the screen
5) Upon start up, match the dip switches to the previous screen when prompted
5) Configuration will automatically load and you are ready to use your screen

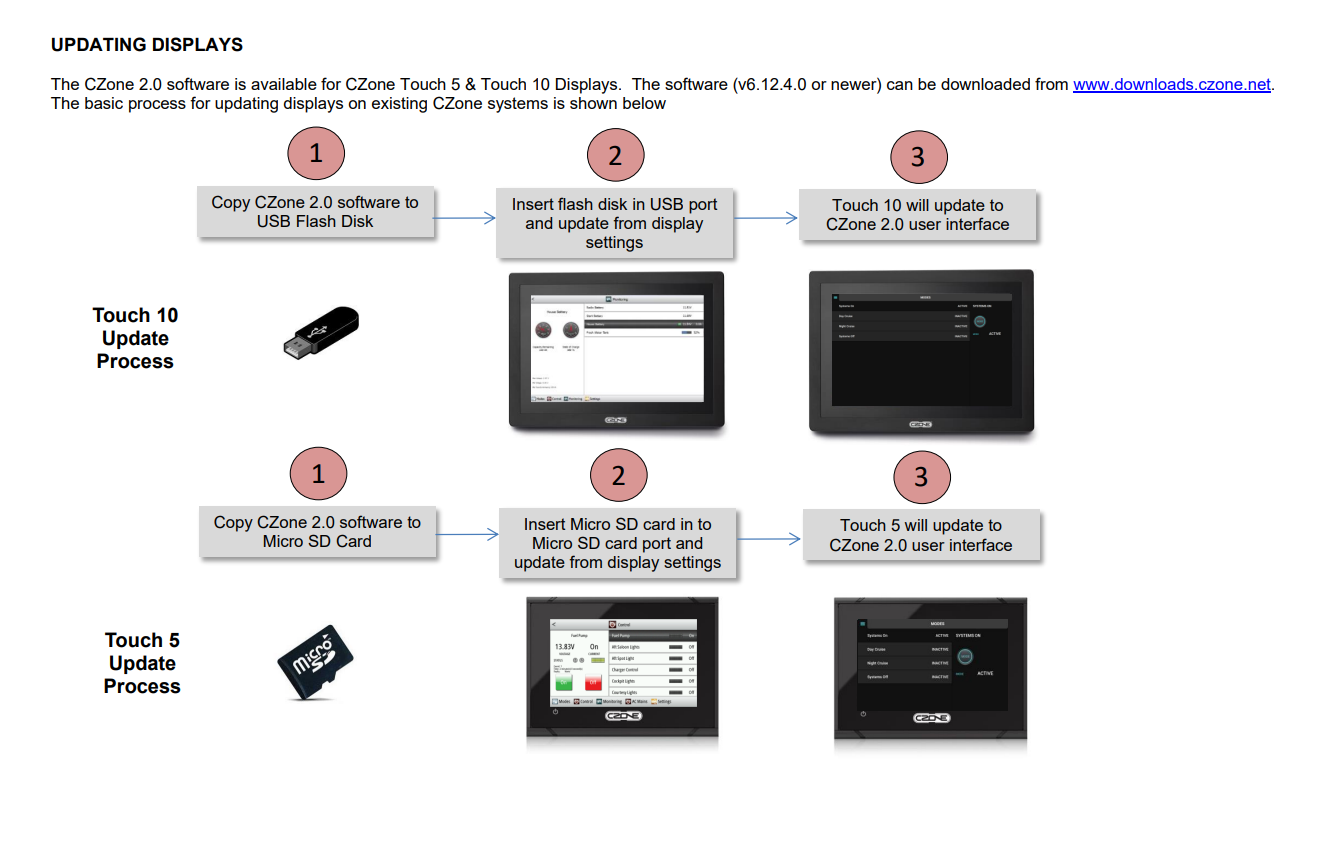

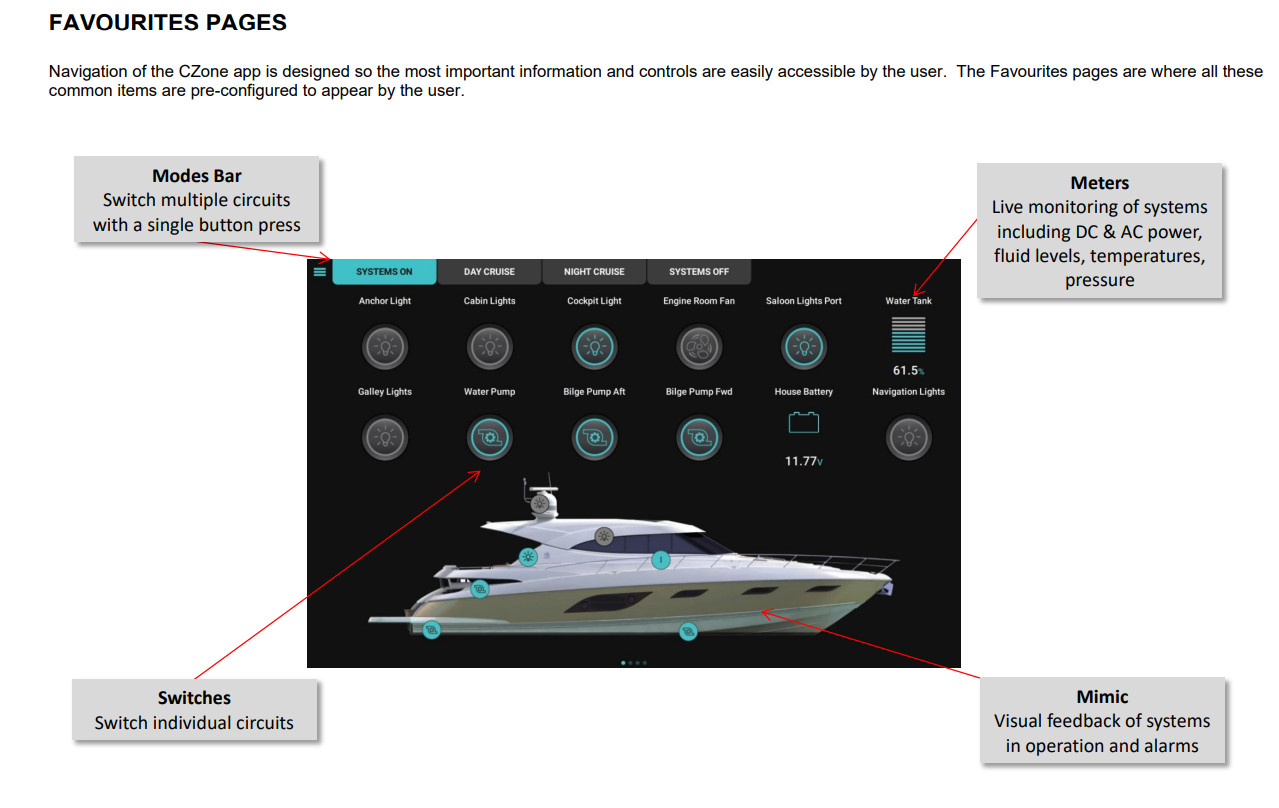

Firmware updates & favorites pages must be done with an 8-32GB, FAT32 USB drive, plugged into the USB port in the back of the unit. Give us a call to discuss.
Latest firmware can be found here: https://downloads.czone.net/

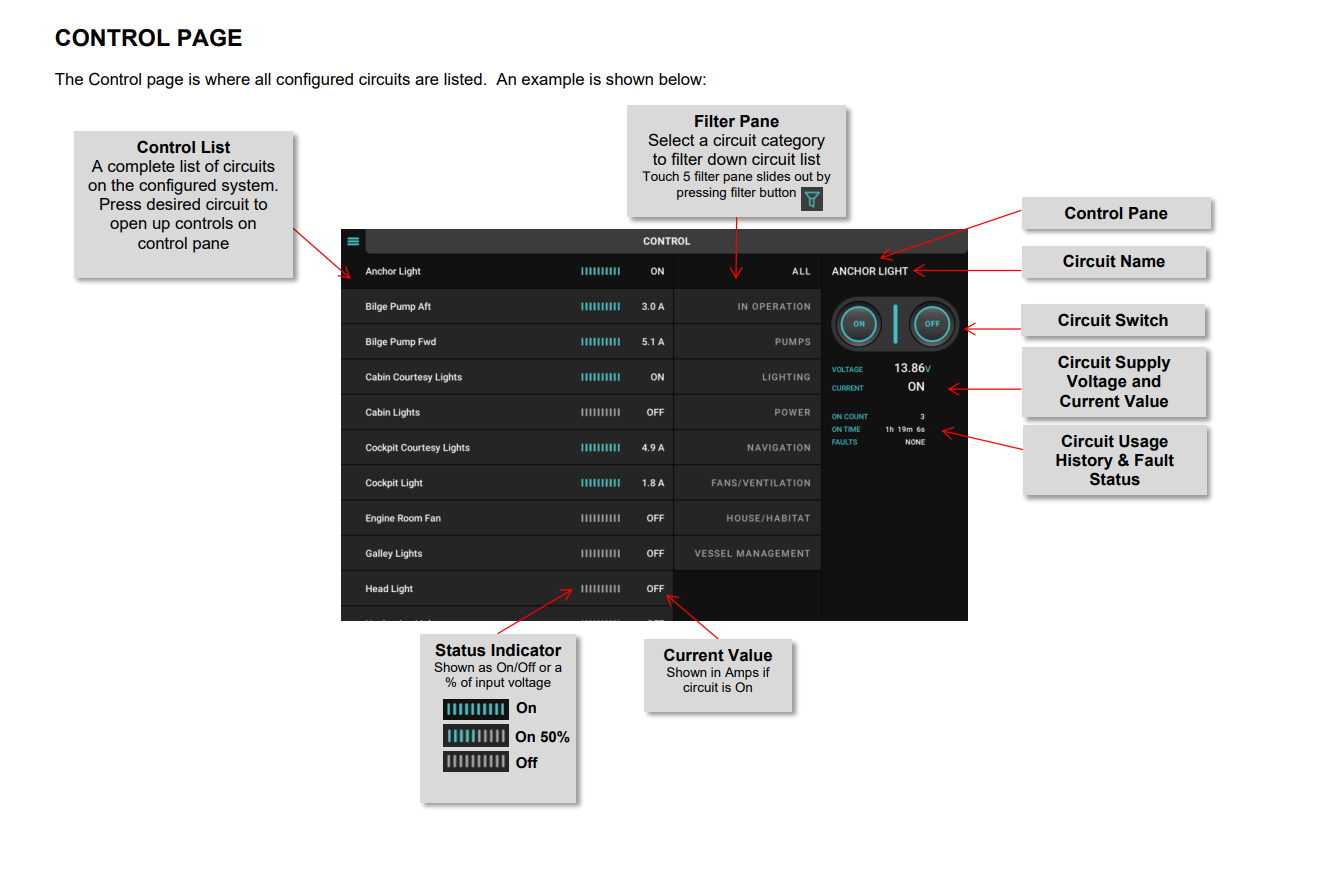

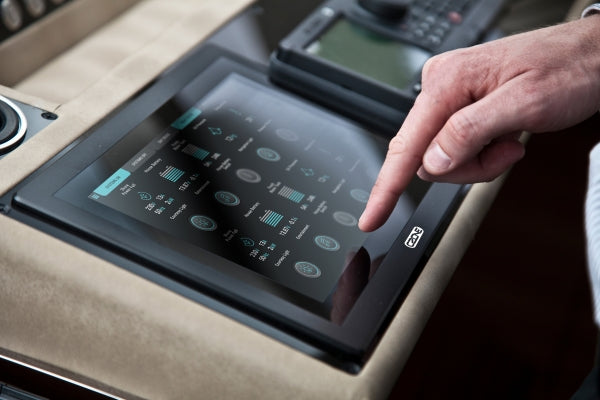

Imagine this: you hop onto your boat, hit one button, and have lights, outlets, generator, TVs, or anything you've configured to turn on, so that you can worry about loading gear and making sure your family is safe. You are ready to leave, you hit cruising mode, MFDs, nav lights, AIS, radar, or whatever you'd like to turn on or off: you are ready to go in the touch of a button. This is the dream that come true with the CZone Touch Interfaces, letting CZone do the thinking, so you can enjoy your time on the boat.

A great thing about all CZone modules is that whenever software is uploaded to the network, every CZone module will hold all of the information inside it. This means that if one of your modules needs to be replaced, you should be able to match the dip switch address of your new module to the same as the old one, plug it into the system, and the other modules in the network will take identify the new module and automatically program it. This makes changing a display or module easy, anywhere in the world without special software and internet.

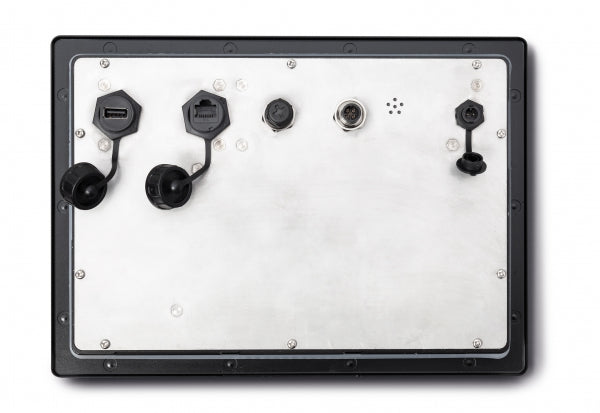

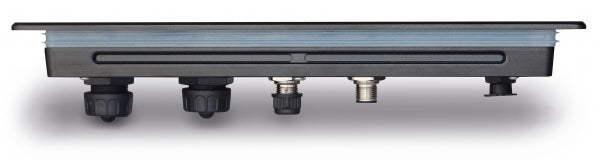

The Touch 10 includes an RJ45 ethernet port on the back of the unit. This port can be connected to your vessel/vehicle router to transmit the screen data to an iPad to allow wireless control while onboard. This feature is free and only works when on the local hotspot.
