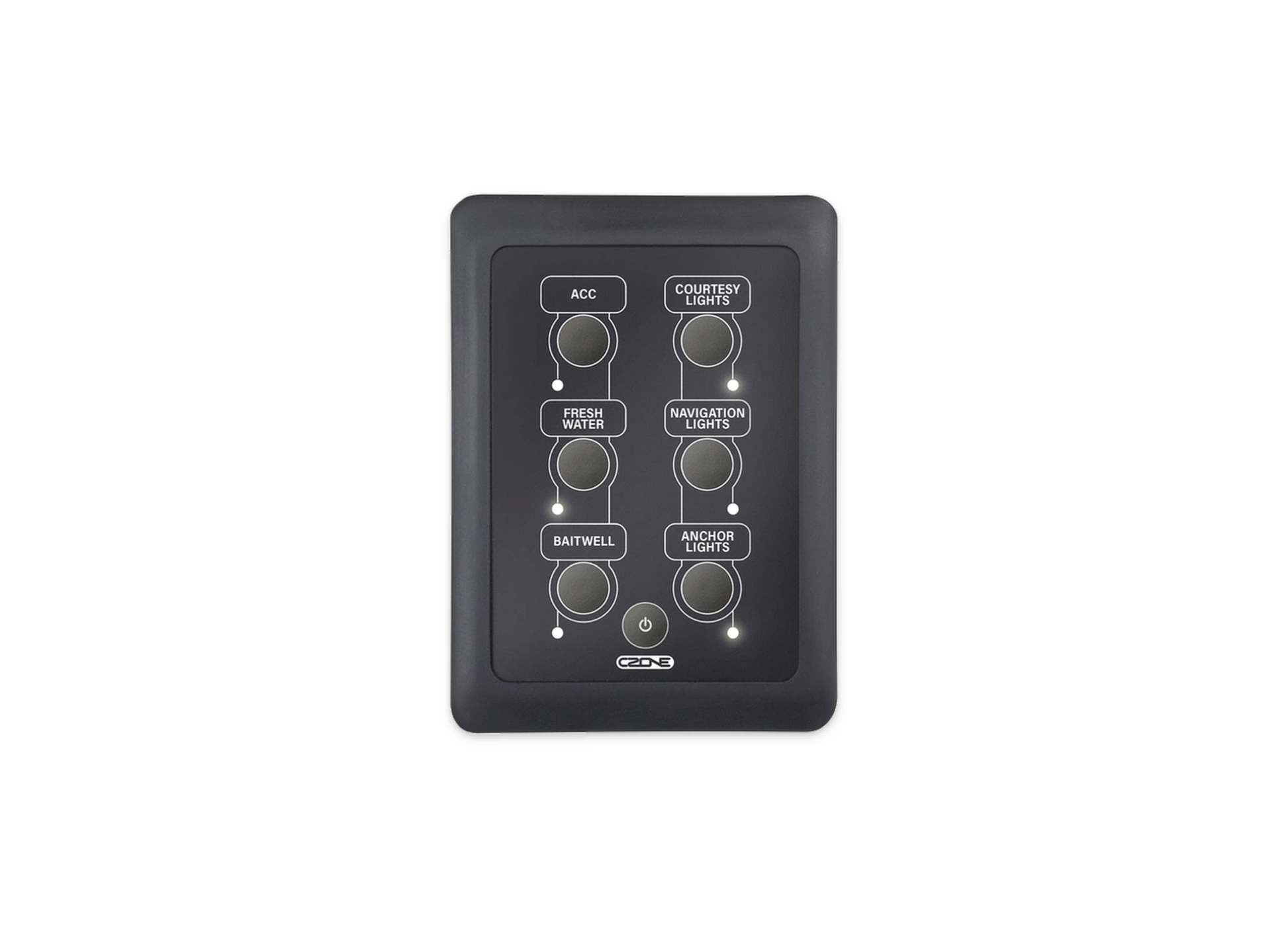

CZone 80-911-0163-00 Waterproof Keypad - Portrait
CZone 80-911-0163-00 Waterproof Keypad - Portrait
SKU:CZN80-911-0163-00
The CZone Waterproof Keypad (Portrait) is designed to pair seamlessly with any CZone system, offering the most cost-effective and straightforward solution for integrating digital switches onto your boat. Whether you need full NMEA or CZone integration—with switches appearing on your MFDs or touch interfaces—or a robust standalone control station, this keypad delivers reliability and ease of use.
This listing includes only the CZone Waterproof Keypad. For a complete setup, you can purchase the Contact 6 Plus with the load connector and seal here.
A USB Interface tool is required for programing
Features:
- IPx7 rated: Water Immersion-proof in up to 1 foot of water, injuring durability in marine environments.
- Included Label Set: Comes with 60 of the most common circuit labels for easy customization.
- Compact and versatile: Perfect for CZone and NMEA systems, offering flexibility and a space-saving design.
- Momentary or Toggle switches: Equipped with blown fuse lights and fault codes for quick diagnosis.
- RGB backlight with dimming: Customizable backlighting for optimal visibility in any lighting condition.
- Standalone Capability: functions as a standalone digital switching system with simple wiring(using smart harness or NMEA cabling)
- Easy installation: No crimping required, making setup and replacing hassle free.
Specifications
Specifications
Operating supply voltage (NMEA2k power): 9-16V
NMEA2k Power Consumption:
maximum of 56mA @12V
1.8mA @12V(standby)
Comes with: Portrait Keypad, 60 Circuit Labels, Screw shielding bezel, 4 mounting screws, gasket
Certification: CE, ABYC, NMEA, ISO8846/SAEJ1171 Ignition Protected
Ingress Protection: IPx7
Operating Temperatures: -15 °C to 55°C
Storage Temperature(nonoperational): -40 °C to 85°C
Alarms(shown in CZone): Fuse Tripped
Installation Details
Installation Details
3 Amp inline fuse is reccomended
To use the Waterproof Keypad, you will need a Contact 6 Plus module, and NMEA connection, optionally being a Smart Harness, sold separately.
If using as a standalone switching station, a Smart Harness is recommended, but a properly terminated NMEA network will also work the same way.
If using in a fully integrated NMEA network, plugging into a properly terminated NMEA network into a Tee is recommended, but you can also use only a Smart Harness in a network without NMEA terminating resistors.
Do not use both the Smart Harness and NMEA terminating resistors in the same network.

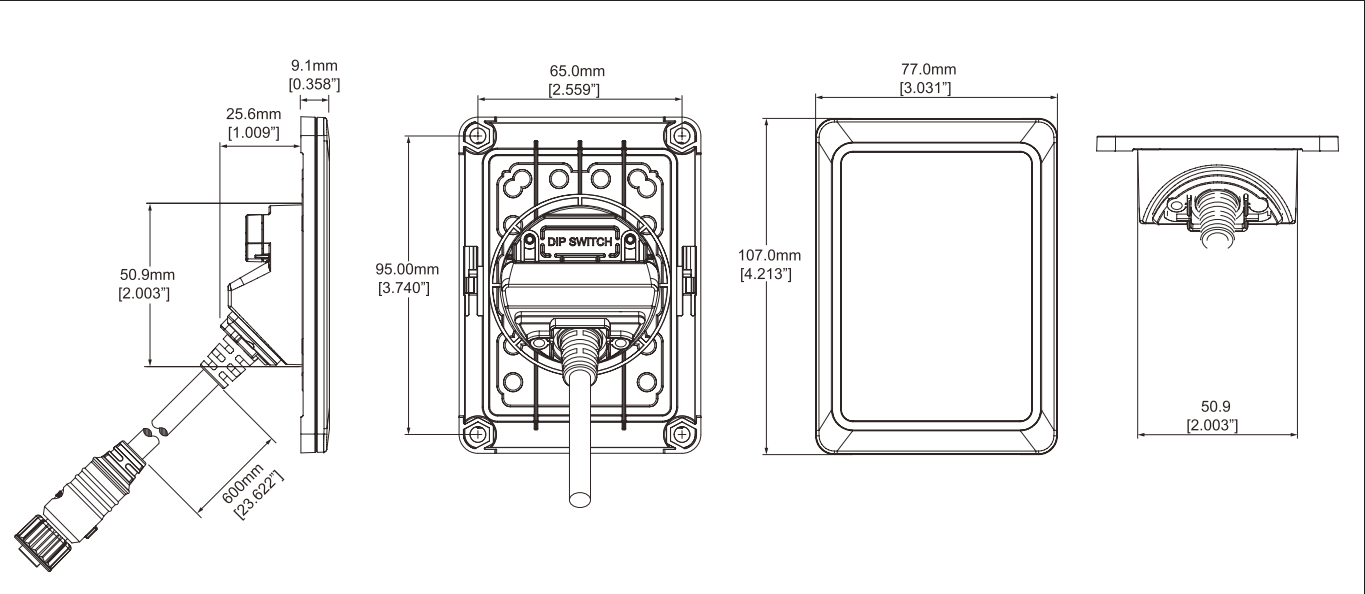

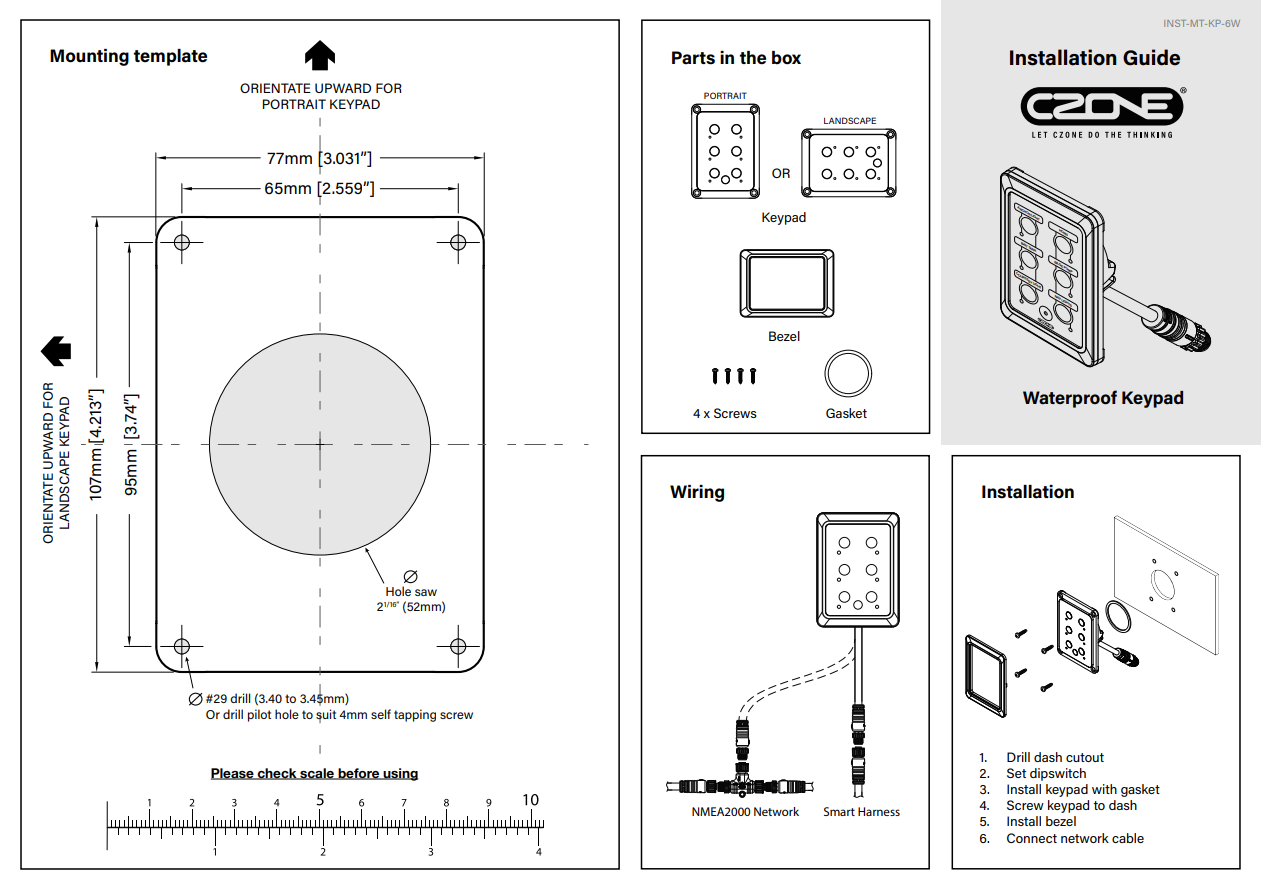

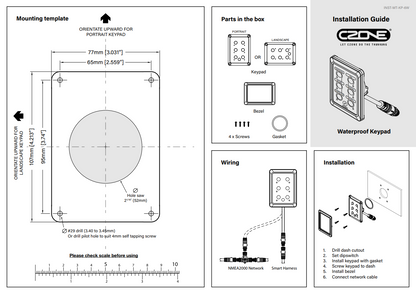

For Back Mount, use the given mounting template, and installation instructions
#29 drill (3.40 to 3.45mm)
Or drill pilot hole to suit 4mm self tapping screw
For Front Mount, consult the manual below
The Masterbus and CZone USB interface, as well as the CZone configuration tool(software) is needed to update firmware and program certain functionalities.
Pelagic Power Tip
Pelagic Power Tip
The Waterproof Keypad is a game-changer for marine digital switching, but here’s the pro move: Use the pre-terminated Smart Harness Cable to skip the crimping and ensure a clean install, then always set a 3A inline fuse for the keypad to protect against surges. The real secret? The manual override isn’t just for compliance—pulling a fuse forces the load off, while moving it to the top notch forces it on, giving you direct control even if the system glitches. Keep a spare module onboard with matched DIP switches for instant swaps, and for critical loads like bilge pumps, wire a hidden SPST bypass switch in parallel to the CZone output—flipping it routes power directly, bypassing the module entirely in an emergency. Test it once, label it clearly, and you’ve got a foolproof backup most techs overlook.
