CZone 80-911-0161-00 Contact 6 Plus w/Bilge Sense + Seal and Connector
CZone 80-911-0161-00 Contact 6 Plus w/Bilge Sense + Seal and Connector
SKU:CZN80-911-0161-00
This product has been upgraded by the manufacturer to include a Bilge Monitoring Sensor. The prior part number is CZN80-911-1060-00. The CZN80-911-1061-00 is the same product but we only sell the upgraded version.

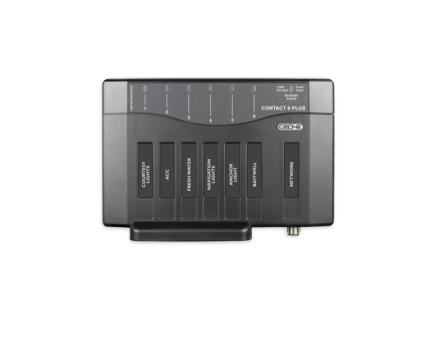

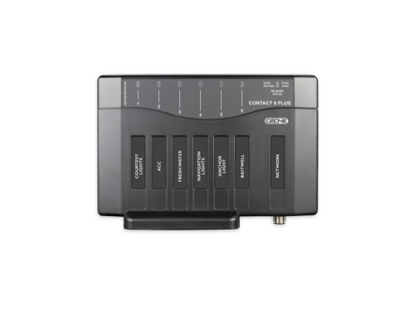

The CZone Contact 6 Plus Module offers the most cost-effective and straightforward solution for integrating digital switching into your NMEA system. It doubles as a fuse/override box, supporting up to 6 outputs and connecting directly to a CZone waterproof Keypad or an entire NMEA2k network with minimal installation and parts.
Designed for convenience, the fuses are easily accessible under a snap-on cover. The module shares premium features with the COI, including mechanical fuse bypassing and tripped fuse detection and alarm.

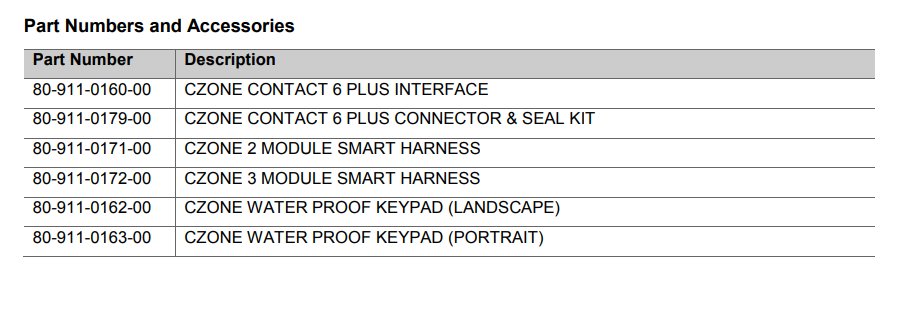

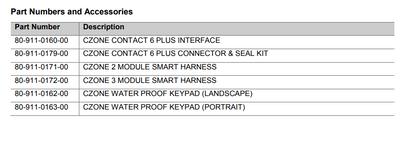

This version of the Contact 6 Plus includes only the module. The load cable connector, seal/cable gland, and front cover are available separately for purchase.
A USB Interface tool is required for programing
Features:
- Supports 6x 15A Outputs with optional paralleling for higher current applications.
- Combines the benefits of digital switching, with easy fuse access and emergency load control
-

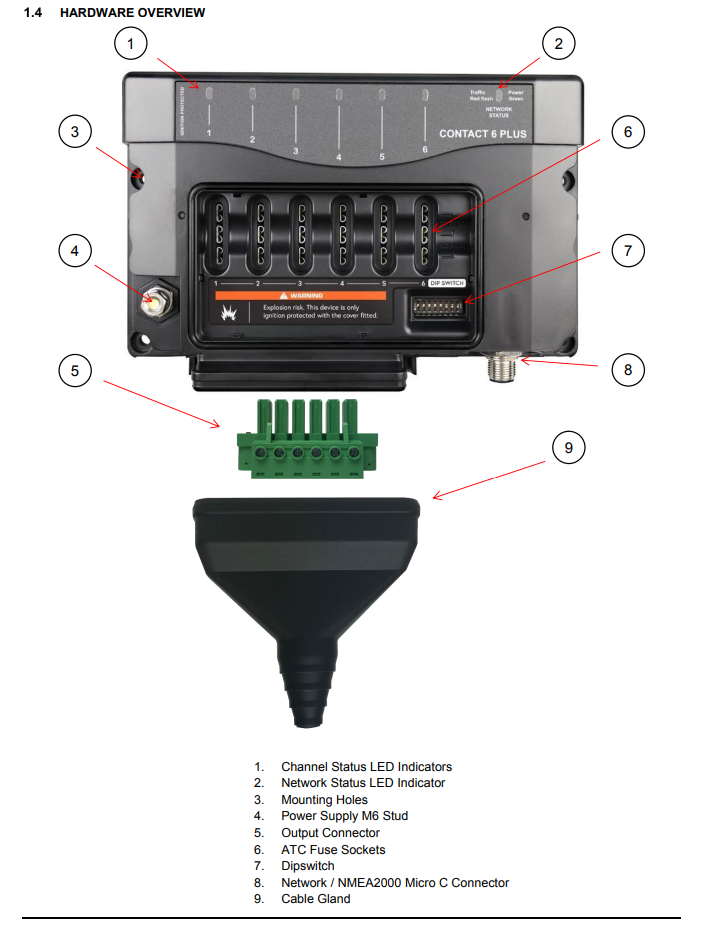

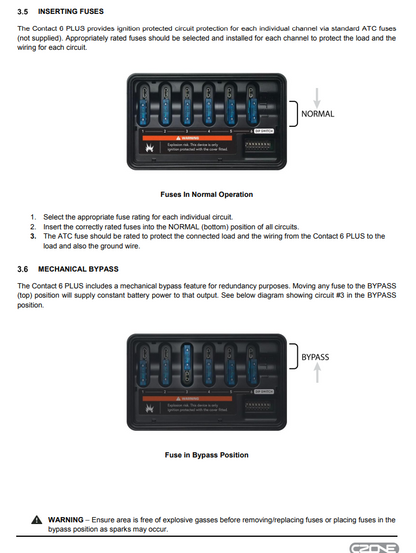

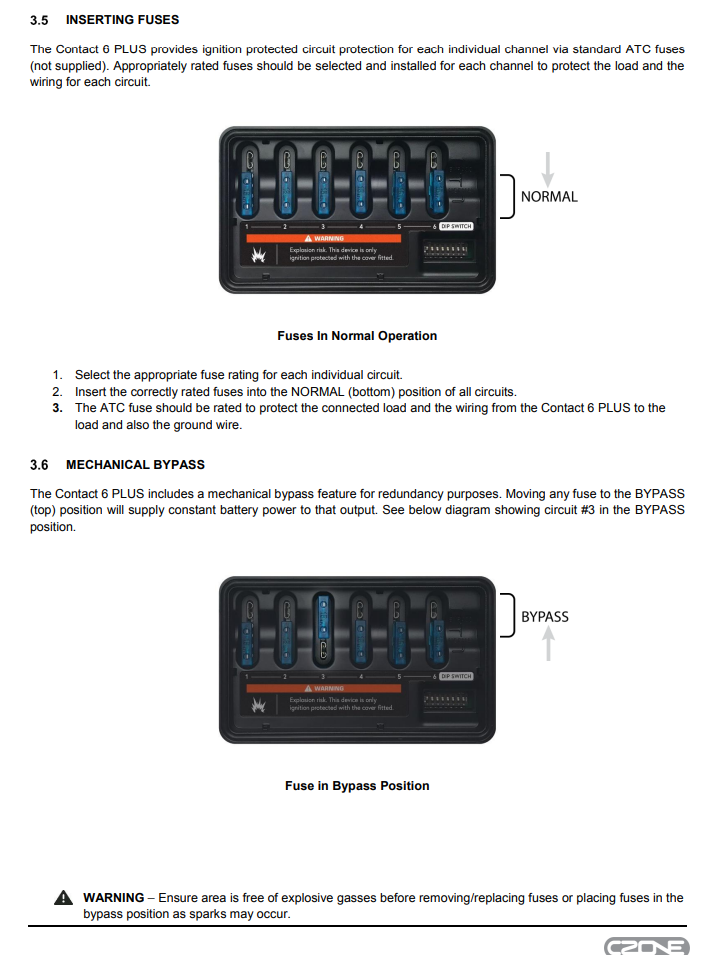

Manual Override Protection: Pull Fuses to force off or them into the top 2 notches forces loads on
- Compatible with 100Hz PWM cycling, allowing adjustable power to loads, (ideal for dimming lights).
- Compact and versatile, designed for seamless integration into CZone and NMEA systems, with blown fuse alarms.

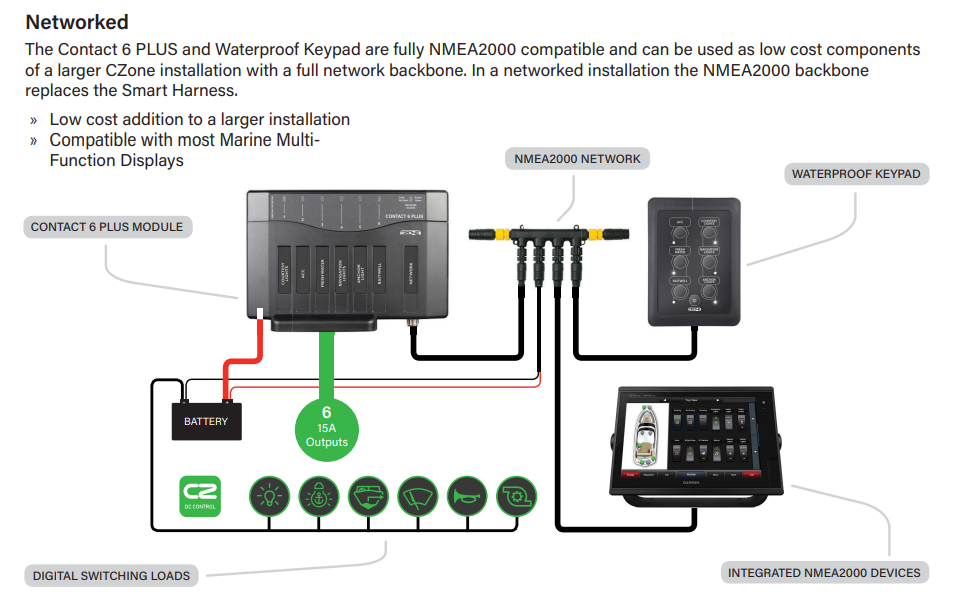

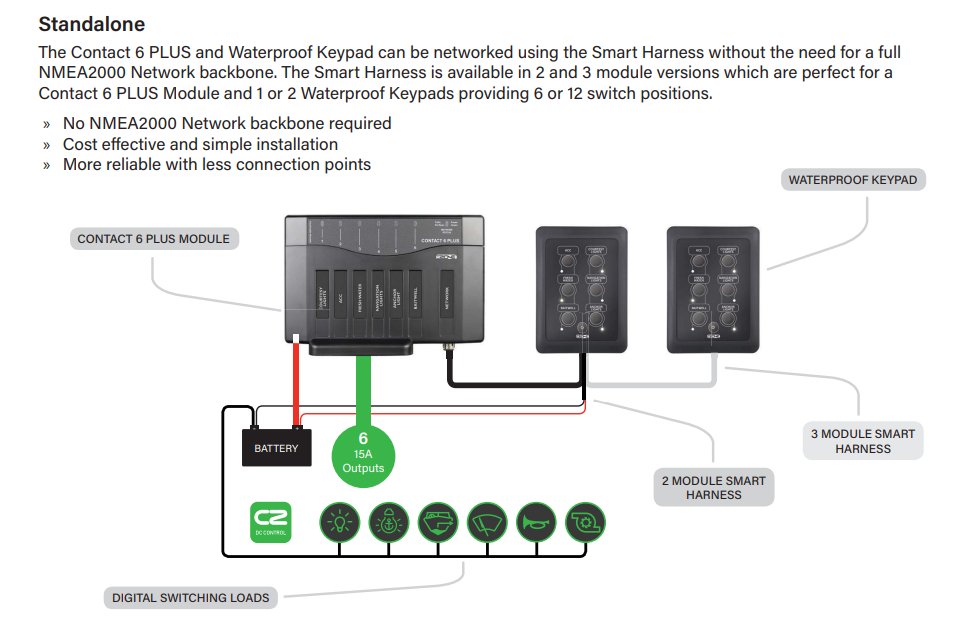

- Functions as a standalone digital switching system(with optional CZone Waterproof Keypad and Smart Harness) and requires minimal wiring
- Simple installation and replacement- no crimping required.
- Bilge Sensor is a new feature to this module.
Specifications
Specifications
Nominal Power supply voltages(at the stud): 12/24V
Operating + Power supply voltage: 9-32V
Fuse Type: ATC
8x High Current Outputs: 15A (supports PWM)
Comes with: Contact 6 Plus module, Output Connector, Cable Grommet, Top Cover
Maximum Continuous Current: 60A total
Certification: CE, ABYC, NMEA, ISO8846/SAEJ1171 Ignition Protected
Ingress Protection: IPx5
Operating Network supply voltage (NMEA2k power): 9-16V
NMEA2k Power Consumption:
maximum of 75mA @12V
0.3mA @12V(standby)
Operating Temperatures: -15 °C to 55°C
Storage Temperature(nonoperational): -40 °C to 85°C
Alarms(shown in CZone): Fuse Tripped
Installation Details
Installation Details
The Masterbus and CZone USB interface, as well as the CZone configuration tool(software) is needed to update firmware for the Contact 6 Plus.
Allowed Power cable Rating: 0.5 -6 mm (24 AWG- 8AWG)
Power supply stud: M6 (1/4")
Output channels can be paralleled to increase current past 15A, up to 60A for the whole module

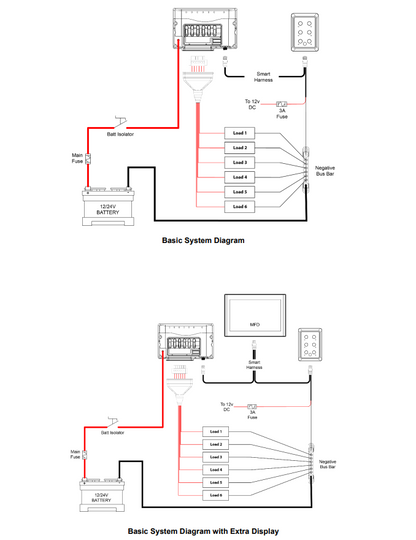

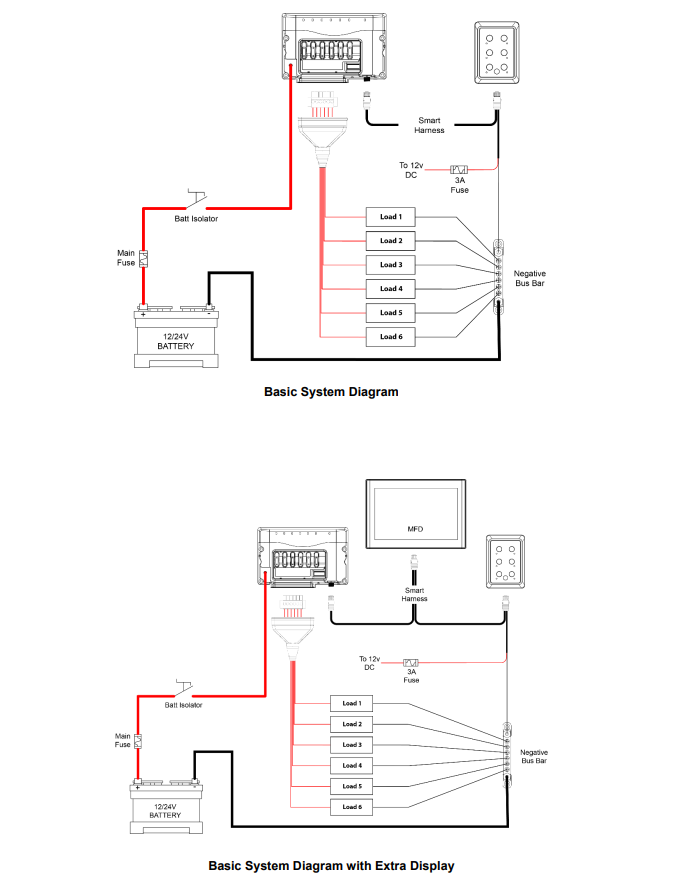

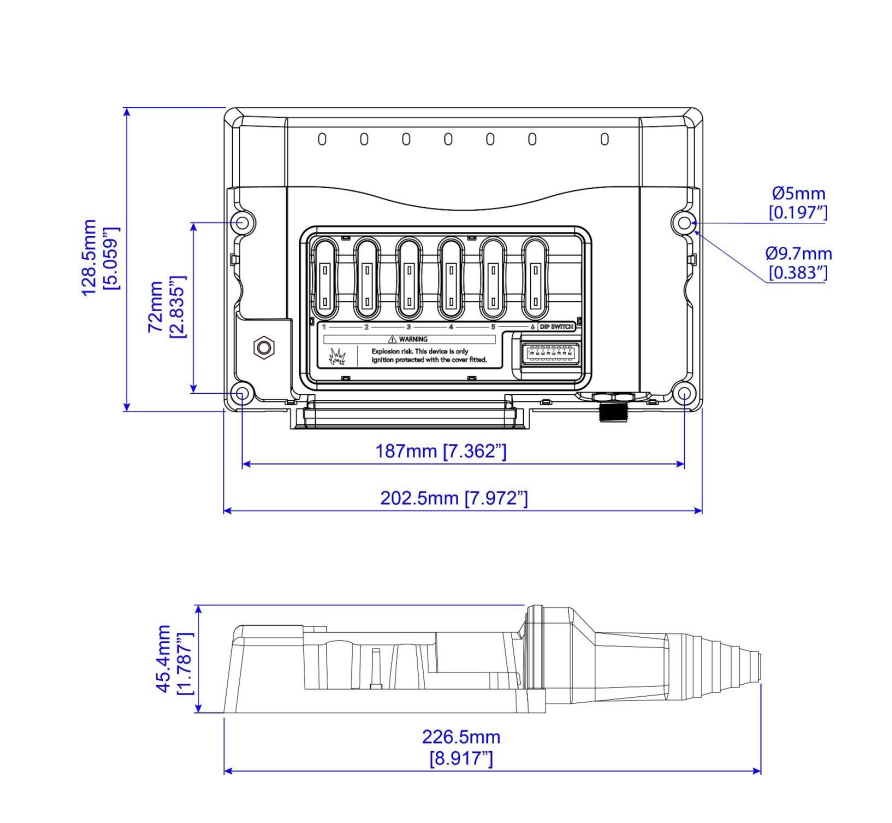

Mounting screws (NOT included): 4x 4mm or 5mm (8G or 10G) self-tapping screws or bolts
Printable Mounting template and instructions found here:
https://images.mastervolt.nl/files/Contact6Plusinstallationguide.pdf
Use a sufficient cable to be able to handle the maximum amperage of all the loads, and a properly chosen fuse to protect the cable (rule of thumbs is the fuse should be rated for 80% of the wire's continuous rating)
The ATC fuse chosen should be appropriately rated for each individual load.
Pelagic Power Tip
Pelagic Power Tip
The CZone Contact 6 Plus is a game-changer for marine digital switching systems. It’s a low-cost, maintenance-friendly switching interface that integrates seamlessly into NMEA2k networks, making it ideal for both OEMs and end-users. Whether you're upgrading an existing system or adding a few extra outputs, this compact module delivers high amperage, easy installation, and manual override protection—all in one package.
Always keep a backup Contact 6 Plus module for critical systems. In case of failure, swapping out a module is as easy as matching the DIP switch settings and plugging it in. This ensures minimal downtime and keeps your vessel’s systems running smoothly.
The CZone Contact 6 Plus is the most cost-effective and straightforward way to bring digital switching into your NMEA system. Its versatility, ease of installation, and manual override capabilities make it a must-have for both new builds and retrofits.
Upgrade your switching system today and experience the simplicity and reliability of CZone!
