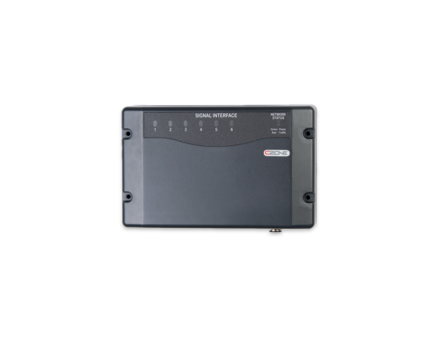

CZone 80-911-0013-00 Signal Interface with seals and connector
CZone 80-911-0013-00 Signal Interface with seals and connector
SKU:CZN80-911-0013-00
The CZone Signal Interface offers a space saving, cost-effective solution for integrating a wide range of inputs into your CZone network. Whether you need to connect sensors, tank monitors, switches, meters, or other devices, this interface makes it easy to monitor and control your system, even allowing you to program events based on input status.
A USB Interface tool is required for programing
Features:

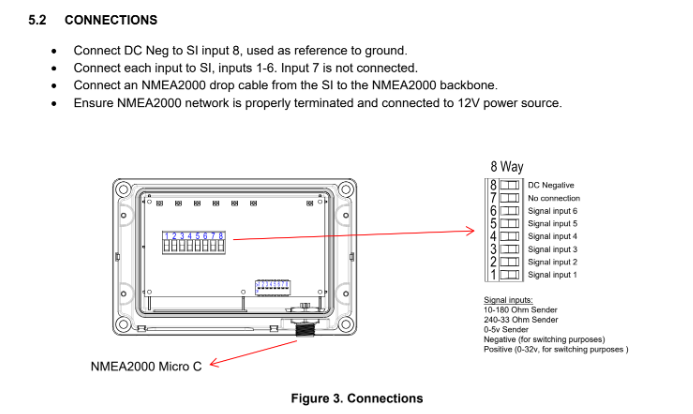

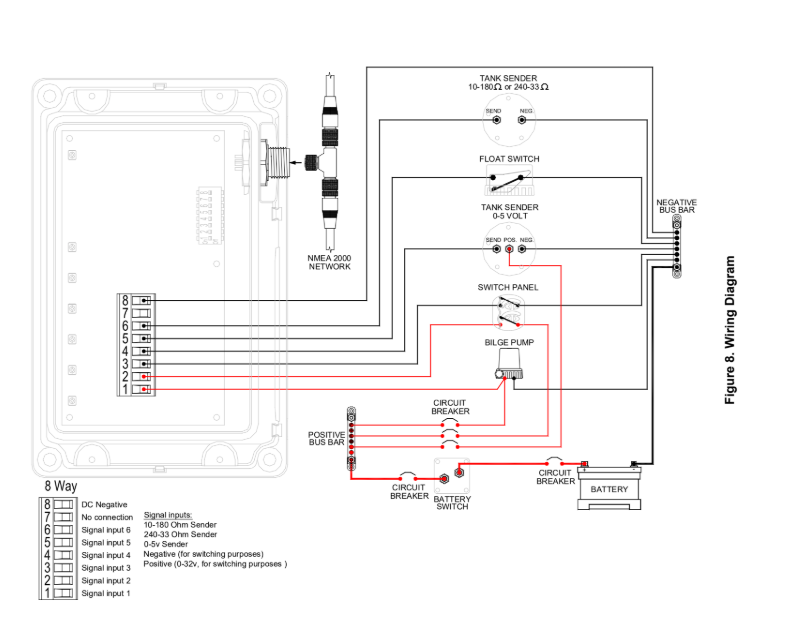

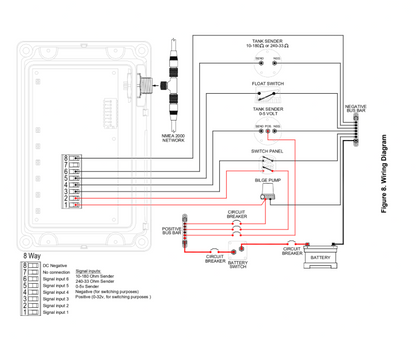

- Supports 6 inputs, including:
- Resistive(0-1000Ω) and voltage (0-35V) based inputs for positional and hatch senders
- Compatibility with most switch inputs, enabling alarms or output control.
- Broad support for industry-standard sensors and monitors, due to its wide resistance and voltage range.

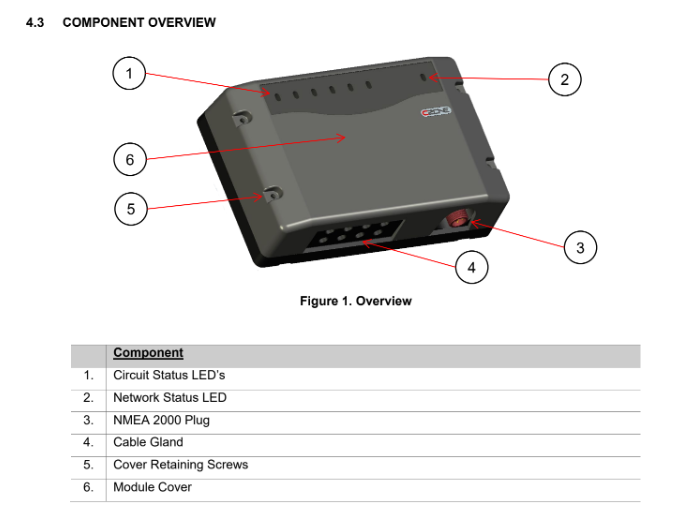

- Network and individual input indication lights with flash codes for quick troubleshooting.
Unlock the full potential of your CZone digital switching system with seamless input integration.
Specifications
Specifications

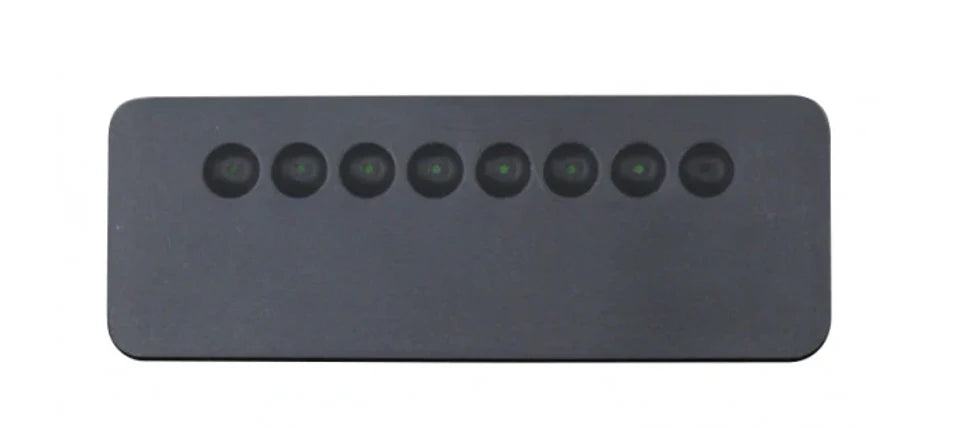

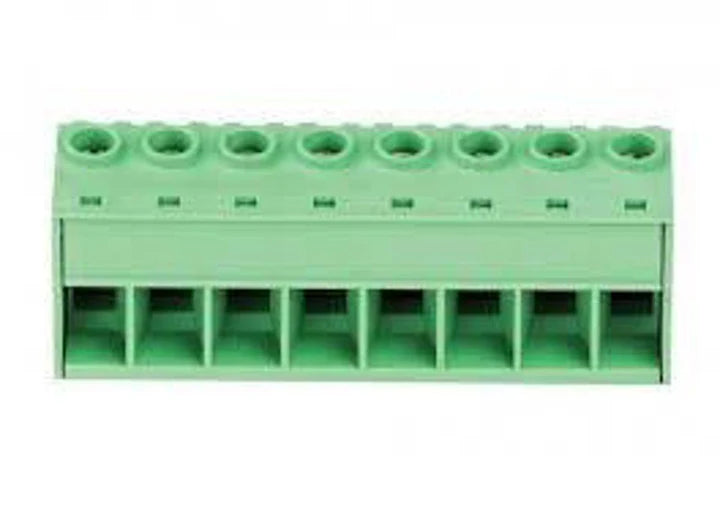

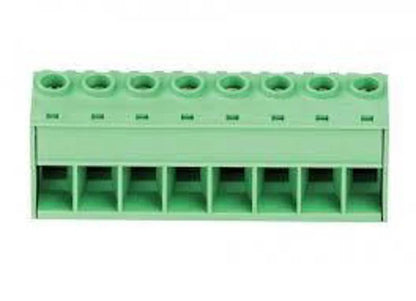

Comes with: Signal Interface module ,Cable Seals, Cable Gland, Terminal Block
Certification: IEC EN 60945,IEC EN 61000,FCC Class B,ISO 7637 - 1,ISO 7637 - 2,
Ingress Protection: IPx5
Operating Network supply voltage (NMEA2k power): 9-16V
NMEA2k Power Consumption:
maximum of 75mA @12V
0.3mA @12V(standby)
Operating Temperatures: -15 °C to 55°C
Storage Temperature(nonoperational): -40 °C to 85°C
Alarms(shown in CZone): Fuse Tripped
Installation Details
Installation Details
The Masterbus and CZone USB interface, as well as the CZone configuration tool (software) is needed to update firmware for the Contact 6 Plus.
Entirely powered by NMEA network

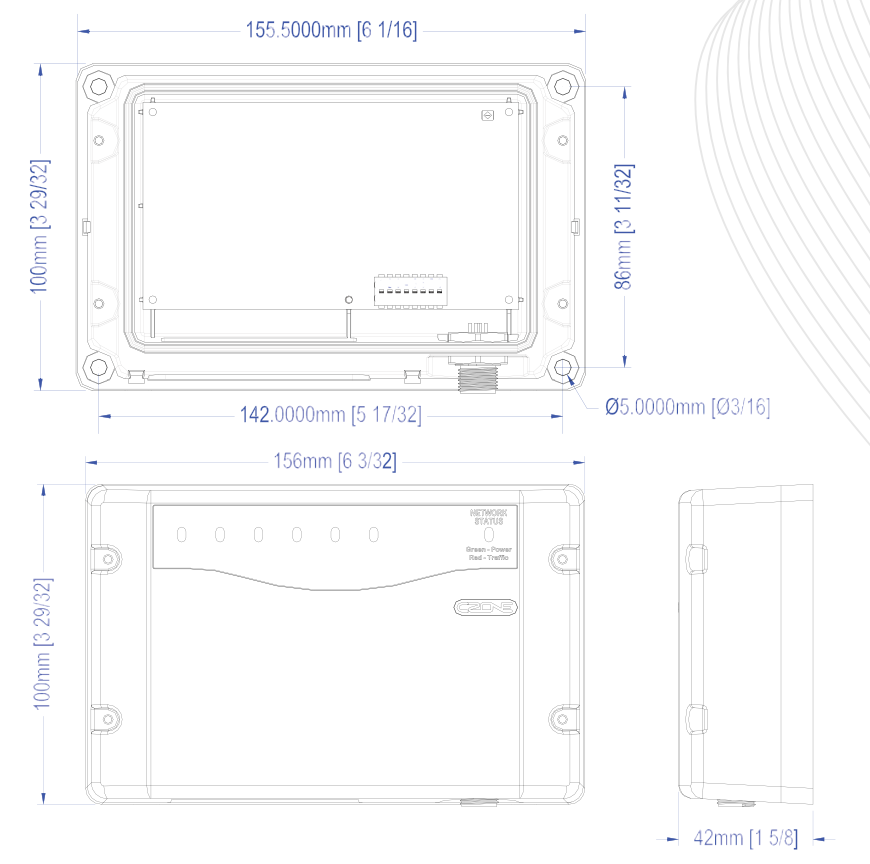

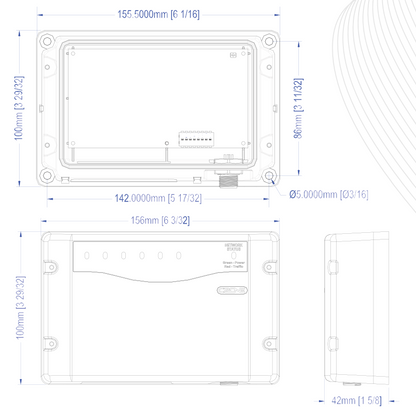

Mounting screws (NOT included): 4x 4mm or 5mm (8G or 10G) self-tapping screws or bolts
Pelagic Power Tip
Pelagic Power Tip
If you’re like us, you want your boat’s systems to be simple, reliable, and easy to manage—without a rat’s nest of wires or complicated setups. That’s where the CZone Signal Interface comes in. It’s basically the Swiss Army knife for adding extra signals or inputs to your CZone network. No need for a full Control Output Interface (COI). If your inputs are already wired, this little box acts as a central hub, and all you need is one CAN/NMEA connection to tie everything together. Clean, efficient, and hassle-free.
Once it’s set up, the Signal Interface does more than just monitor—it puts you in control. You can program alarms and digital switches based on what your sensors are telling you. For example, I’ve got mine set to trigger low fuel or water tank alerts that pop up on all my displays until I acknowledge them. No more second-guessing levels mid-trip. And if you’ve got security sensors, you can even automate lights or alarms when something’s off—all through CZone.

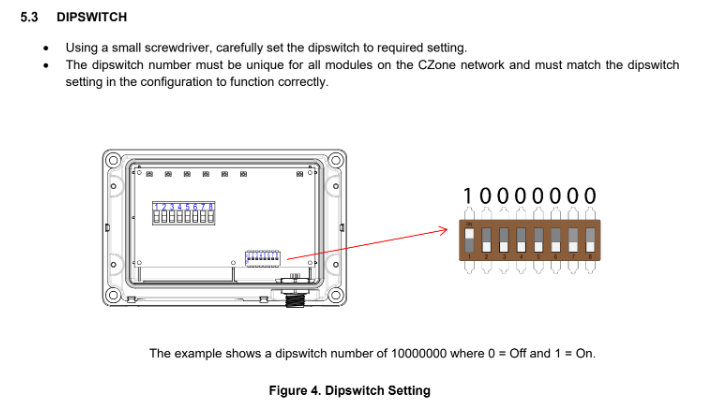

Here’s the best part: CZone modules are smart. They store all their firmware and settings across the network, so if one fails, you just swap it out, match the dip switch address, and the system takes care of the rest. I keep a backup module for critical parts like my display or network bridge—because when you’re out on the water, quick fixes are everything.
If you’re looking for a no-fuss, space-saving way to integrate sensors, switches, or monitors, this is it. And if you ever need help getting it dialed in, just give me a shout. Happy boating!
