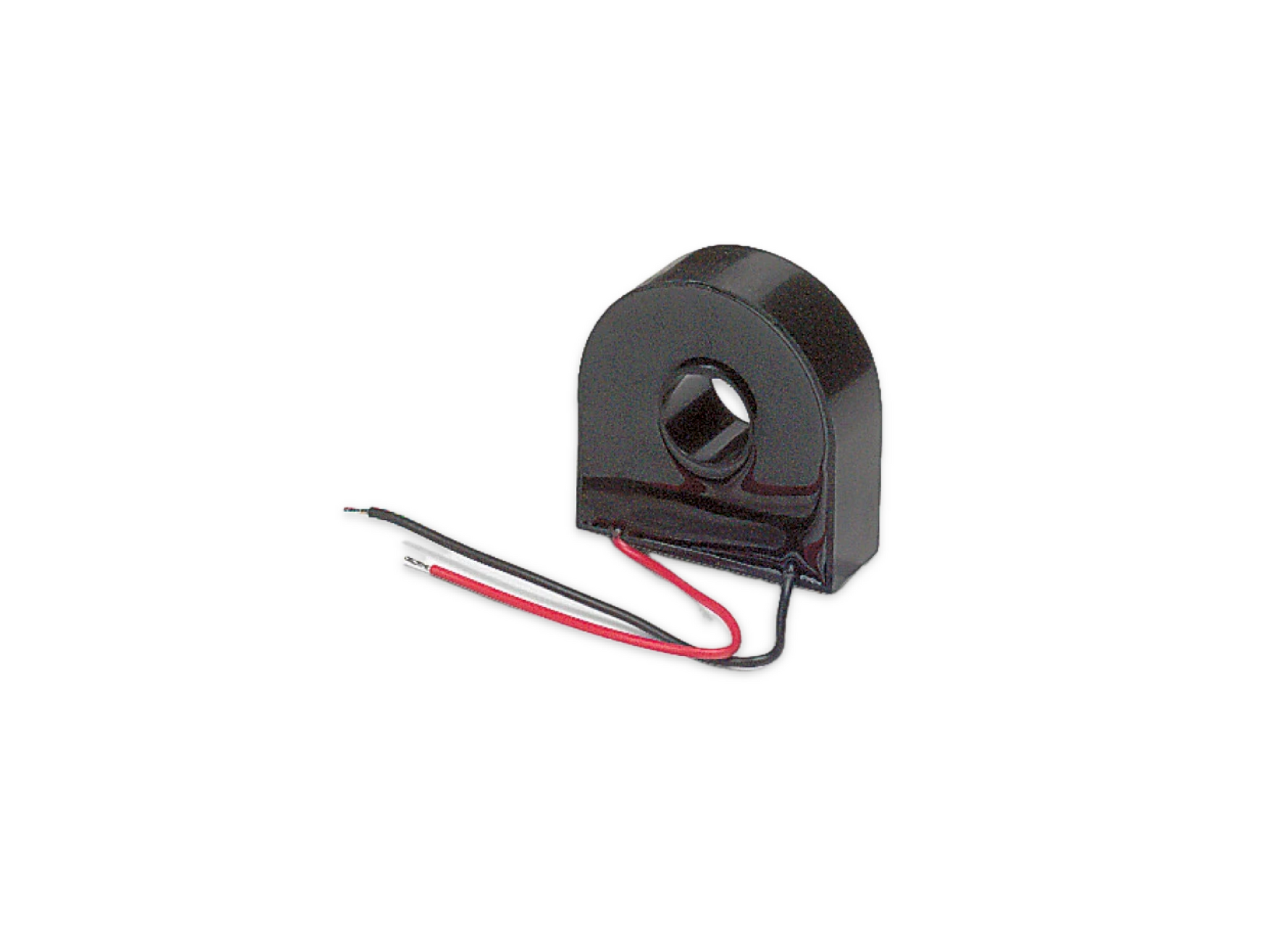

Current Transformer ct-10-3

Max Primary Current: 150A AC.
Ratio: 10:3 (common in monitoring systems).
Application: Ideal for AC monitoring, often paired with CZone or BEP Marine digital meters.
Hole Diameter: 0.5 inches (12 mm).
Compatibility: Works with 80-600-0023-00 modules.

Safety & Preparation
Power Down: De-energize the entire AC system before beginning. Working on live AC conductors is extremely dangerous.
Shorting Hazard: Never leave the secondary (output) wires of a current transformer open-circuited while the primary cable is live; this can generate dangerously high voltages.
2. Physical Mounting & Orientation
Conductor Placement: Pass the "Hot" (Line) conductor through the 12mm (0.5") center hole.
Directional Orientation: Ensure the potted (sealed) end of the CT is facing the Line (power source) direction.
Secure Placement: Use the mounting holes or supplied screws to secure the CT, ensuring it doesn't vibrate against the conductor.
The CT wires connect to a measuring device, such as the CZone Meter Interface (MI) or an AC Digital Meter (ACSM).
Pairing: For accurate readings, the CT must be paired with the corresponding voltage input (e.g., Current Input 1 paired with Voltage Input 1).
Polarity:
Connect the white wire (positive/S1) to the positive terminal (+) or Input 1/3 on the CZone MI.
Connect the black/colored wire (negative/S2) to the negative (-) terminal.
Twin-Line Systems: If you have a split-phase (120/240V) system, you must use two CT-10-3 units, one for each live leg

For a successful and accurate installation of the CZone/BEP Marine CT-10-3, keep these expert "tech tips" in mind:
Potted Face = Power Source: The most critical tip is orientation. Ensure the potted (sealed) end of the CT is facing the Line (the power source, like the shore power inlet or generator). If installed backward, your meter will show zero or negative power.
Match Pairs for Accuracy: On CZone Meter Interfaces, Current Input 1 must be paired with Voltage Input 1. If you cross-wire them (e.g., measuring current on Leg 1 but voltage on Leg 2), your wattage and power factor calculations will be incorrect.
Mind the Gap: When mounting near other electronics, keep at least 10mm of clearance around the CT and its interface module to avoid heat buildup and potential electromagnetic interference.
Secondary Wire Security: Since the CT-10-3 is often in a high-vibration marine environment, use cable ties to secure the secondary (thin) wires. If these wires vibrate loose or break while the primary AC cable is live, it can create a high-voltage safety hazard at the terminals.
Calibration Verification: After installation, use a known load (like a 1000W space heater) to verify the display. If the reading is slightly off, check the CT ratio settings in your CZone configuration tool to ensure it is set specifically for a 150A/CT-10-3 model.
