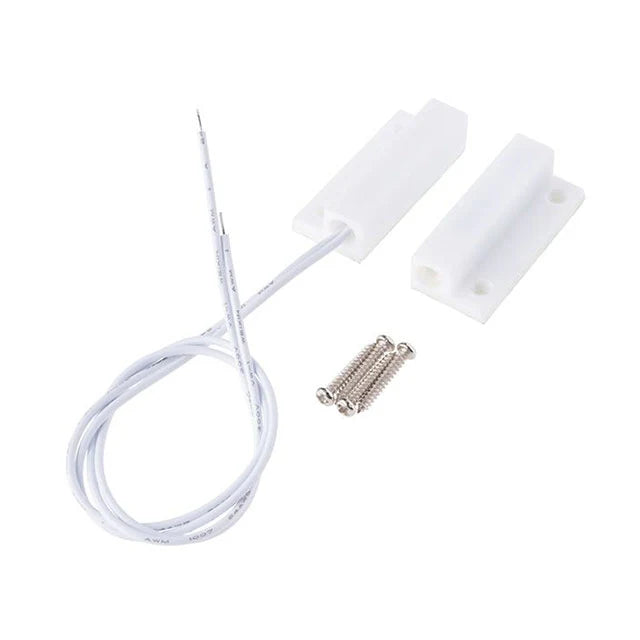

BRNKL Wired Door/Window Sensor WIRED_ALL_DOOR

BRNKL Wired Door/Window Sensor WIRED_ALL_DOOR

BRNWIRED_ALL_DOOR

$25.00 USD
$25.00 USD
Sale Sold out
The BRNKL Wired Door/Window Sensor (WIRED_ACC_DOOR)is a magnetic contact switch designed for marine security to alert boat owners and hatches, doors, or windows are opened. It integrates with the BRNKL boat monitoring system, typically connecting to the main unit's digital inputs to trigger mobile alerts or automated camera captures when an intrusion is detected.
Product Details:
  • Purpose: Primarily used for security to monitor unauthorized entry through doors, windows, hatches, or drawers.
  • Mechanism: A two-part magnetic switch where one half is mounted on the frame and the other on the moving door/window. When separated, the circuit breaks and triggers an alarm.
  • Compatibility: Designed for use with BRNKL 5G, BRNKL Blue, and BRNKL Black monitoring systems



Specifications

Type: Magnetic Contact Switch
Function: Triggers alarm/recording when separated
Installation: Wired to BRNKL input
Usage: Suitable for hatches, windows, and doors
Alert Options: Customizable via BRNKL app (Open, Closed, or Both)
Compatible BRNKL Units (via wired inputs):
BRNKL 5G: Supports wired digital inputs (up to 4) and 12-24V DC accessories.
BRNKL Blue/Black: Generally compatible with, or requiring, accessories to be wired via digital inputs.

Installation Details

Wiring: Connects directly to the digital inputs on the BRNKL base unit (often a 10-pin connector).
App Integration: The BRNKL App allows you to:
Monitor: View real-time open/closed status on your dashboard.
Alert: Receive push notifications when armed.
Record: Automatically trigger a camera to take a photo or record video upon entry.
Mounting: Sensors should be placed on a flat surface. Avoid mounting directly on large metal surfaces if possible to ensure the magnet operates correctly.

Pelagic Power Tip
