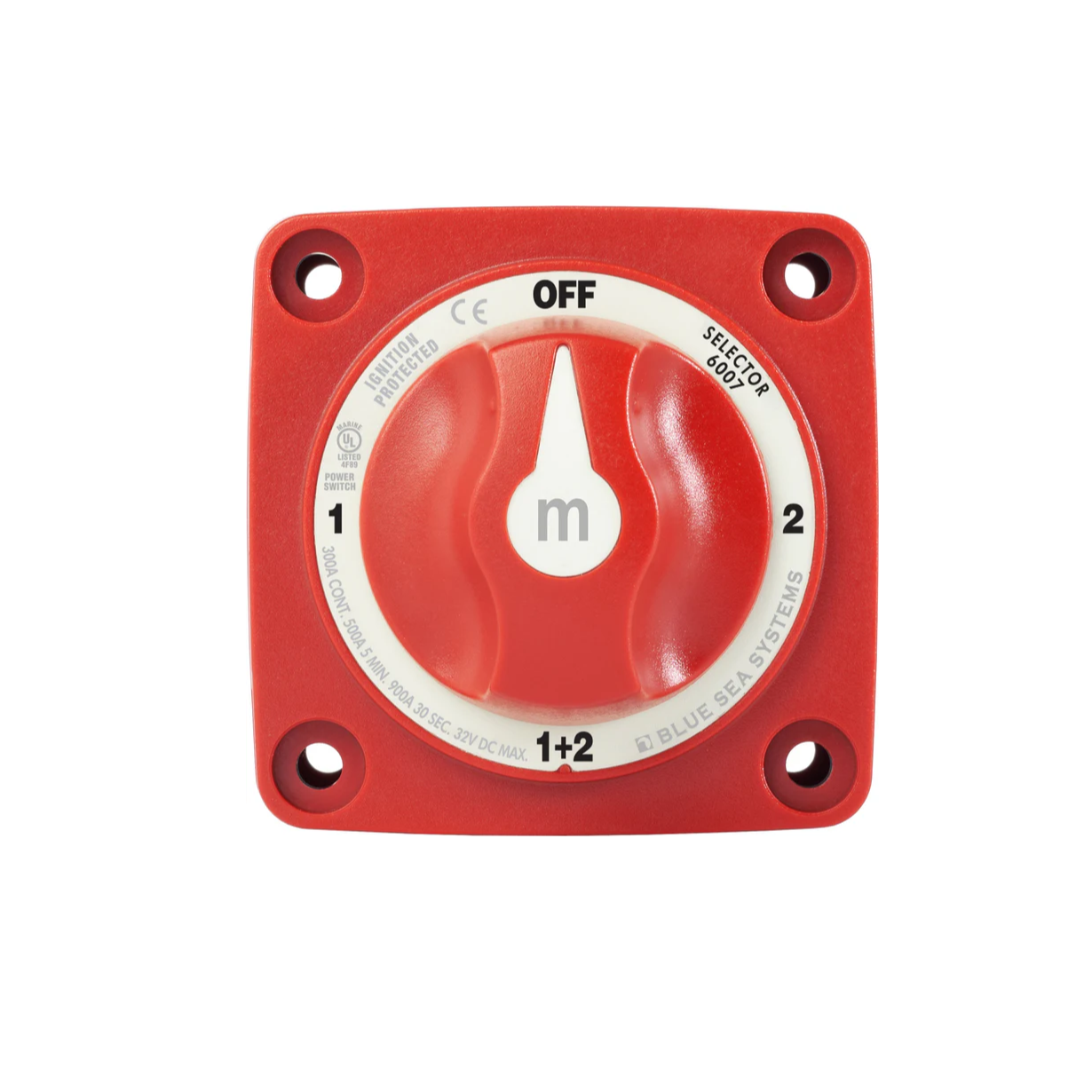

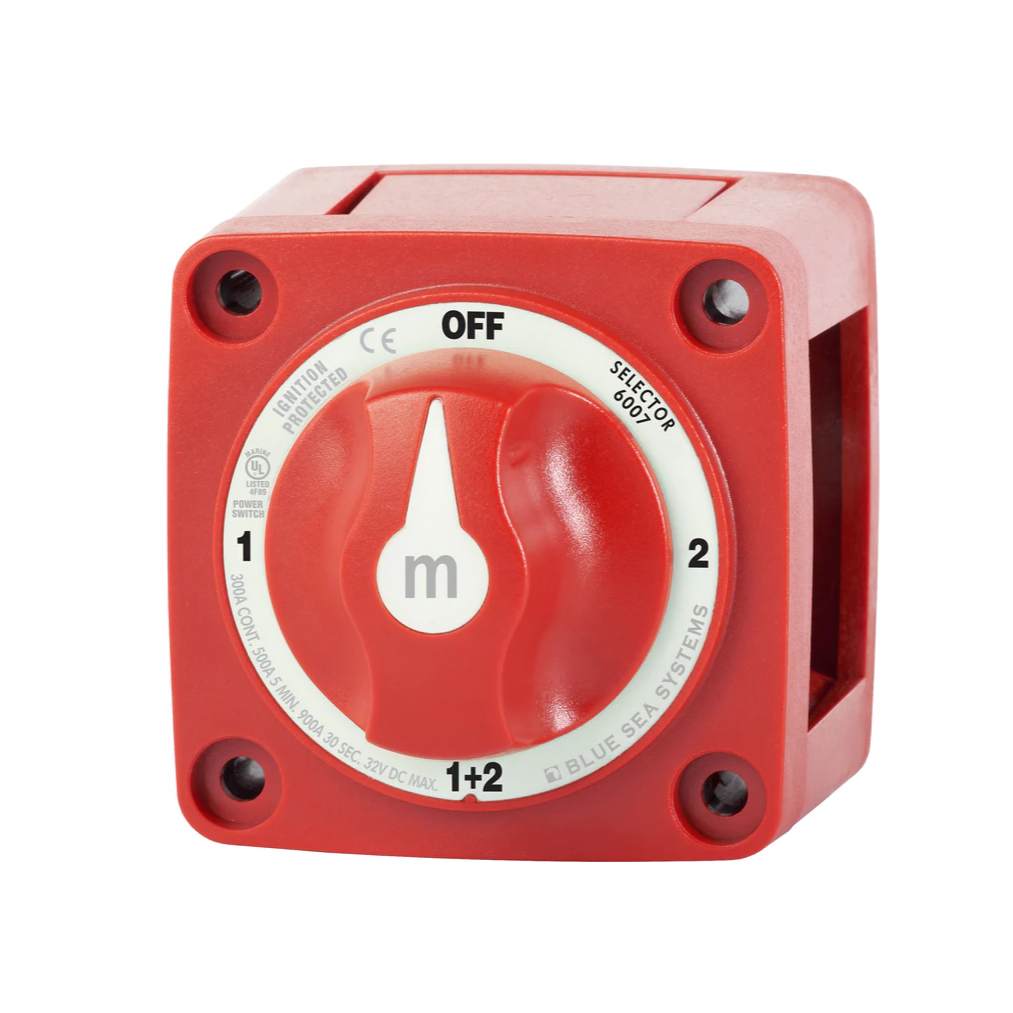

Blue Sea Systems 6007 Battery Switch 300A Selector 1/2/Combine
Blue Sea Systems 6007 Battery Switch 300A Selector 1/2/Combine
SKU:BSS6007
- 300A continuous rating
- Battery selector style 1-2-Combine
- Ignition protected - for use in gasoline engine compartments
- Able to be mounted surface mount, front panel mount, or rear panel mount
- Includes snap on rear cover
Specifications
Specifications
Max Voltage: 48V DC (No AC)
Continuous Amperage: 300A
5 Minute Intermittent Amperage: 500A
30 Second Cranking Amperage: 900A
Battery Bank Inputs: 2
Switch Positions: 4
Connectivity: Make before break
Ignition Protected: Yes, ISO 8846, J1171
Ingress Protection: IP66 - water resistant protected against powerful water jets
UL 1107
Installation Details
Installation Details
Stud Size: 3/8in
Stud Count: 3
Max Wire Size: 4/0 AWG
Mounting Holes: 4
Mounting Screw: #10
Mounting Options: Surface, front panel, rear panel
Rear cover included with slide outs
Pelagic Power Tip
Pelagic Power Tip
A battery switch is the first device you interact with when turning on a system and the last device you turn off when you end the day. Having a battery switch you can trust prevents parasitic draw on your battery bank when you are away. These 300A battery switches are small but mighty. The studs are swedged using a 1 ton press into the copper bus inside the switch. That ensures that the battery lug you connect to the stud provides virtually resistance free connection through the switch.
