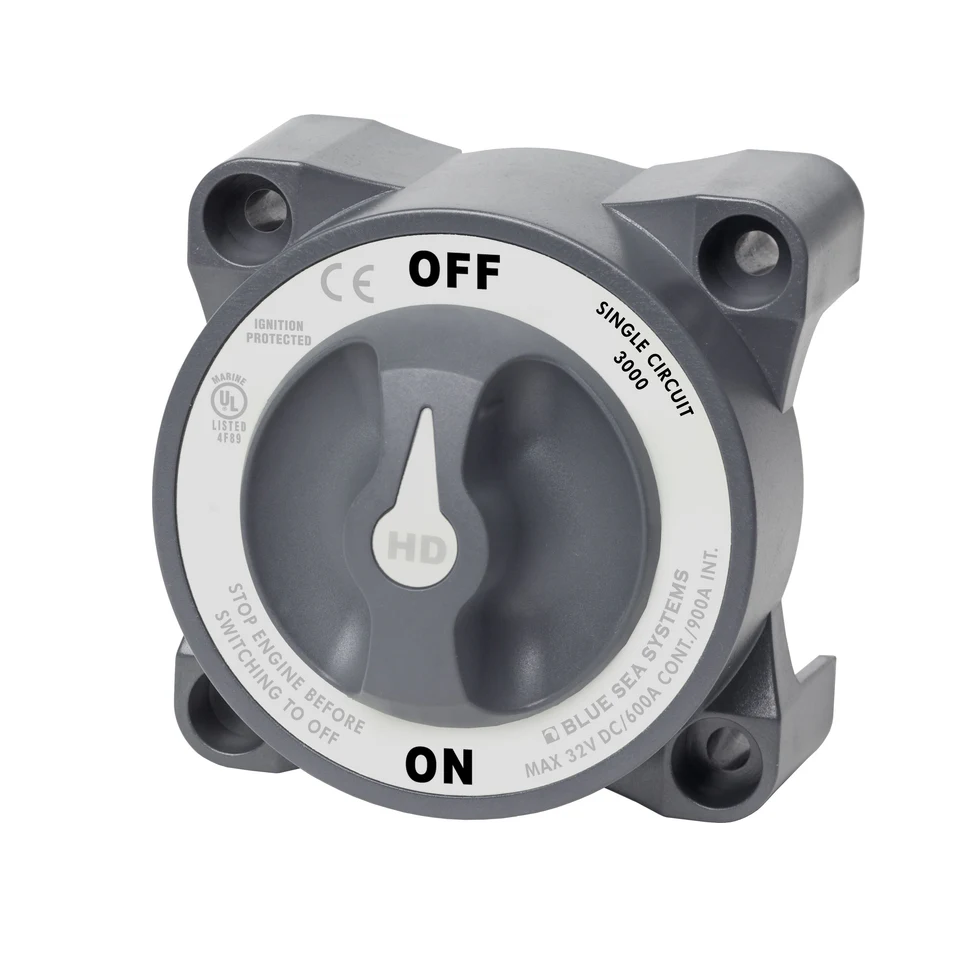

Blue Sea Systems 3000 Battery Switch 600A Heavy Duty On/Off

Max Voltage: 32V DC (No AC)
Continuous Amperage: 600A*
5 Minute Intermittent Amperage: 900A*
30 Second Cranking Amperage: 1750A*
*Requires parallel 4/0 input and output cables to meet ratings
Battery Bank Inputs: 1
Switch Positions: 2
Connectivity: Break before make
Ignition Protected: Yes, ISO 8846, J1171
Ingress Protection: IP66 - water resistant protected against powerful water jets
UL 1107

Stud Size: 1/2in
Stud Count: 3
Max Wire Size: 4/0 AWG*
*Requires parallel 4/0 input and output cables to meet ratings
Mounting Holes: 4
Mounting Screw: 1/4in (M6)

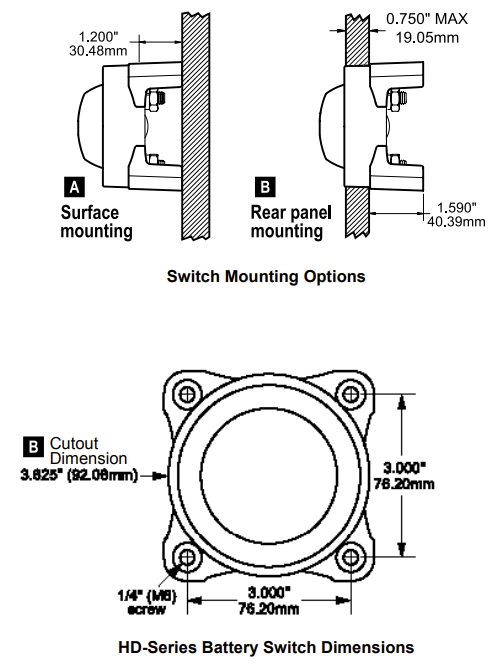

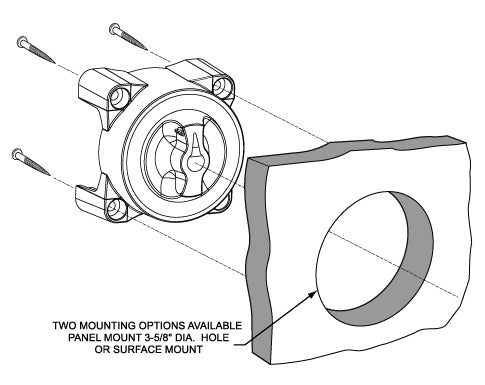

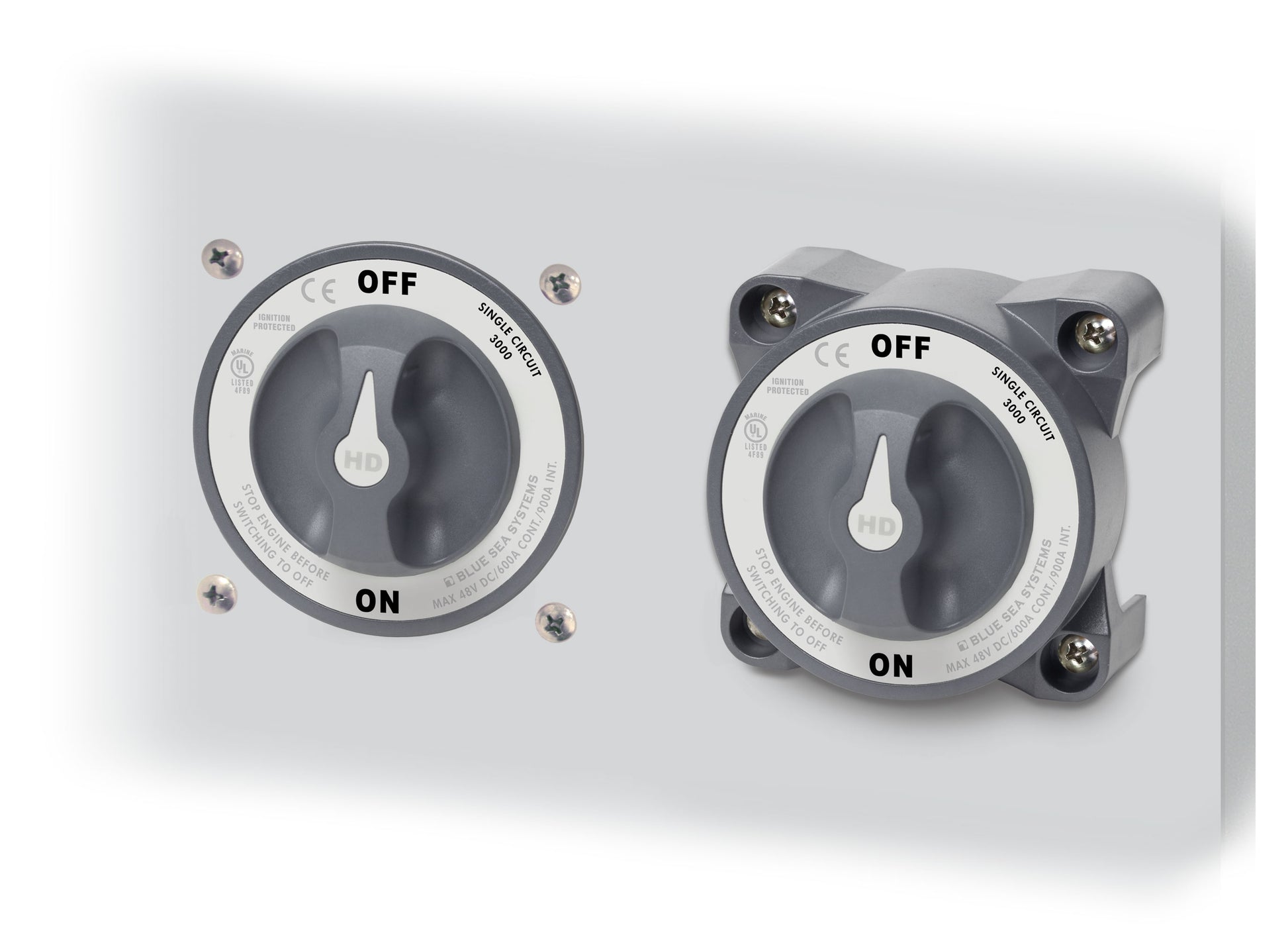

Mounting Options: Surface mount or rear panel

Do you want a battery switch that could connect power to Frankenstein's laboratory? Then this Heavy Duty switch is for you. We joke, but the Heavy Duty family of battery switches are over built in every way. They start off with 1/2in lugs to support the largest battery cables. Those massive lugs are swedged into thick electrical grade copper busses inside the switch using a 1 ton press. Then to make it easier to wire those big cables, there is an extra input/output stud so you don't have to stack lugs. All of this in a modest footprint that still fits industry hole sizes. The result is a switch with 600A continuous and 1750A cranking. Ideal for reliability in the largest electrical systems. Maybe Frankenstein's RV?
