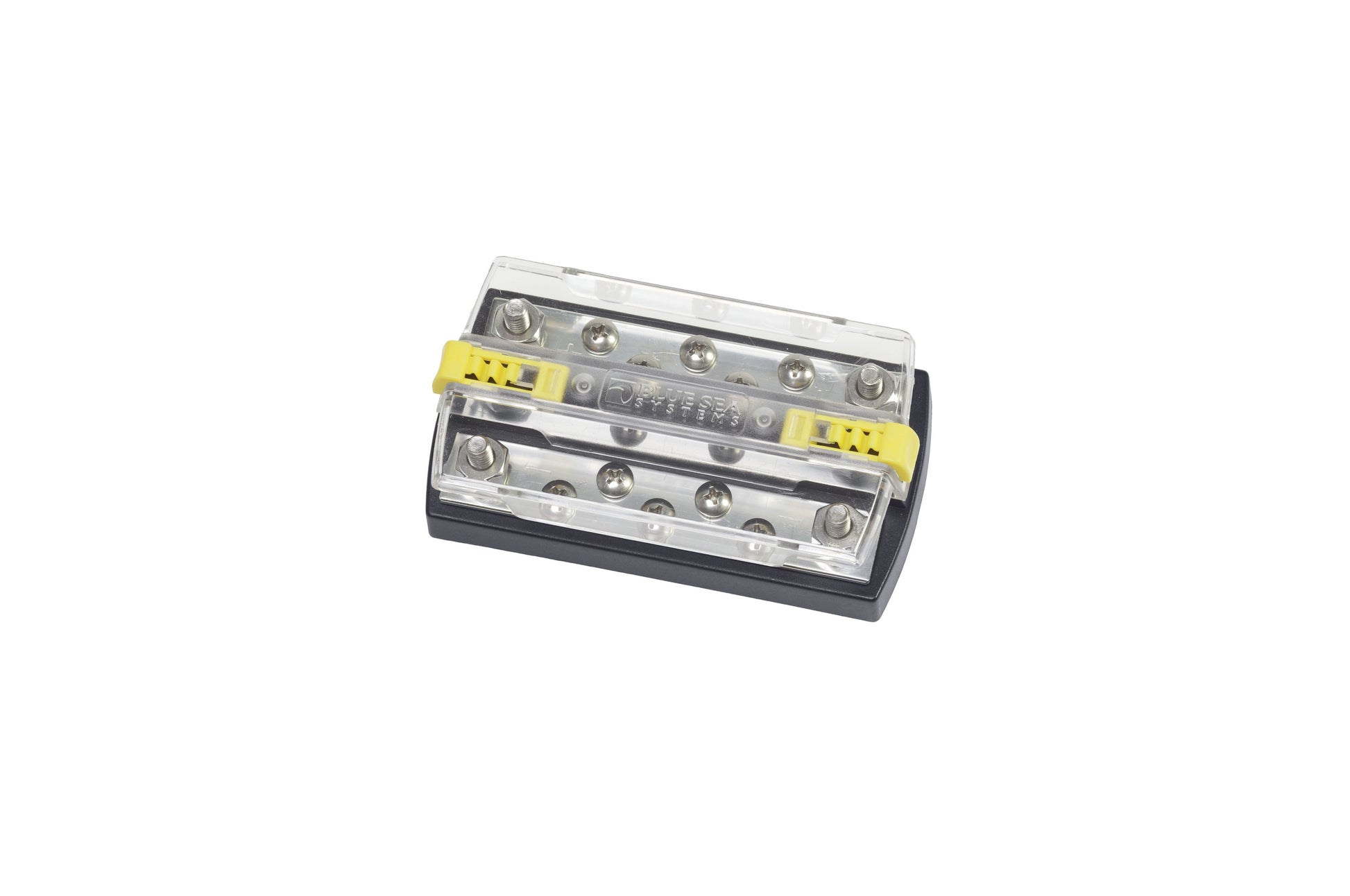

Blue Sea Systems 2722 DualBus 150A - Double 5 Gang

Max Voltage: 48V DC, 300V AC
Continuous Current: 150A DC, 130A AC

Busses: 2
Stud Size: 1/4in
Per Bus Stud Count: 2
Screw Terminal Size: #8
Per Bus Screw Terminal Count: 5
Mounting Hole Count: 2
Mounting Hole Size: #10
Cover is friction fit

Not all bus bars are created equal. The electrical grade copper in this bus bar is tin plated for corrosion resistance and the stainless studs are swedged into the copper with a 1 ton press. This means the studs and copper bus bar are essentially 1 piece of metal and do not require nuts to keep the studs mounted to the bus bar. The 10 screw terminals use captive star washers that bite into the ring terminal to ensure a secure connection. We recommend insulation of all bus bars, which is why this bus bar comes with a snap on cover, which you should always put on after wiring
