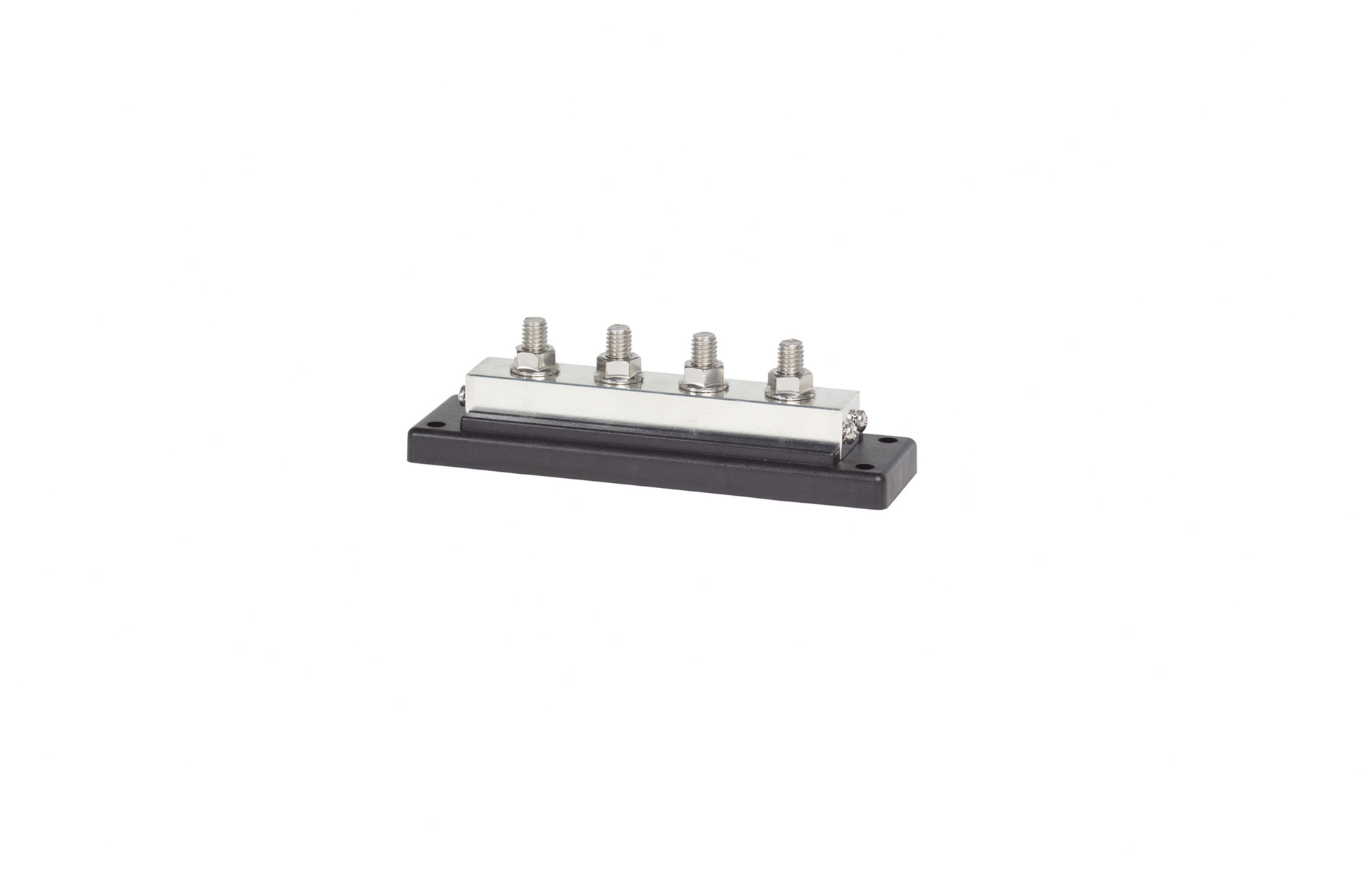

Blue Sea Systems 2104 Bus Bar 600A - Four 3/8in Studs

Max Voltage: 48V DC, 300V AC
Continuous Current: 600A DC, 545A AC

Stud Size: 3/8in
Stud Count: 4
Screw Terminal Size: #8
Screw Terminal Count: 4
Mounting Hole Count: 4
Mounting Hole Size: #10

Not all bus bars are created equal. You can feel the difference in your hands with the 2104. At nearly 2 pounds this bus bar is a solid bar of electrical grade copper. The copper is tin plated for corrosion resistance and the stainless studs are swedged into the copper with a 1 ton press. This means the studs and copper bus bar are essentially 1 piece of metal and do not require nuts to keep the studs mounted to the bus bar. Instead of nuts, flat washers, and lock washers this bus bar comes with flange nuts. Flange nuts are a nut with a flared base with ridges to grab the ring terminal. This replaces the nut, lock washer, flat washer issue and allows you to always install your ring terminals safely with just 1 fastener.
