Blue Sea Systems 1990 PowerBar 1000A Bus Bar 8 Stud 3/8in

Max Voltage: 150V (AC or DC)
Continuous Current: 1000A
Stud Size: 3/8in
Stud Count: 8
Stud Torque: 140 in-lb (15.82 Nm)
Screw Size Upper: #8-32
Screw Count Upper: 11
Screw Torque Upper: 15 in-lb (1.69 Nm)
Screw Size Lower: #10-32
Screw Count Lower: 5
Screw Torque Lower: 18 in-lb (2.03 Nm)
Weight: 6 lbs

Mounting Hole Count: 6
Mounting Hole Size: #10 (M5)

End caps can be used to join gang multiple Power Bar 1000s together. When joining them the electrical connection will be isolated.

Upper elevation is the same height as the Class T and ANL fuse blocks. Allowing simple connection via link bar.

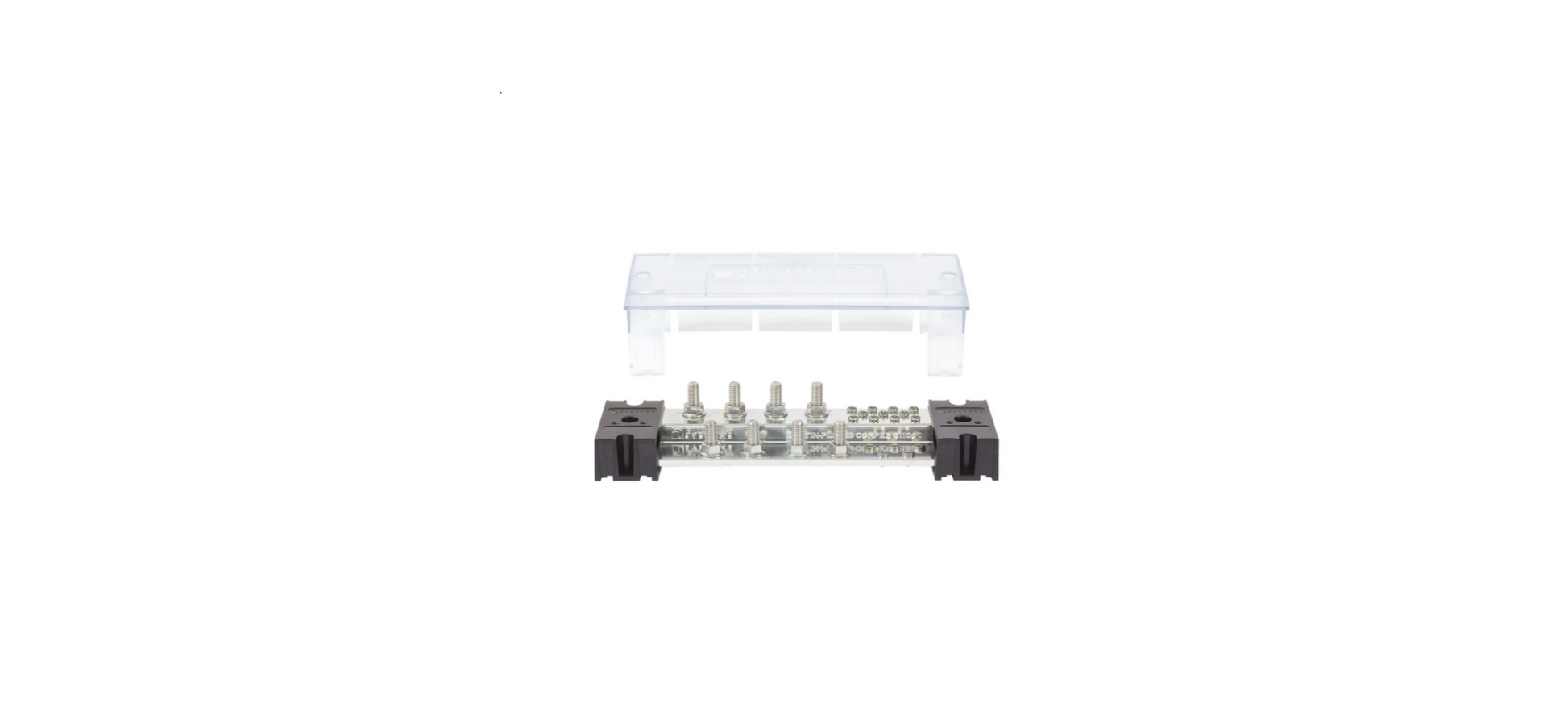

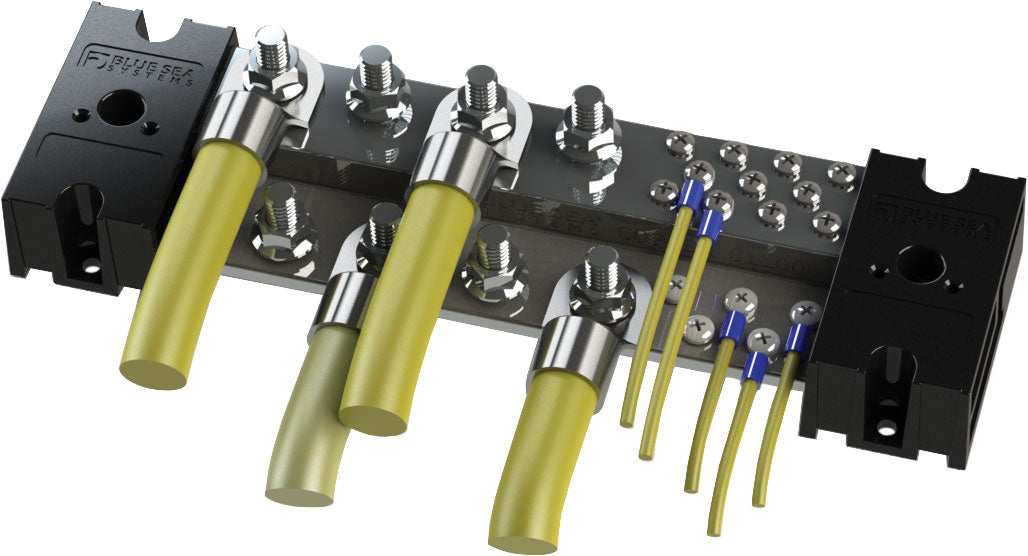

Not all bus bars are created equal. Honestly this is not a bus bar, it's a PowerBar! coming in at a whopping 6 pounds it's no surprise that this PowerBar can handle 1000A continuous. With studs and fasteners on 1 bar this allows you to easily connect large and small wires into one place, saving installation time. Ideal for paralleling large lithium battery banks. The included insulating cover make this bus bar safe to use for either positive or negative connections.

The copper is tin plated for corrosion resistance and the stainless studs are swedged into the copper with a 1 ton press. This means the studs and copper bus bar are essentially 1 piece of metal and do not require nuts to keep the studs mounted to the bus bar. Instead of nuts, flat washers, and lock washers this bus bar comes with flange nuts. Flange nuts are a nut with a flared base with ridges to grab the ring terminal. This replaces the nut, lock washer, flat washer issue and allows you to always install your ring terminals safely with just 1 fastener.
