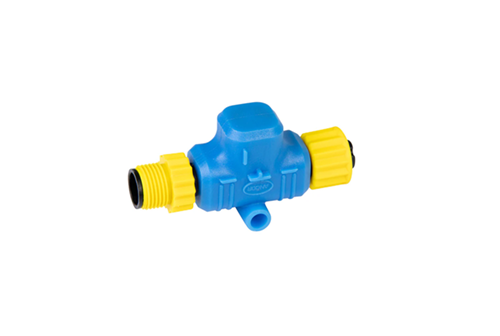

Ancor NMEA 2000 Power Isolator
Ancor NMEA 2000 Power Isolator
SKU:ANC270113
The Ancor NMEA 2000 Power Isolator isolates the electrical power between the left and right side of the connector. NMEA 2000 network data is still transmitted, only power is isolated.
Power isolation is commonly used when you want a portion of the network to be powered 24 hours and the other portion to be switched.
When using a power isolator you will have to have separate Power Tees on both sides of the isolator.
- NMEA 2000 approved
- Compatible with all NMEA 2000 devices and brands
Specifications
Specifications
Connects between backbone connections, either 2 tees or a mix of tees and backbone cables.
Installation Details
Installation Details
Recommended Mounting Fastener (Not Included)
Size: #10 or #12
Length: 1.25 to 1.5in
Type: Pan Head
Pelagic Power Tip
Pelagic Power Tip
Power isolation is commonly used when you want a portion of the network to be powered 24 hours and the other portion to be switched on and off.
Whenever using a power isolator you will have to have separate Power Tees on both sides of the isolator or the network will not function.
Even though there is an isolator in the network you will only have 1 network so you will still only need 2 terminating resistors to cap the entire network.
